Tannoy VQ 64MH

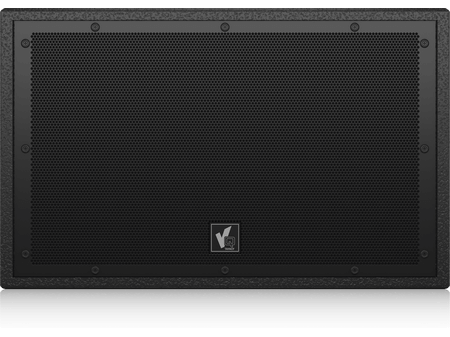

The VQ 64MH is the mid-high element of Tannoy's large format VQ install range, built around a Dual Concentric driver with a 3.5 inch diaphragm compression driver for mid and high frequency reproduction. Point source behaviour is what makes several of these array predictably.\n\nPower handling is 200 W continuous and 800 W peak. The modular VQ approach lets a system designer tight pack cabinets into a seamless array, and the mid-high module pairs with a VQ MB to extend low frequency pattern control.
| Frequency response (-3 dB) | 400 Hz - 23 kHz |
|---|---|
| Frequency range (-10 dB) | 350 Hz - 27 kHz |
| Sensitivity (1 W @ 1 m) | 60 x 40 degrees |
| Driver components | N/A MF/HF - dual concentric compression driver loaded into single PSW waveguide |
| Crossover | Single amplified - 7 kHz (passive) Bi-amp - 7 kHz (active) |
| Directivity factor (Q) | 21.3 |
| Directivity index (DI) | 13.3 |
| Maximum SPL | 138 dB averaged, 144 peak |
