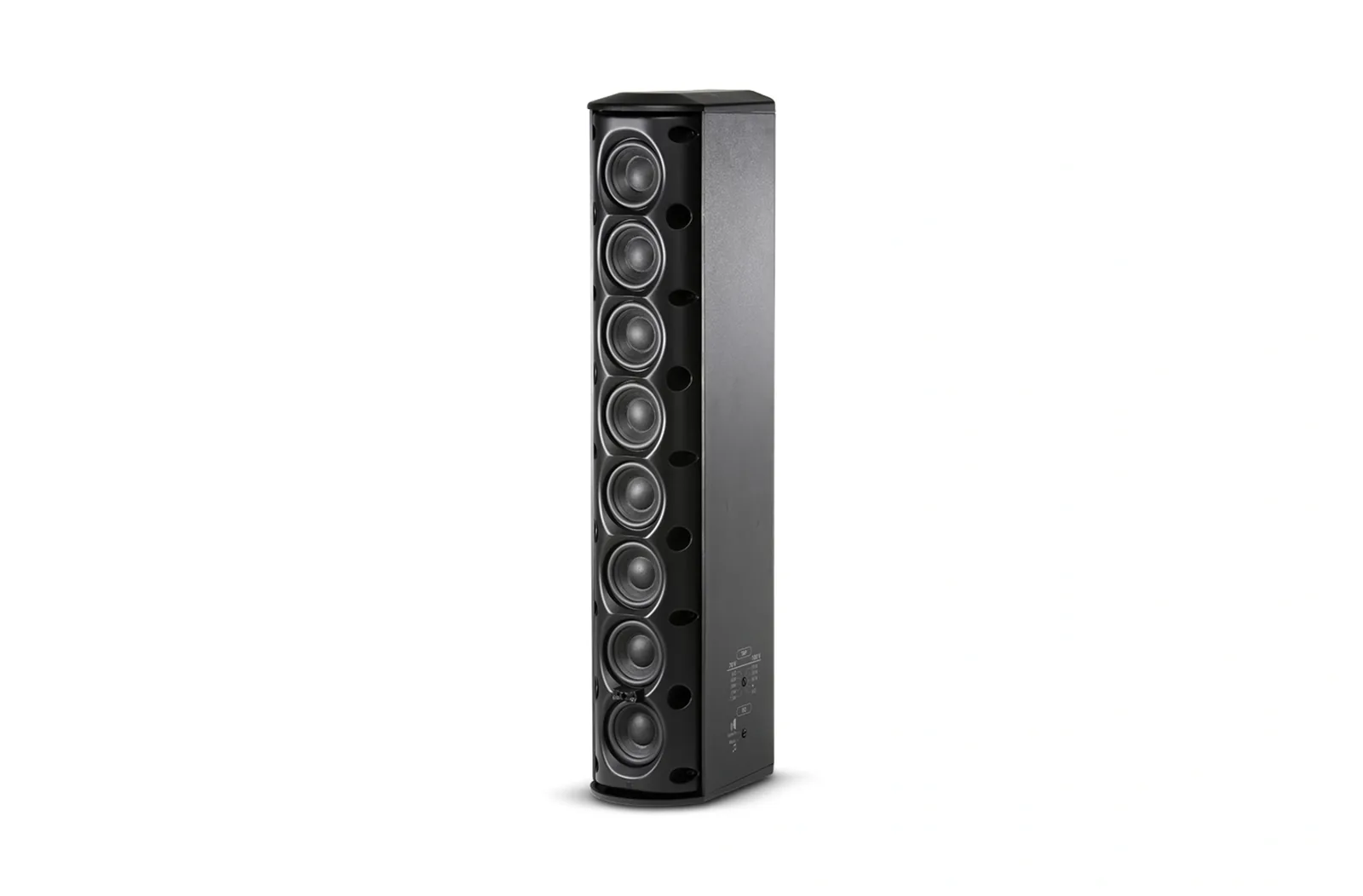

JBL CBT 50LA-LS Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers and EN54:24 Certification
The CBT 50LA-LS is a line array column loudspeaker with eight 50 mm (2 in) drivers and EN54:24 certification, from JBL's Constant Beamwidth Technology column range. Transducers are Eight 50 mm(2 in) Full-Range. Nominal coverage is Vertical: 20 degrees (1.5 kHz - 16 kHz, +/-10 degrees ) Horizontal: 150 degrees (ave, 1 kHz - 4 kHz, +/-20 degrees ). Frequency range is 120 Hz - 20 kHz.
Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice. Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing. EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover).
| Type | Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers and EN54:24 Certification |
|---|---|
| Drivers | Eight 50 mm(2 in) Full-Range |
| Frequency Range (-10dB) | 120 Hz - 20 kHz |
| Coverage Pattern | Vertical: 20 degrees (1.5 kHz - 16 kHz, +/-10 degrees ) Horizontal: 150 degrees (ave, 1 kHz - 4 kHz, +/-20 degrees ) |
| Coverage Angle | Frequency (kHz) |
| 0.5 kHz | 360 degrees |
| 1 kHz | 247 degrees |
| 2 kHz | 194 degrees |
| 4 kHz | 135 degrees |
