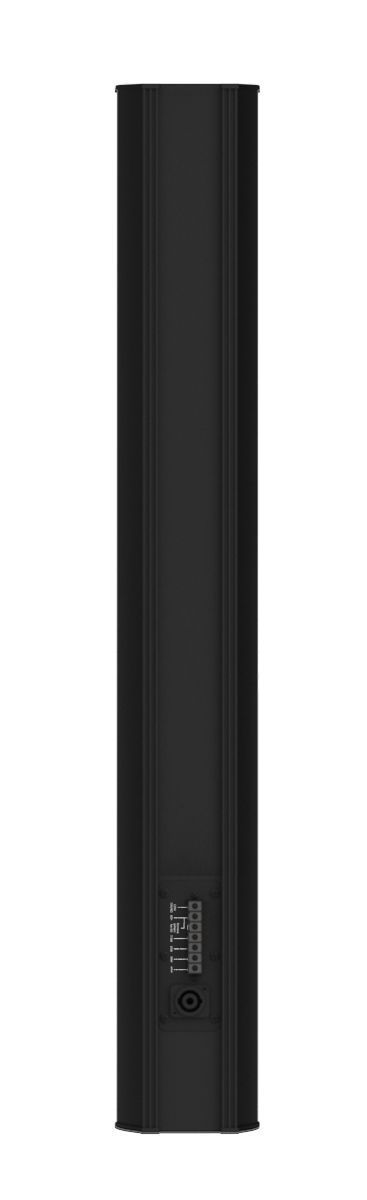

AtlasIED ALA10T-B 10 Speaker Full Range Line Array Speaker System - Black
The AtlasIED ALA10T-B is a 10 speaker full range line array speaker system - black. The ALA10T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10T-B's transducer configuration combines ten tight packed 3" full range drivers and four 25mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. Published frequency response is 125Hz - 20kHz.
The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. AtlasIED lists 45° vertical coverage; 135° horizontal coverage; ten (10) proprietary 3" (76mm) full range drivers; four (4) high frequency tweeters. It measures 32.9" (835.7mm) high, 4.61" (117mm) wide, and 5.43" (137.9mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | ALA10T-B |
|---|---|
| 70.7V Power Taps | 7.5, 15, 30, & 60 Watts |
| Dispersion | 135° H x 40° V |
| Sensitivity | 96dB 1W/1m |
| Frequency Response | 125Hz - 20kHz |
| Height | 32.9" (835.7mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Warranty Period | 60 months from date of purchase |
