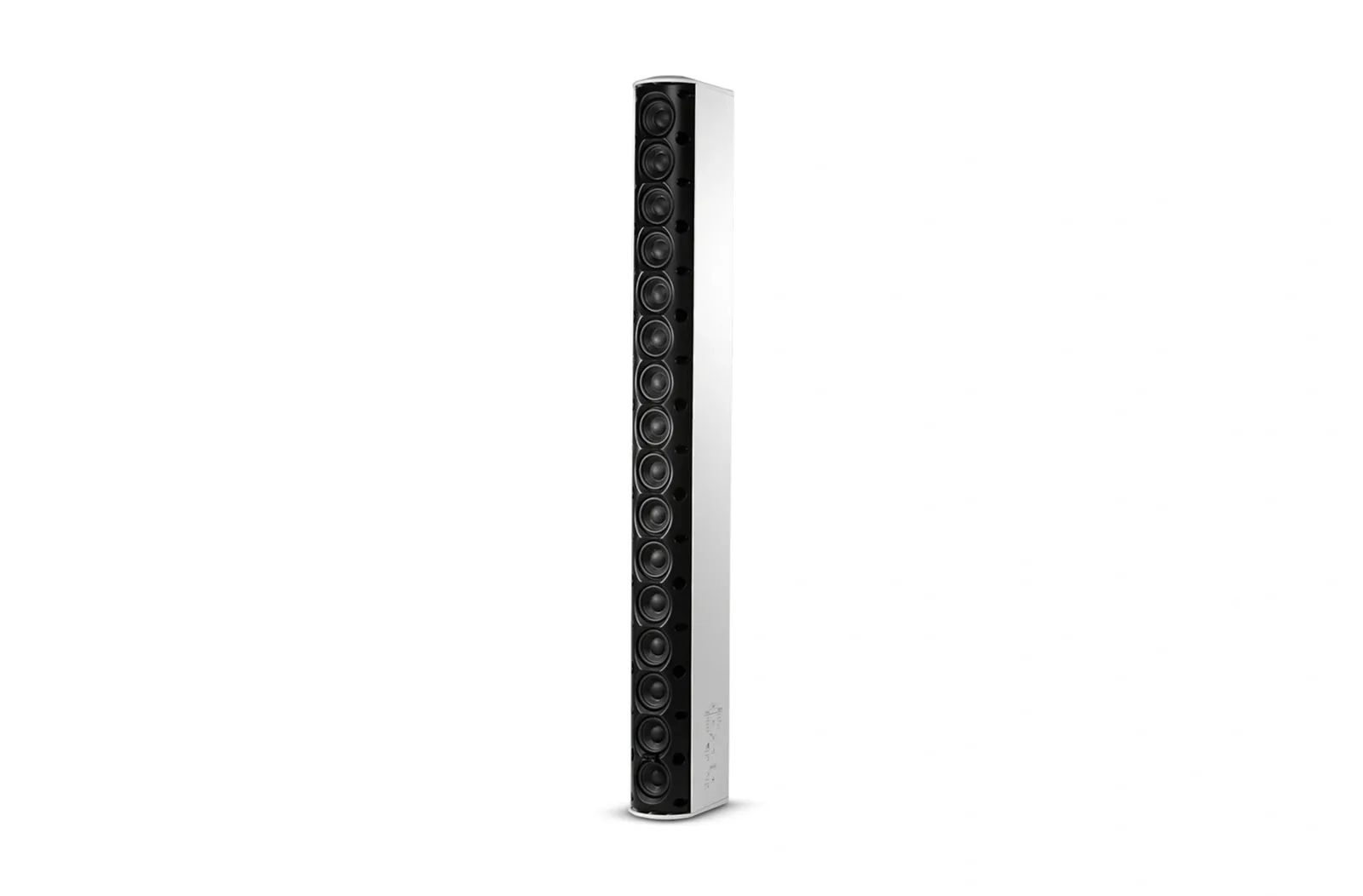

JBL CBT 100LA-LS Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 100LA-LS is a line array column loudspeaker with sixteen 50 mm (2 in) drivers and EN54:24 certification, from JBL's Constant Beamwidth Technology column range. Transducers are Sixteen 50 mm (2 in) Full-Range. Nominal coverage is In Music Voicing, Broad Vertical Switch Settings: Frequency (kHz). Frequency range is 120 Hz - 20 kHz.

Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice. Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing. EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover).

  • Dimensions1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
  • Frequency Range (-10dB)120 Hz - 20 kHz
  • Power handling325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
  • Weight7.2 kg (15.8 lb)
  • DriversSixteen 50 mm (2 in) Full-Range
TypeLine Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification
DriversSixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB)120 Hz - 20 kHz
Coverage AngleIn Music Voicing, Broad Vertical Switch Settings: Frequency (kHz)
0.5 kHz360 degrees
1 kHz247 degrees
2 kHz194 degrees
4 kHz135 degrees
Power handling325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
Max SPL92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
Dimensions1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Weight7.2 kg (15.8 lb)
