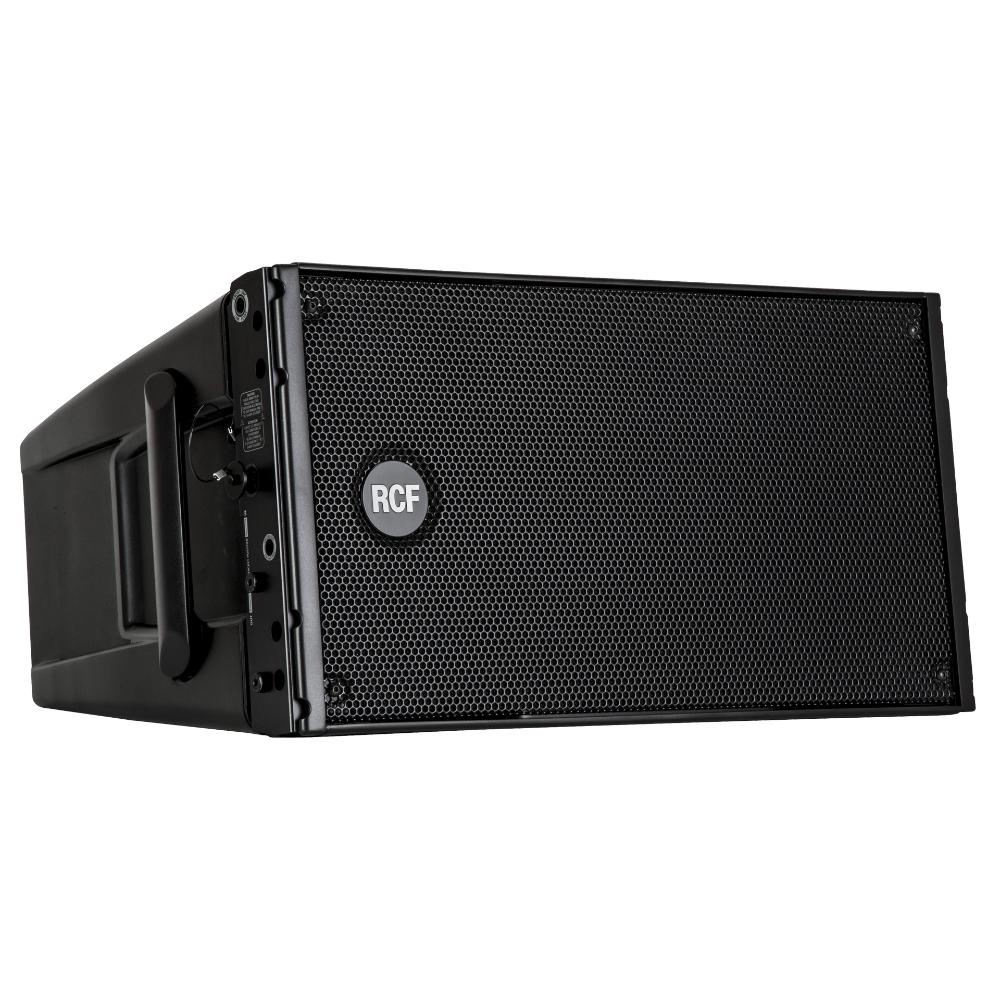

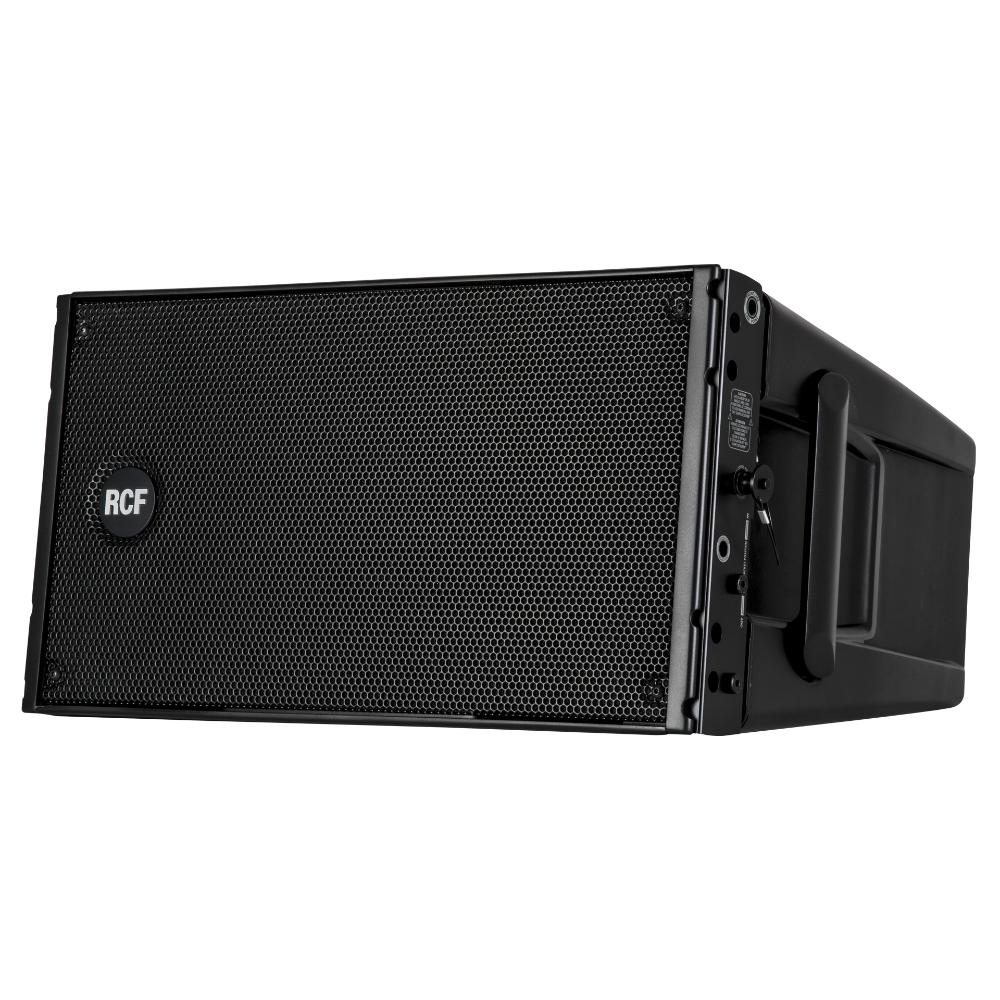

RCF HDL 10-A Line Array Module

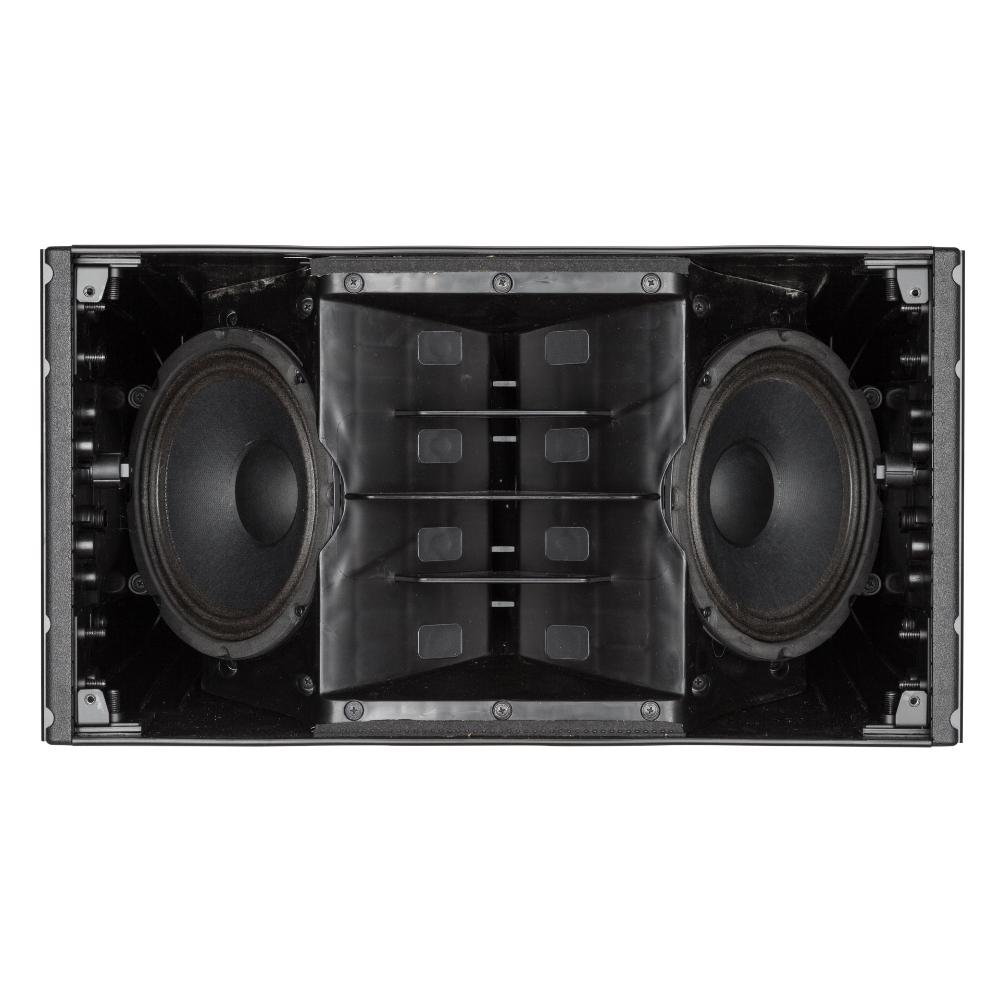

The HDL 10-A steps up from the 6-A with two 8-inch woofers and a 2-inch compression driver on a 2.5-inch voice coil, reaching 133 dB SPL across 65 Hz to 20 kHz for live reinforcement and installs that need more output per module. The 100 by 15 degree pattern is built for vertical arraying, and the same 1400W peak Class-D amplifier (1000W LF, 400W HF) drives it.

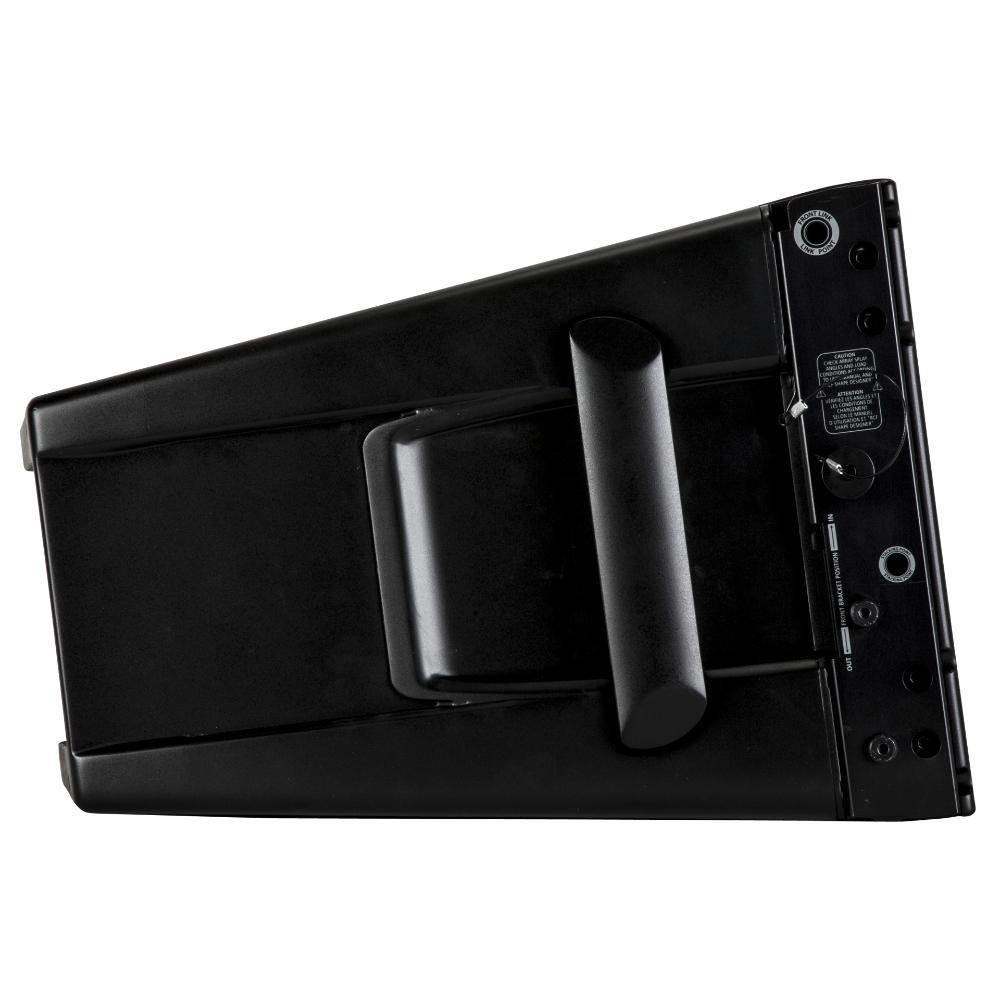

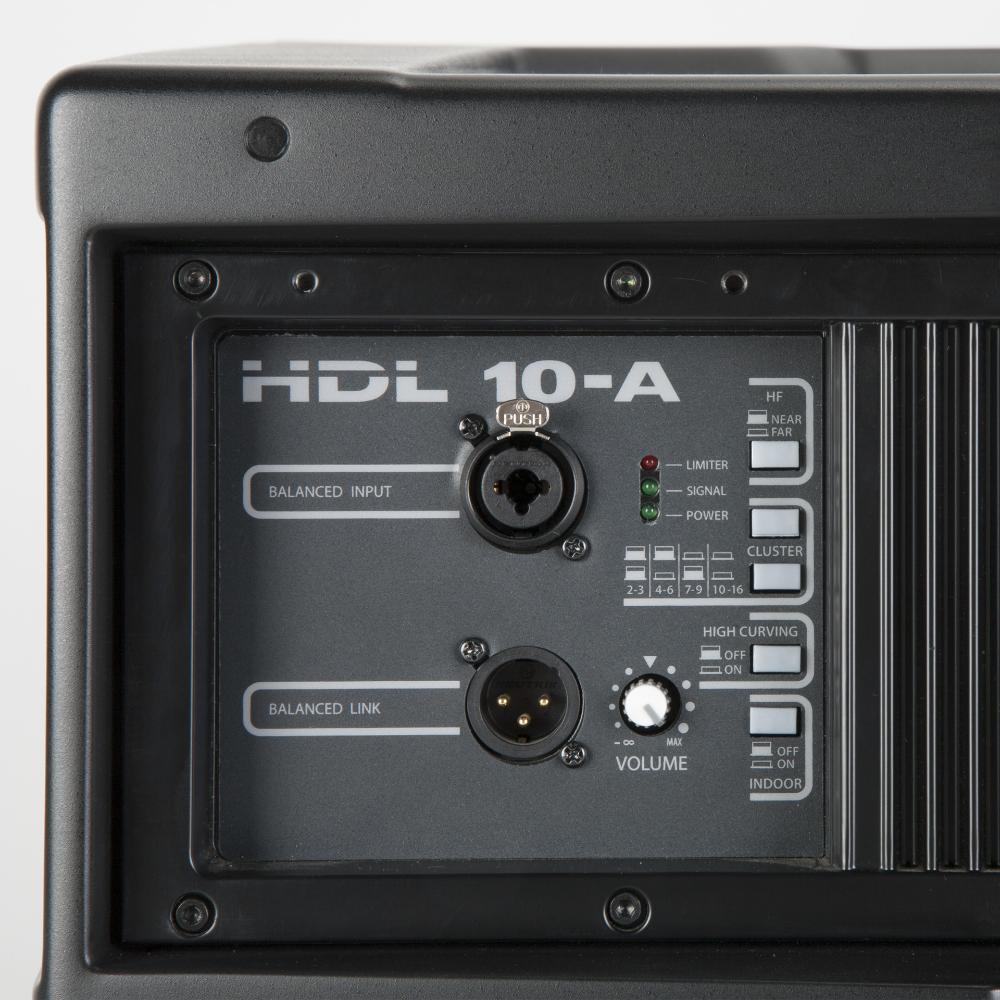

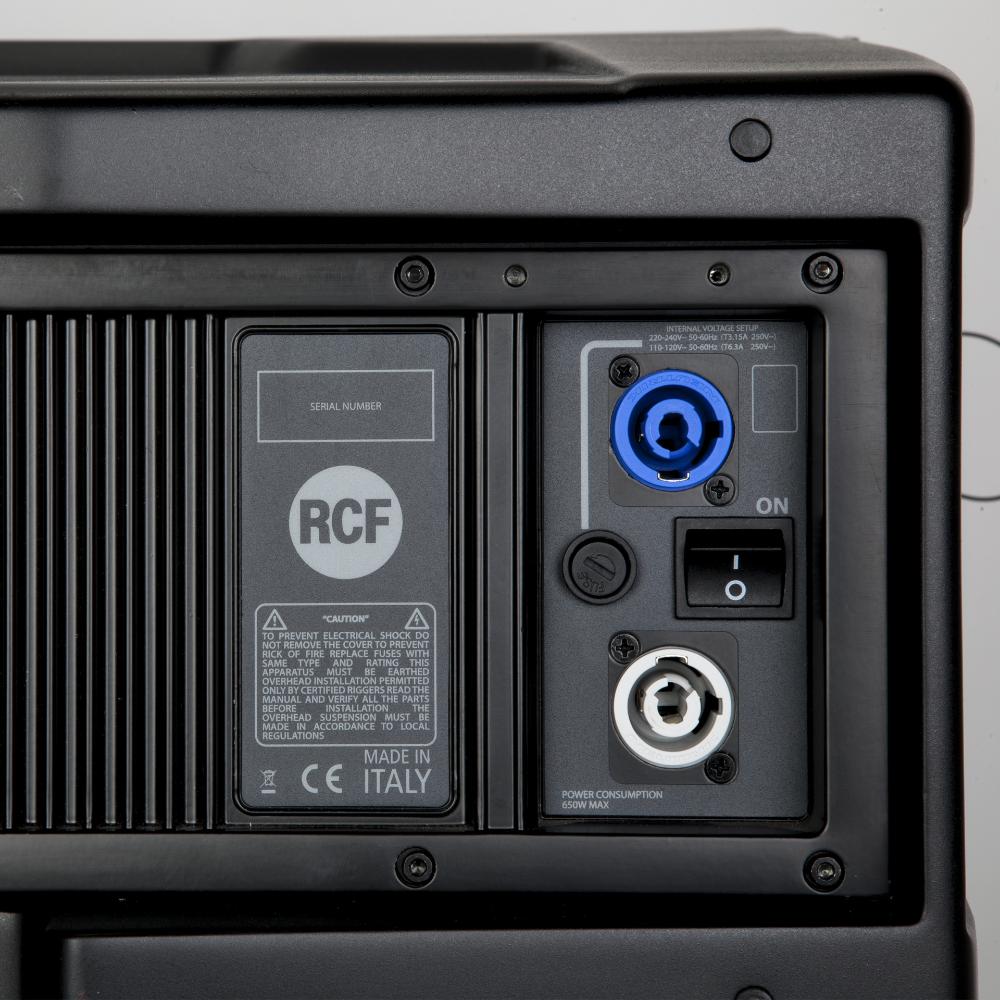

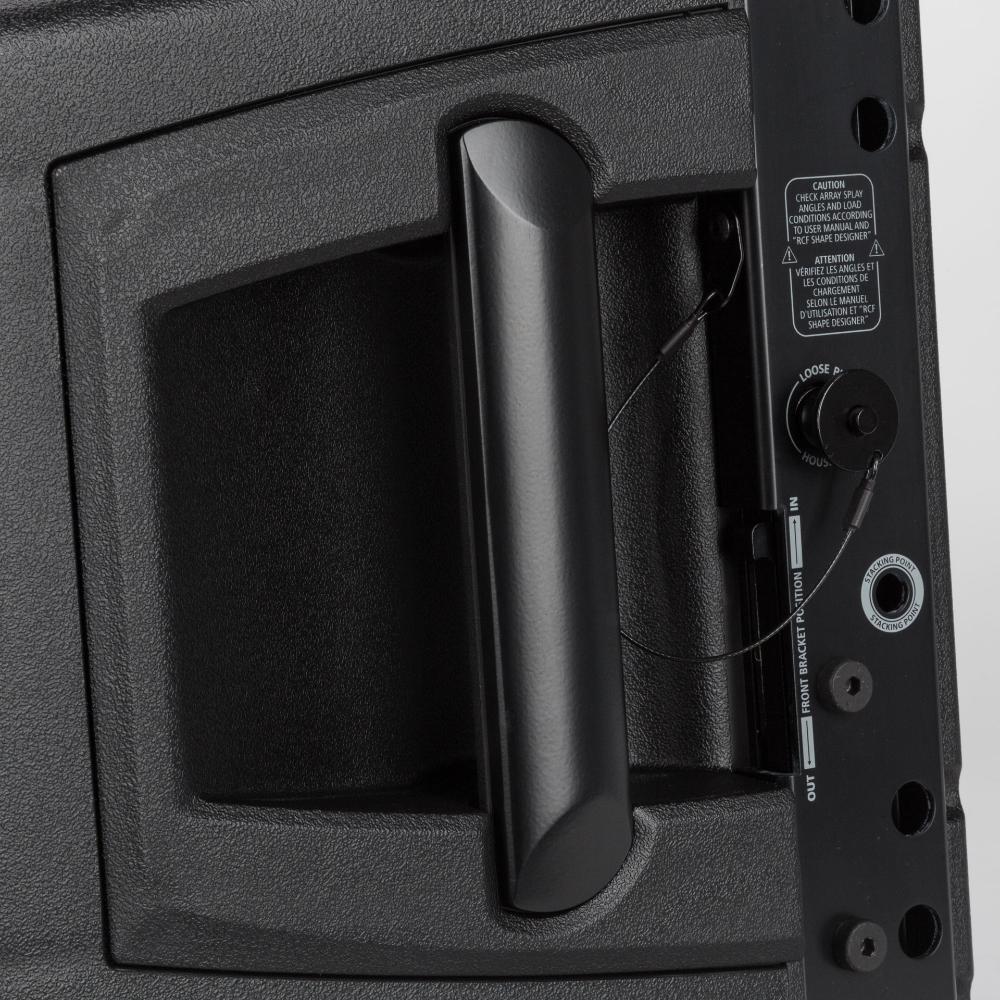

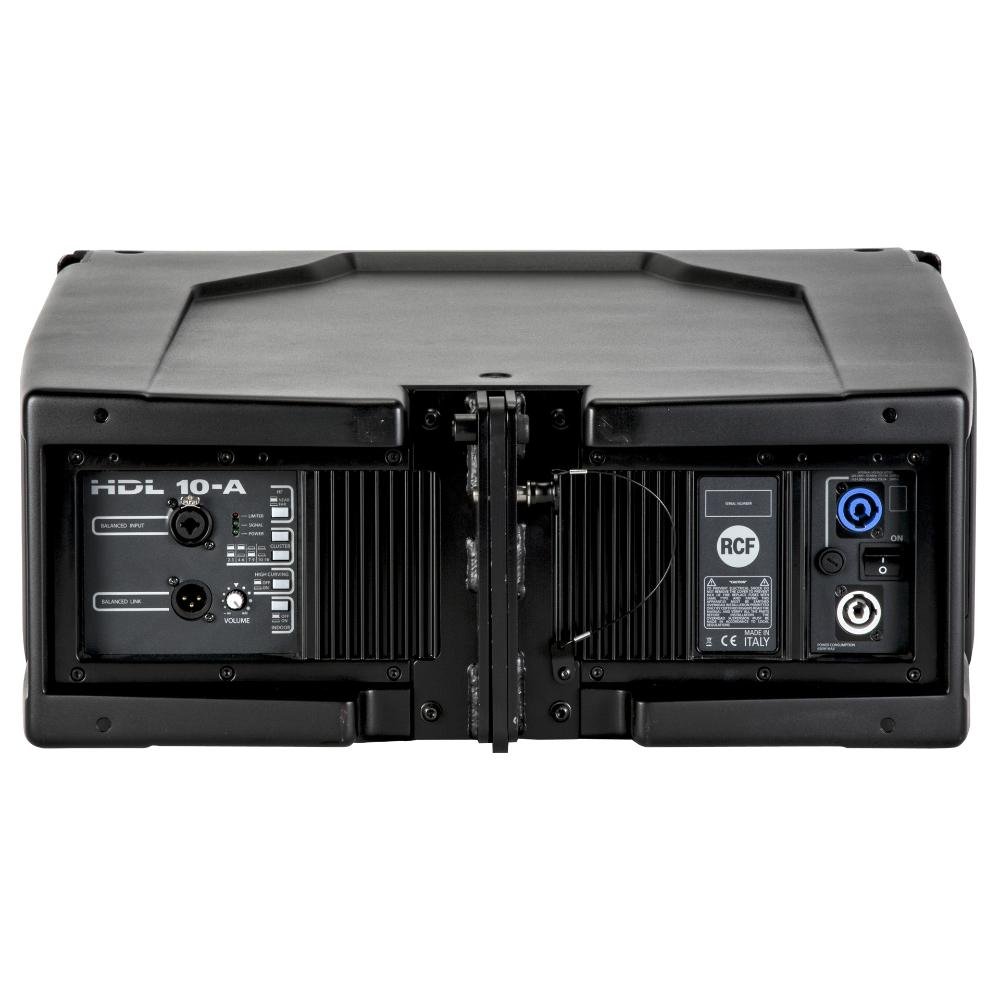

The PP composite cabinet with wooden reinforcement keeps each 20.4 kg module manageable for a rigging crew, and Powercon in/out with XLR audio connectors make it simple to chain a full array. It ships in black or white.
