AtlasIED ALA15T 15 Speaker Full Range Line Array Speaker System
The AtlasIED ALA15T is a 15 speaker full range line array speaker system. The ALA15T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15T's transducer configuration combines fifteen tight packed 3" full range drivers and four 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. Published frequency response is 90Hz - 20kHz.

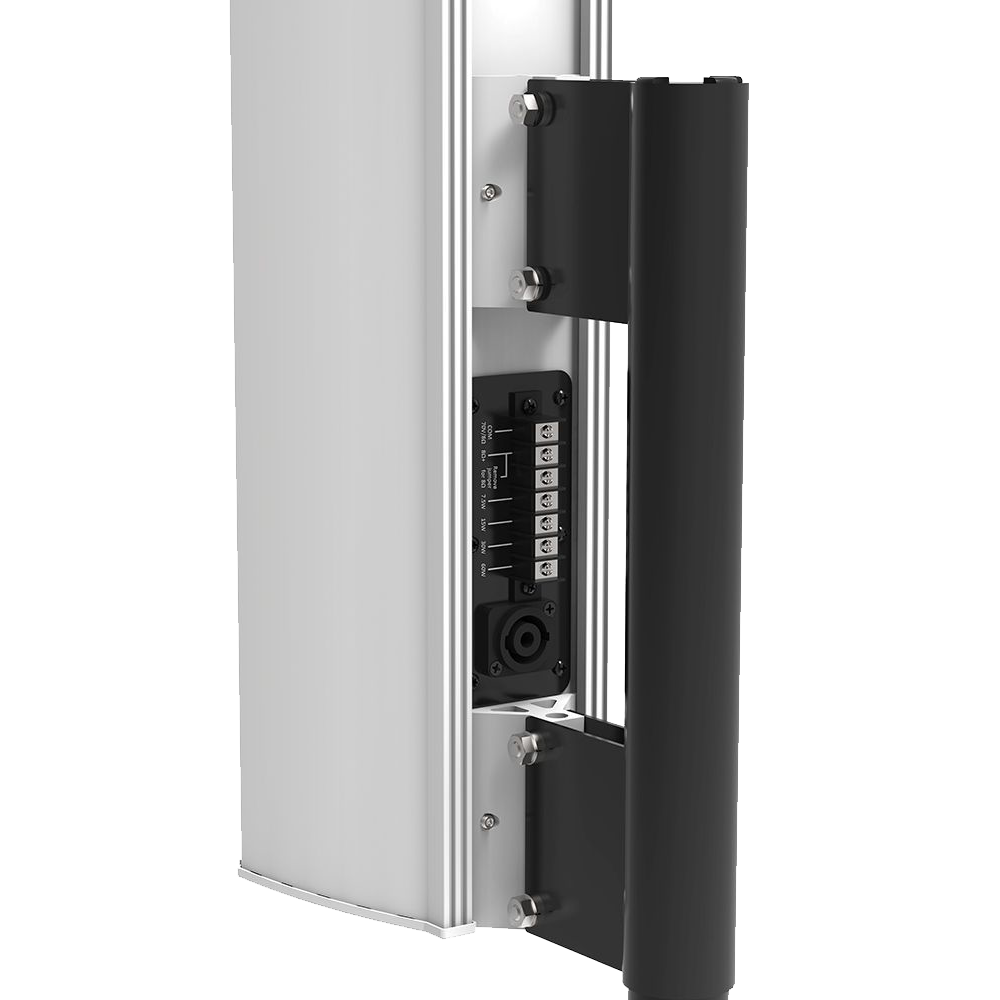

The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. AtlasIED lists 45° vertical coverage; 135° horizontal coverage; fifteen (15) proprietary 3" (76mm) full range drivers; four (4) high frequency tweeters. It measures 49.37" (1254mm) high, 4.61" (117mm) wide, and 5.43" (137.9mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | ALA15T |
|---|---|
| 8Ω RMS Power | 250 Watts |
| 70.7V Power Taps | 7.5, 15, 30, & 60 Watts |
| Dispersion | 135° H x 40° V |
| Sensitivity | 96dB 1W/1m |
| Frequency Response | 90Hz - 20kHz |
| Height | 49.37" (1254mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Warranty Period | 60 months from date of purchase |
