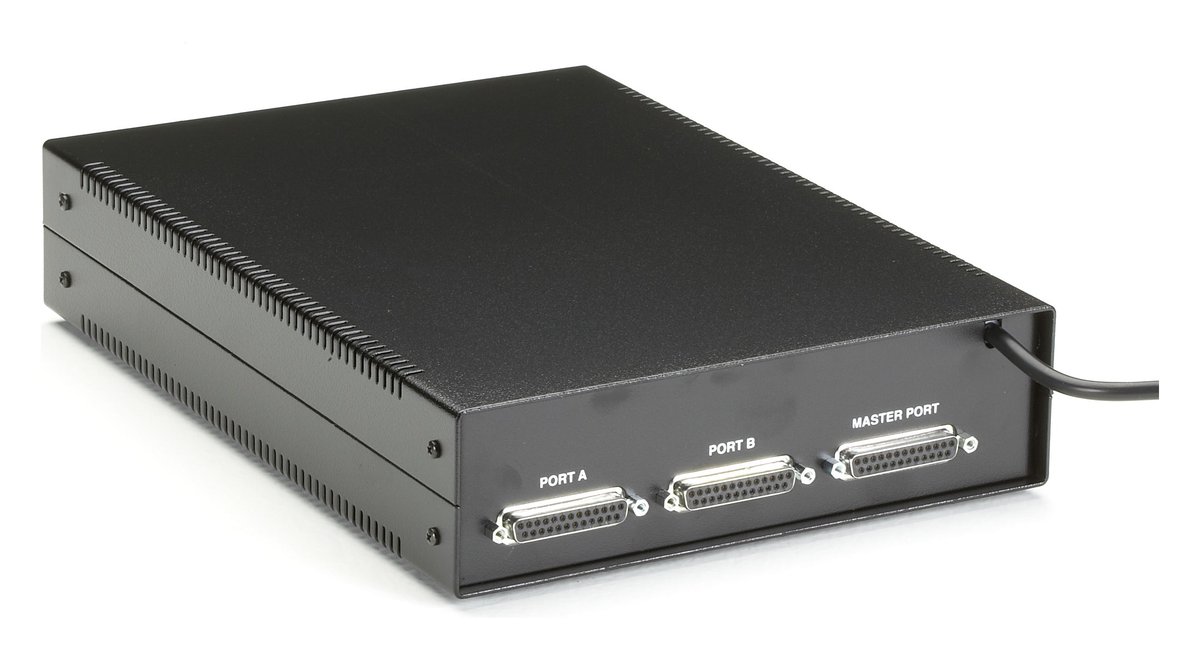

Black Box TL601A-R2 RS232 Data Sharer - 2-Port

The TL601A-R2 handles the serial side of an installation: 2-Port. Interface: RS-232 (master port DTE, slave ports DCE). Connectors are (3) DB25 (Female).

Power: 115 VAC, 60 Hz (230-VAC versions on request). It measures 2.5-in. H x 8.1-in. W x 11.3-in. D (6.4 x 20.6 x 28.7-cm) and weighs 2.4-lb. (1.09-kg). Front-panel indication: (6): PWR, RTS A, RTS B, CD, CTS, RXD.

Interface	RS-232 (master port DTE, slave ports DCE)
Connectors	(3) DB25 (Female)
Leads Supported	8, 15, 17, 20, 22
Operation	Full- or half-duplex
Indicators	(6): PWR, RTS A, RTS B, CD, CTS, RXD
Power	115 VAC, 60 Hz (230-VAC versions on request)
Dimensions	2.5-in. H x 8.1-in. W x 11.3-in. D (6.4 x 20.6 x 28.7-cm)
Weight	2.4-lb. (1.09-kg)
