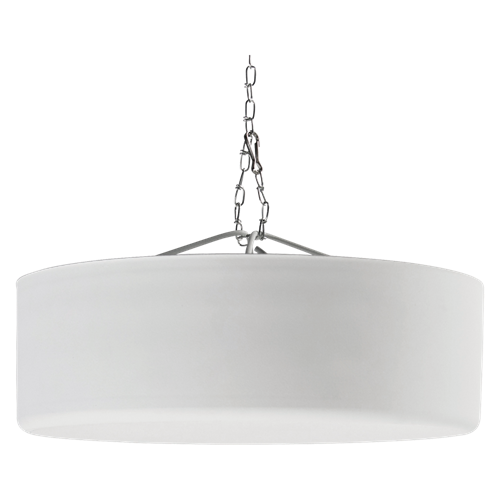

AtlasIED M1000R-W 8" Dual Cone Sound Masking Speaker with 4-Watt 70V Transformer and Enclosure - White and Round
The AtlasIED M1000R-W is an 8" dual cone sound masking speaker with 4-watt 70V transformer and enclosure - white and round. The M1000R-W is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead.
A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. AtlasIED lists sleek, round appearance designed for mounting in open plenum areas where speakers may be visible; balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included); fully assembled package includes 8" transducer with high quality line matching transformer; 0.25 to 4 watt (@70.7V) power selection (plus OFF) via external switch. It measures 3.937" (100mm) high. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | M1000R-W |
|---|---|
| Loudspeaker | 8" Dual Cone |
| 70.7V Power Taps | .25, .5, 1, 2, 4 Watts |
| Enclosure Volume | 382in³ (6.26 ltrs.) |
| Height | 3.937" (100mm) |
| Outside Diameter | 12.992" (330mm) |
| Weight | 9.2lbs (4.17kg) |
| Warranty Period | 60 months from date of purchase |
