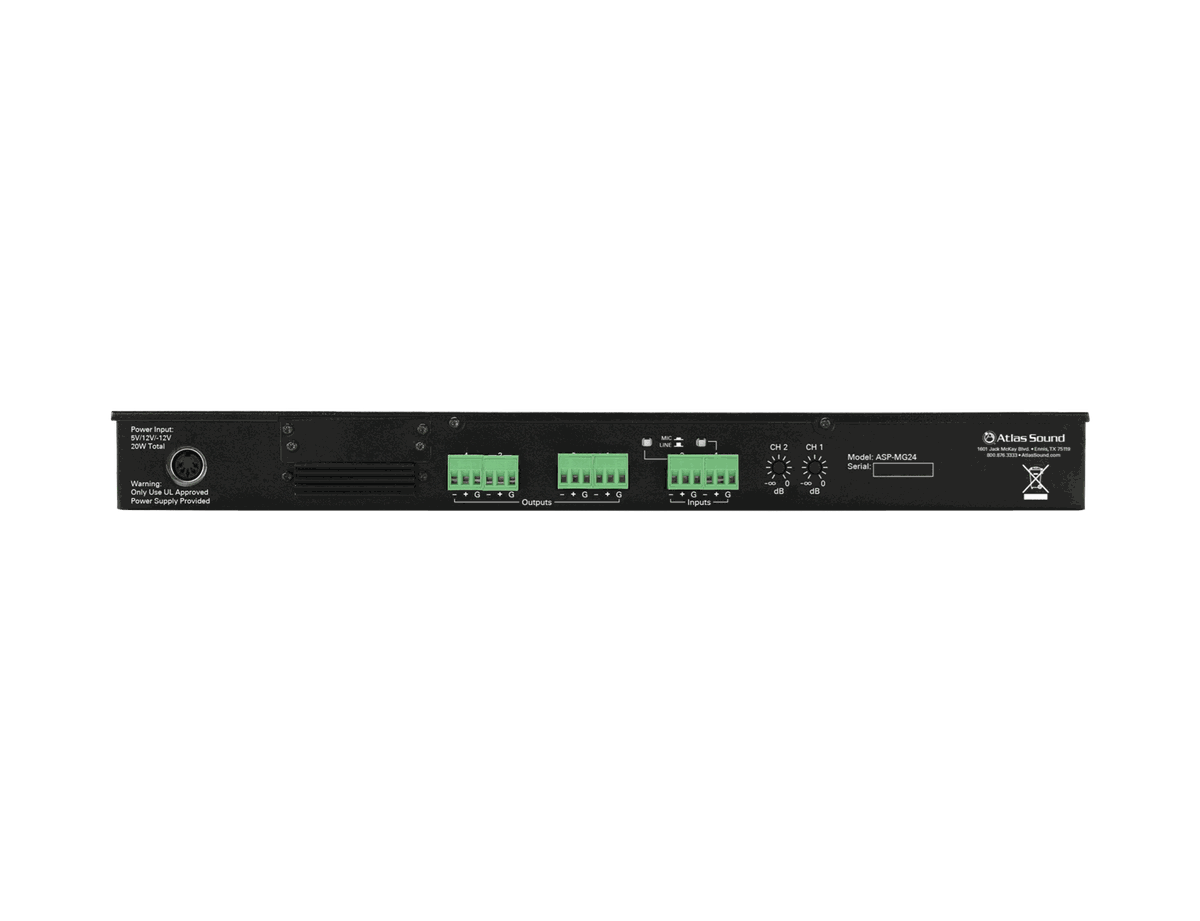

AtlasIED ASP-MG24 Sound Masking Processor / Speaker Controller

The ASP-MG24 is a 1RU sound masking processor and speaker controller with four independent white/pink noise generators feeding adjustable-ramp masking across four output channels. Two mic or line inputs let paging or background music blend directly into the masking bed instead of running a separate distribution system.

Each generator output passes through its own 1/3-octave filter set, and 8-band parametric EQ blocks with dynamic control shape the mic/line inputs. USB and RS-232 connectivity handle configuration, and the unit doubles as a speaker processor tuned for AtlasIED's FAP ceiling speakers, SM surface-mount speakers, and AH stadium horns.
