Williams AV Wall/Ceiling IR Mounting Bracket - Black

The Williams AV BKT 024. Omnidirectional wall or ceiling mounting bracket. Use with IR E4, IR T3, and IR T2.

Williams AV builds for install: the transmitters rack, the receivers charge in bays rather than one at a time, and the earphones and neckloops are replaceable parts rather than a sealed accessory. Ordered as part number BKT 024. Published dimensions, power and warranty are in the specifications tab.

Part NumberBKT 024
CategoryAccessories, Accessories, Mounts & Stands, ProAV

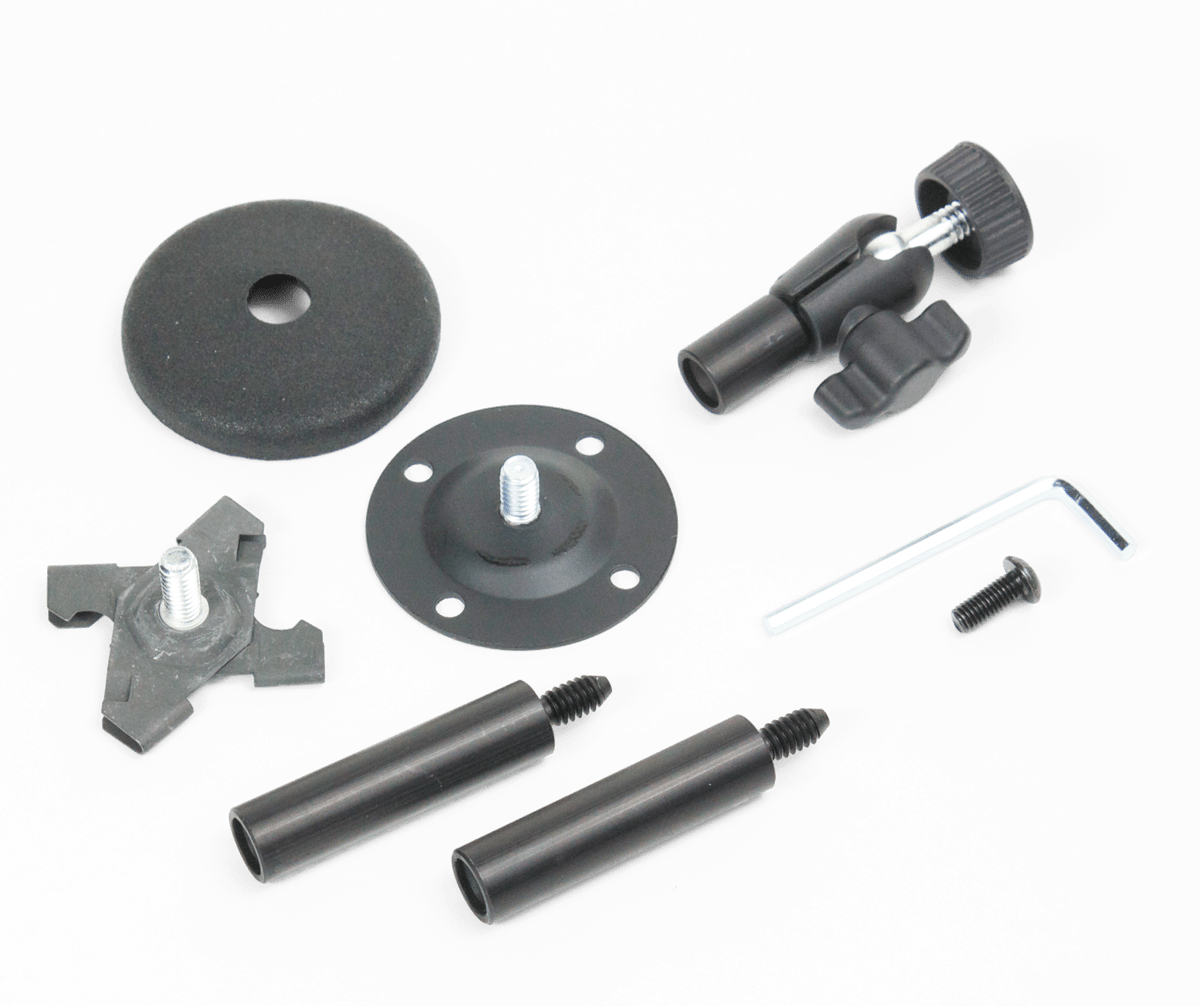

Base 12" (50.8 mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle for solid surface mounting
Base 2T-Bar Clip for drop ceiling rails
Base CoverBlack Vinyl, covers either base
ShaftsTwo 0.5" (12.7mm) diameter, 2" (50.8mm long aluminum, black. 1/4-20 stud with lock ring.
Head190 deg Tilt, 360 deg Turn [&] 360 deg Rotation
Finished Lengths2", 4" or 6"
Polar PatternOmnidirectional
BrandWilliams AV
