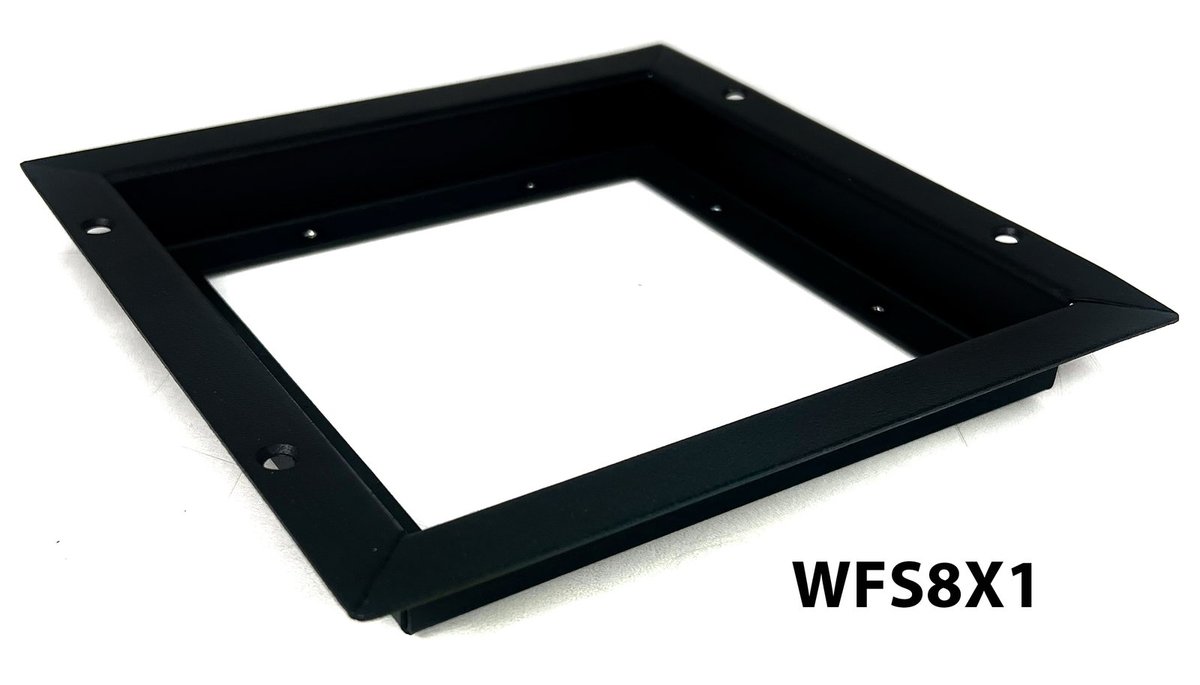

Whirlwind WFS Surface Mount Wall Frame

These patent-pending wall frame assemblies use recessed panels to give connectors greater protection while improving how the installation looks. Surface mount is the version for walls where you cannot bury a box.

Two sizes fit 8 by 8 in. and 12 by 12 in. standard NEMA Type 1 electrical back boxes, in two standard connector panel recess depths of 1 in. and 2.5 in. Note that the 12 in. frame with a locking door is available as a flush mount version only.

Type	Surface mount connector wall frame
Recess depths	1 in. and 2.5 in.
Sizes	Fits 8 x 8 in. and 12 x 12 in. NEMA Type 1 back boxes
Benefit	Recessed panel protects connectors
Status	Patent pending
Locking door	Available on the 12 in. frame in flush mount only
