Wooden Camera Universal Lens Support (19mm/15mm Studio)

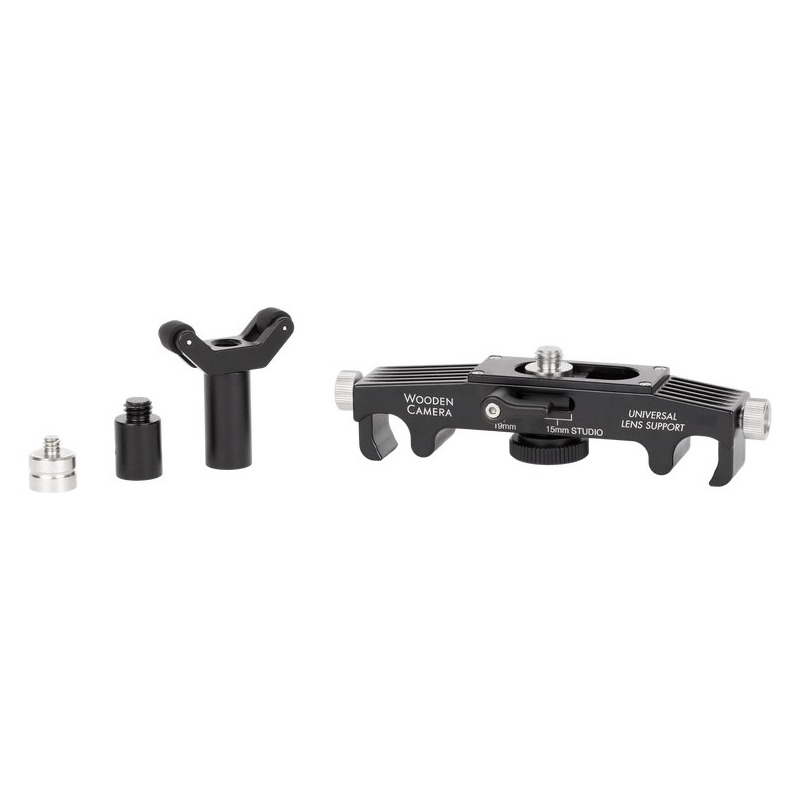

The Universal Lens Support (19mm/15mm Studio) is a rod component from Wooden Camera. Convertible between both studio rod standards. Unlock thumbscrew to move from centered 19mm support to 15mm studio offset. Includes 1/4"-20 cap for attaching to tripod collars and some cinema lenses, 3/8"-16 for attaching to most cinema lenses with standard support foot, and rolling Y bracket for attaching to DSLR type lenses where no support foot is available. Rubber wheels also allow for positioning under rotating focus barrels when necessary.

It weighs 208g (0.5 lbs). It mounts via 1/4"-20, 3/8"-16, 15mm rod, 19mm rod.

TypeRod Components
Compatibility19mm/15mm Studio
Weight208g (0.5 lbs)
Dimensions142.8 x 40.9 x 34.6 mm (5.6 x 1.6 x 1.4 in)
Mounting / Interface1/4"-20, 3/8"-16, 15mm rod, 19mm rod
Manufacturer Part Number175500
Universal Lens Support (15mm LW) & (19mm/15mm Studio)
