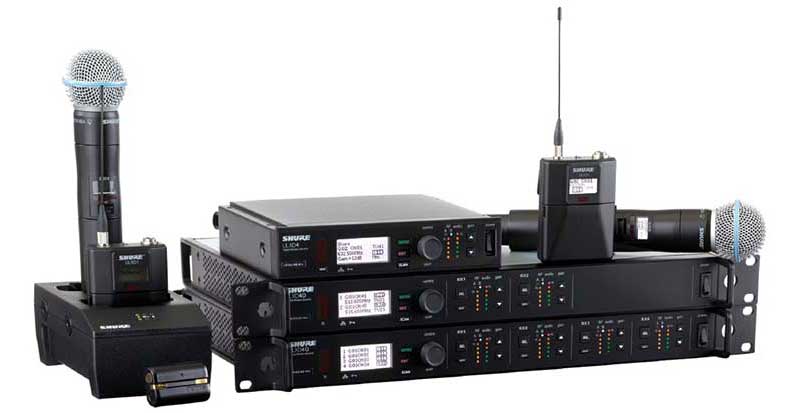

Shure ULX-D Digital Wireless

ULX-D Wireless


Shure ULX-D™ Digital Wireless offers uncompromising 24-bit audio clarity and extremely efficient RF performance with single, dual, and quad channel receivers for any size professional sound reinforcement application.

Scalable, intelligent hardware delivers the best performing digital wireless available, with a wide selection of trusted Shure microphones to choose from. Unmatched spectrum efficiency enables a dramatic increase in the number of simultaneous active transmitters on one TV channel, with rock-solid signal over the entire range. Optional rechargeable accessories eliminate the need for disposable batteries while offering extended run time and metering accuracy in hours and minutes. For secure transmission, all ULX-D components include AES-256 encryption.

Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound reinforcement.

Features:

  • Uncompromising Digital Wireless Audio
    • 24-bit/48 kHz digital audio that delivers incredibly clear and accurate reproduction of the source material
    • 20 Hz-20 kHz frequency range with flat response
    • Greater than 120 dB dynamic range through the analog outputs
    • 130 dB dynamic range (typical) using Dante digital networked audio
    • 60 dB of adjustable system gain easily accessible from the receiver front panel
    • No transmitter gain adjustments needed: optimized for any input source
    • Wide selection of trusted Shure Microphones
  • Extremely Efficient and Reliable RF Performance
    • Up to 64 MHz overall tuning range (region dependent)
    • Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
    • High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
    • Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
    • Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
    • Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
  • Scalable, Intelligent Hardware
    • Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
    • AES 256-bit encryption equipped for secure wireless transmission
    • Ethernet networking for streamlined setup across multiple receivers
    • Wireless Workbench® 6 software compatible for advanced frequency coordination, monitoring, and control
    • Comprehensive 3rd party control and monitoring across subnets
    • AXT600 Axient® Spectrum Manager compatibility
    • Rugged metal housing on both transmitters and receiver
    • Dual and Quad receivers additionally feature:
      • RF cascade ports, internal power supply, and dual Ethernet ports
      • Dante digital networked audio over Ethernet
      • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
      • Audio summing routes audio signal to multiple outputs
  • Shure Advanced Power Management
    • Adapted from industry-leading Axient rechargeable technology
    • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
    • Provides ULX-D transmitters with unmatched 11+ hours of performance time
    • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
    • AA backwards compatibility
  • Available bands:
    • G50 (470.12 - 533.92 MHz)
    • H50 (534.000 - 597.920 MHz)
    • V50 (174.120 - 215.820 MHz)
    • X52 (902.450 - 927.550 MHz)

Please let us know if you need a particular frequency band by writing in the COMMENTS BOX when you check out, otherwise we will select the best band based on your zip code.

Shure ULX-D User Guide



Components

Model Image Description Pricing
ULXD1 Shure ULXD1 Bodypack
The ULXD1 is a wireless bodypack transmitter compatible with ULX-D® Digital Wireless Systems.

With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.


Features:
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout
  • $445
    ULXD2/SM58 Shure ULXD2/SM58 Wireless Handheld Mic
    The ULXD2/SM58 Cardioid Dynamic Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.

    The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.


    Features:
  • Cardioid pickup pattern
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • $474
    ULXD2/SM86 Shure ULXD2/SM86 Wireless Handheld Mic
    The ULXD2/SM86 Cardioid Condenser Handheld Wireless Microphone works with ULX-D Wireless Systems.

    Features:
  • Cardioid pickup pattern
  • AES 256-bit encryption for secure transmission
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • $554
    ULXD2/SM87 Shure ULXD2/SM87 Wireless Handheld Mic
    The ULXD2/SM87 Supercardioid Condenser Handheld Wireless Microphone works with ULX-D Wireless Systems.

    Features:
  • Supercardioid pickup pattern
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • AES 256-bit encryption for secure transmission
  • $630
    ULXD2/B87A Shure ULXD2/B87A Wireless Handheld Mic
    The ULXD2/B87A Supercardioid Condenser Handheld Wireless Microphone works with ULX-D Wireless Systems.

    Features:
  • Supercardioid pickup pattern
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • AES 256-bit encryption for secure transmission
  • $630
    ULXD2/B87C Shure ULXD2/B87C Wireless Handheld Mic
    The ULXD2/B87A Cardioid Condenser Handheld Wireless Microphone works with ULX-D Wireless Systems.

    Features:
  • Cardioid pickup pattern
  • AES 256-bit encryption for secure transmission
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • $630
    ULXD2/K8 Shure ULXD2/K8 Wireless Handheld Mic
    The KSM8 with the ULXD2 Handheld Transmitter features the KSM8 Dualdyne Cardioid DynamicVocal Microphone head which allows control of proximity effect and off-axis attenuation while providing clearest vocal capture and reproduction during live performances.

    Features:
  • 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout
  • AES 256-bit encryption for secure transmission
  • $905
    ULXD4 Shure ULXD4 Receiver
    The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

    With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.


    Features:
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware
  • Support for frequency coordination with the Axient® Spectrum Manager
  • $875
    ULXD4D Shure ULXD4D Dual Receiver
    The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.

    Features:
  • Two receivers in a rugged 1RU metal chassis with internal power supply
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Audio and RF LED meters with peak indicator
  • XLR connectors with switchable mic/line output level
  • Remoteable 1/2 wave antennas
  • Dante™ digital networked audio over Ethernet
  • AXT600 Axient® Spectrum Manager compatible
  • $2505
    ULXD4Q Shure ULXD4Q Quad Receiver
    The Shure ULXD4Q Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup features in a space-efficient single rack unit. Rugged yet lightweight and compact, the 1RU all-metal chassis houses four independent receivers, each with its own audio and RF meters, gain control, and XLR outputs that can be either direct or summed for flexible signal routing.

    Features:
  • Four receivers in a rugged 1RU metal chassis with internal power supply
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Audio and RF LED meters with peak indicator
  • XLR connectors with switchable mic/line output level
  • Remoteable 1/2 wave antennas
  • Dante™ digital networked audio over Ethernet
  • AXT600 Axient® Spectrum Manager compatible
  • $5015
    ULXD8 Shure ULXD8 Wireless Gooseneck Base
    The ULXD8 Gooseneck Base Transmitter offers a flexible gooseneck mic form factor that is ideal for use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD8 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

    Features:
  • Designed for use with Shure Microflex® MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones
  • Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings
  • $500
    ULXD6/C Shure ULXD6/C Wireless Boundary Microphone - Cardioid
    The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

    Features:
  • Cardioid pick-up pattern
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings
  • Compatible with standard AA alkaline batteries
  • Compatible with ULX-D® and QLX-D® digital receivers
  • $550
    ULXD6/O Shure ULXD6/O Wireless Boundary Microphone - Omnidirectional
    The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

    Features:
  • Omni pick-up pattern
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings
  • Compatible with standard AA alkaline batteries
  • Compatible with ULX-D® and QLX-D® digital receivers
  • $550
