Shure SBC250 2-Bay Networked Charging Station

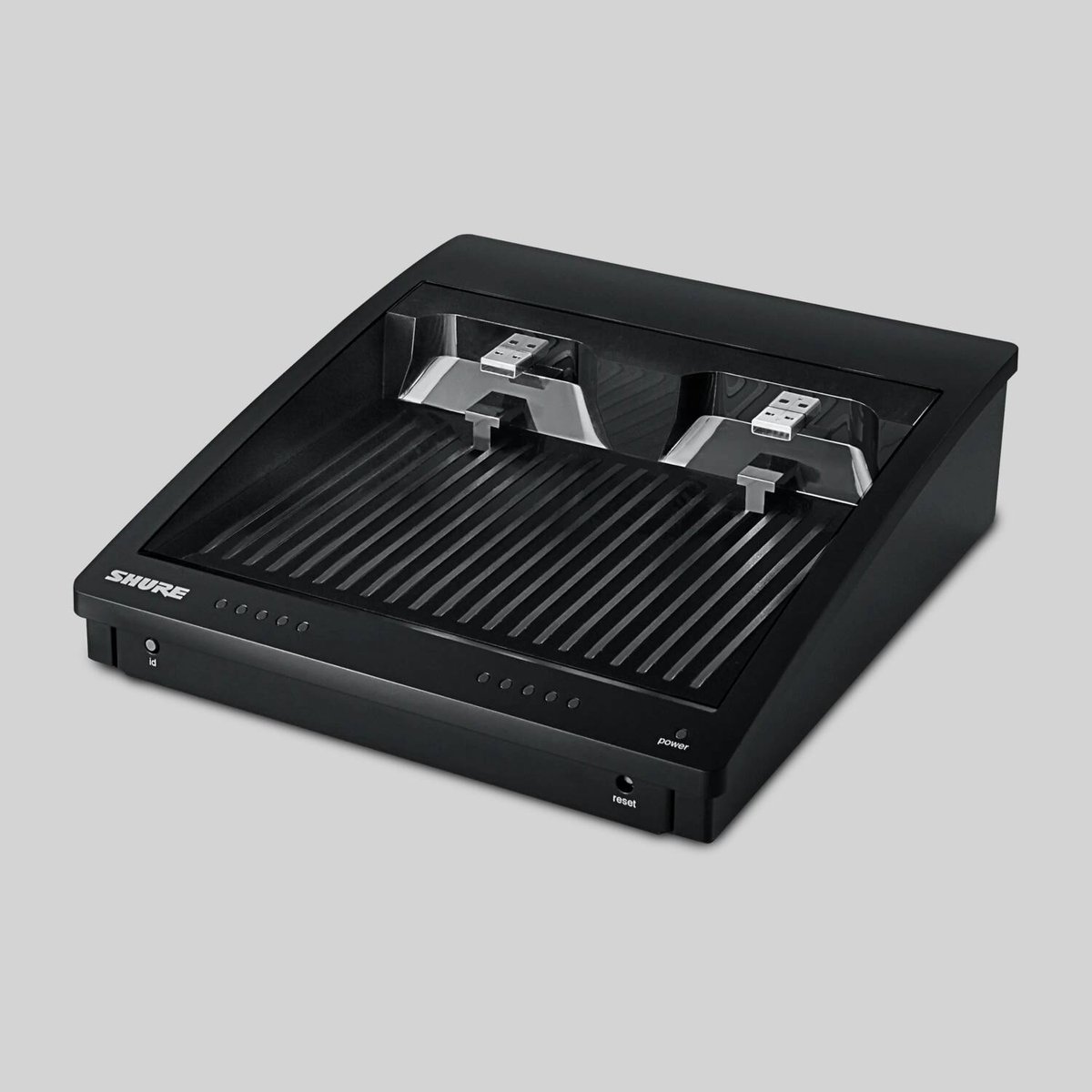

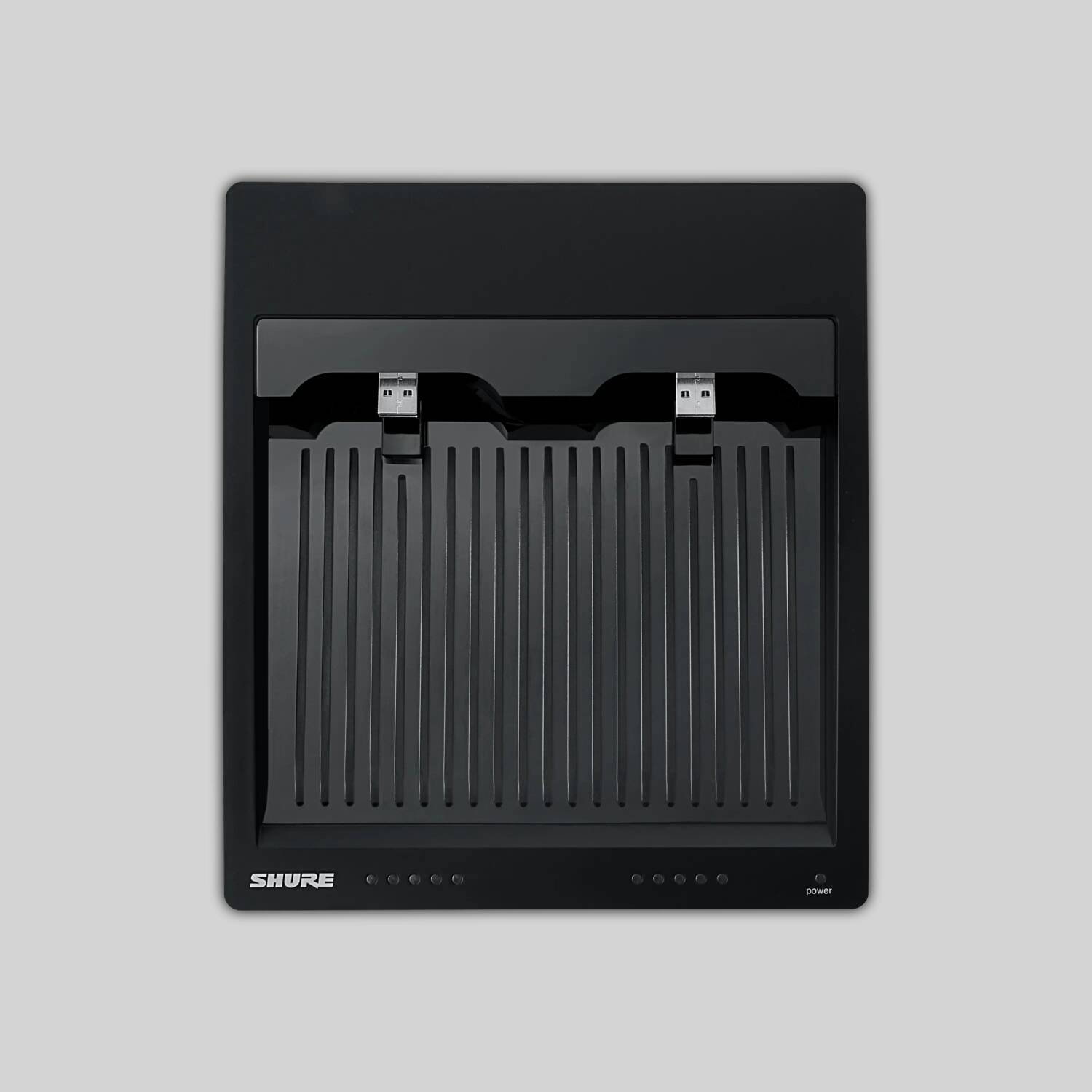

The SBC250 is Shure's two-bay networked charging station for ULX-D bodypack and handheld transmitters. It charges up to two ULXD6 or ULXD8 transmitters fitted with the SB900B rechargeable battery, topping them off in the transmitter so a crew can dock the packs at the end of a show and have them ready for the next call without pulling batteries.
An internal power supply keeps the footprint clean with no external brick, and the station supplies a full charge in three hours or a 50 percent charge in one hour. Because it is networked, the SBC250 reports status and integrates with third-party control systems such as AMX and Crestron for monitoring in a rack or control room.
- Dimensions215 x 191 x 62.5 mm (8.46 x 7.52 x 2.44 in.)
- Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
- Network Interface10/100 Mbps Ethernet
- Operating Temperature Range0°C (32°F) to 45°C (113°F)
- Power Requirement100 to 240V AC @ 0.35 A maximum, 50/60 Hz
| Charge Time (ULXD6 and ULXD8) | 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged |
|---|---|
| Network Interface | 10/100 Mbps Ethernet |
| Power Requirement | 100 to 240V AC @ 0.35 A maximum, 50/60 Hz |
| Housing | Molded Plastic, Sheet Metal |
| Dimensions | 215 x 191 x 62.5 mm (8.46 x 7.52 x 2.44 in.) |
| Weight | 2.7 kg (5.95 lb) |
| Operating Temperature Range | 0°C (32°F) to 45°C (113°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Source | Full specifications on shure.com |
