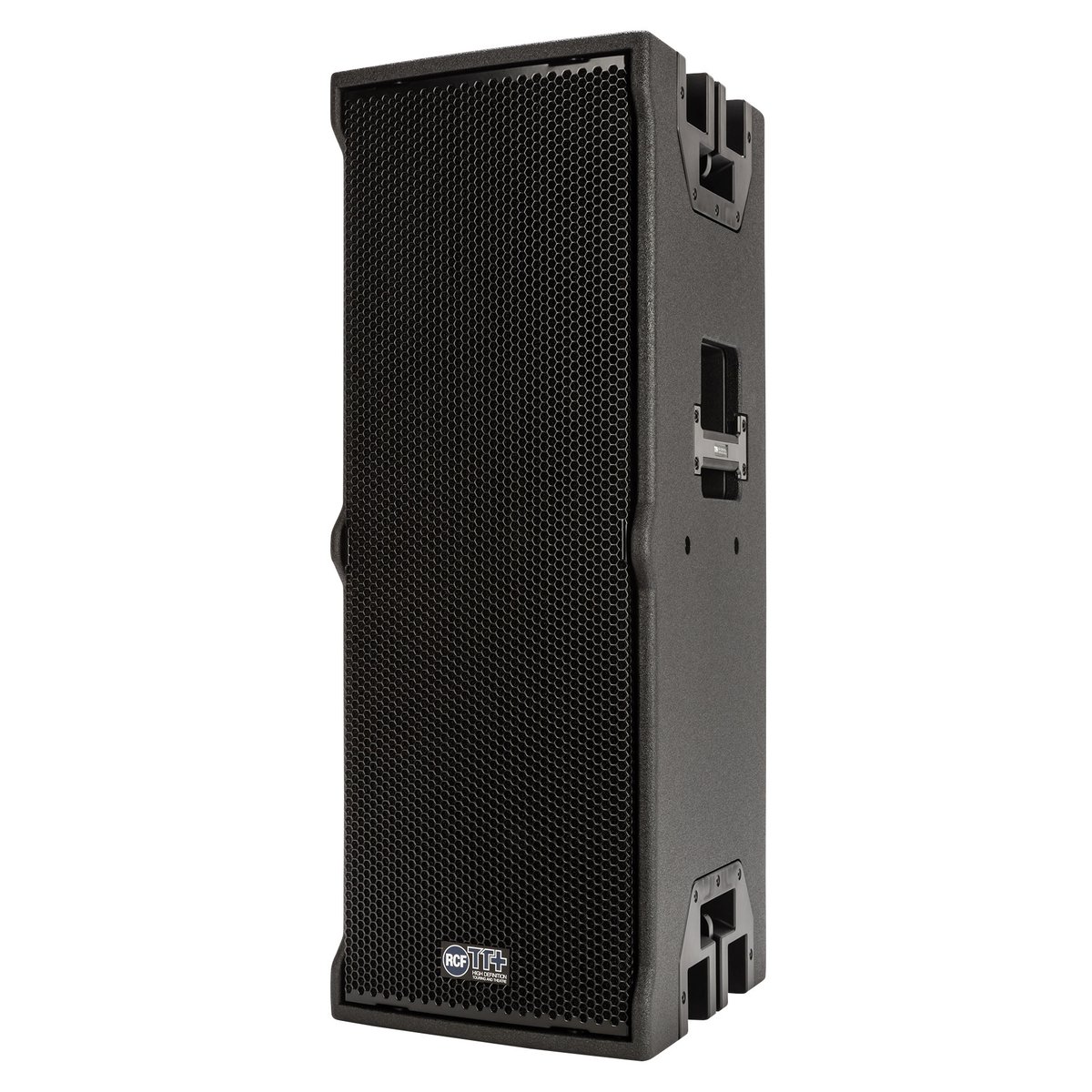

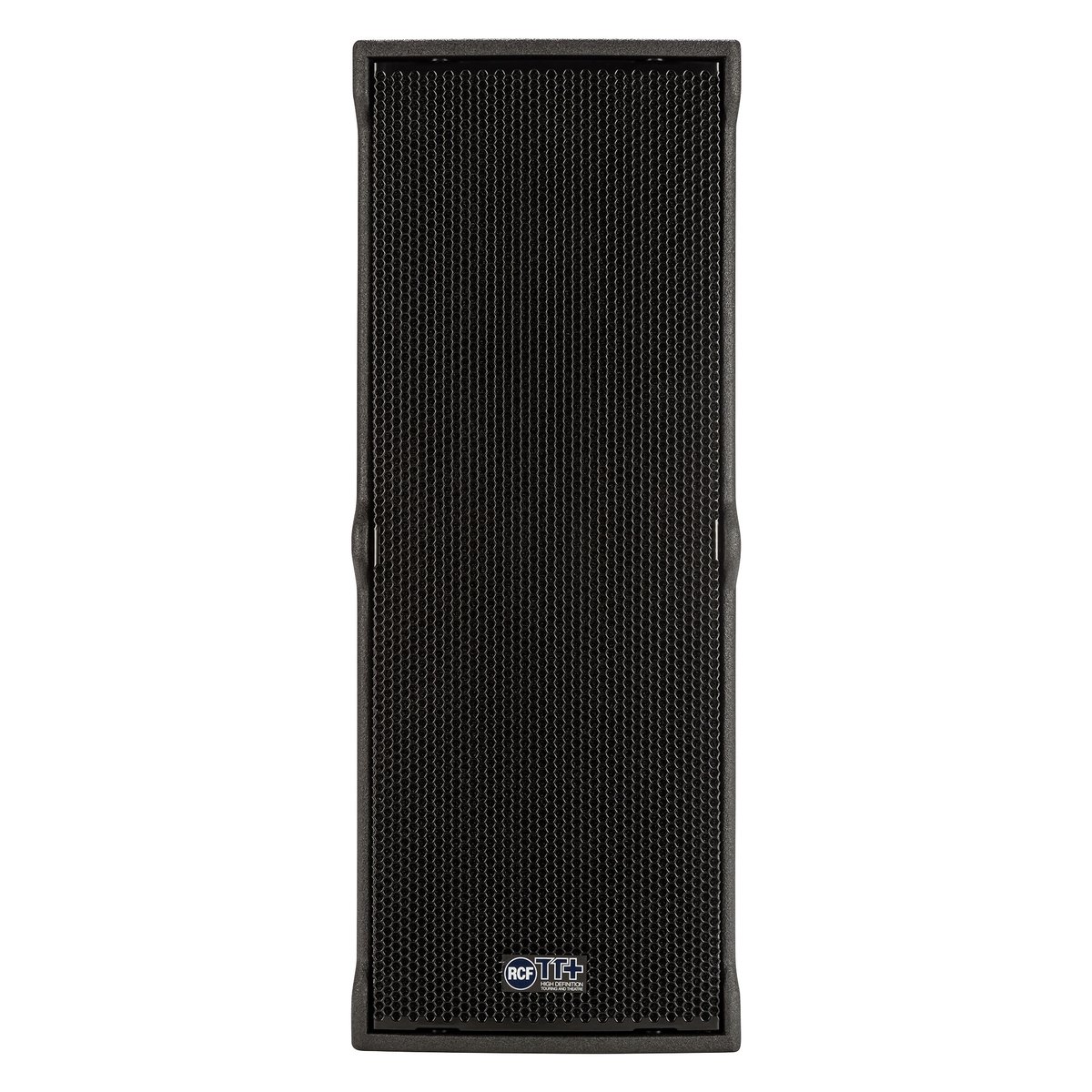

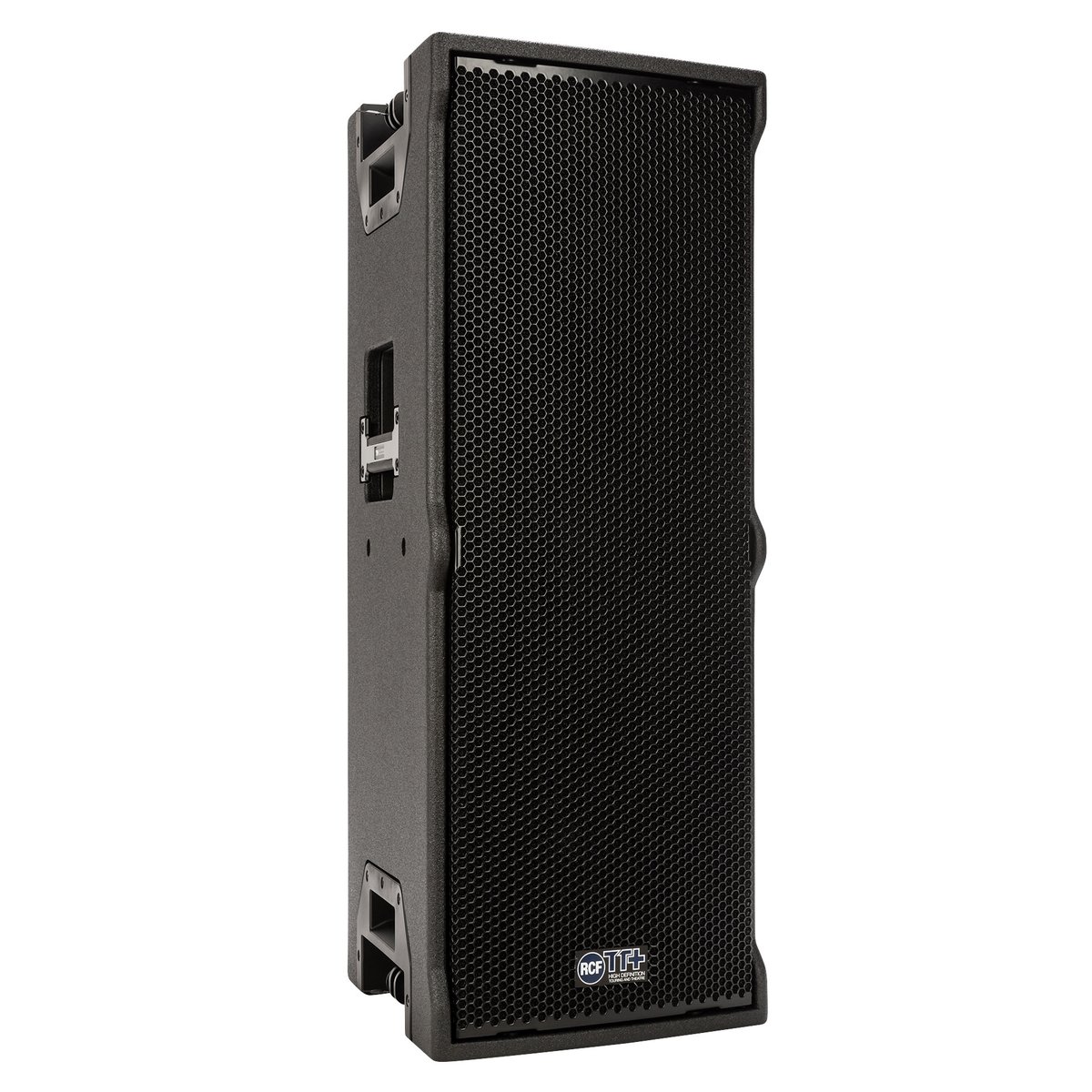

RCF TTW 4-A Wide Directivity Active Two-Way Speaker

The TTW 4-A is the wide-dispersion companion to the TTL 4-A, using the same two 10-inch neodymium woofers and 1.5-inch exit compression driver but a 100 by 50 degree horn instead of the array module's narrow vertical. That makes it the right box for stacked systems, side fills, and rooms where you need to cover a wide seating area from a short throw.

A 3200 W peak, 1600 W RMS amplifier delivers 134 dB from 45 Hz to 20 kHz, with the crossover at 900 Hz. TT+ rigging handles flown and stacked builds, RDNet over Ethercon covers DSP and monitoring, and the Baltic birch cabinet weighs 67.02 lbs.

Frequency Response45 Hz - 20000 Hz
Max SPL at 1 m134 dB
Horizontal Coverage100 degrees
Vertical Coverage50 degrees
Compression Driver1 x 1.5-inch neo, 4.0-inch v.c
Woofer2 x 10-inch neo, 3.0-inch v.c
Total Power3200 W Peak, 1600 W RMS
Crossover900Hz
InputsXLR, RDNet Ethercon
