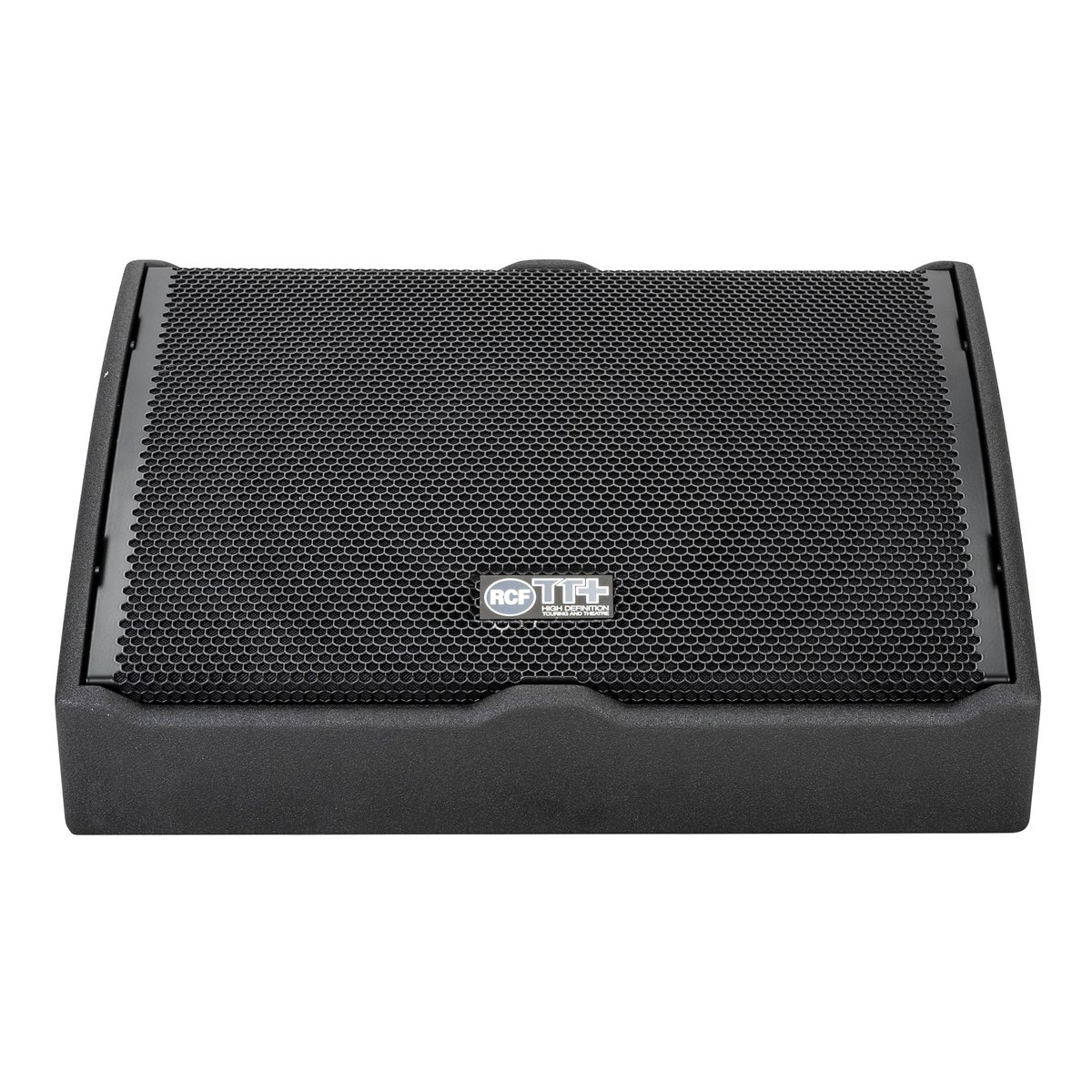

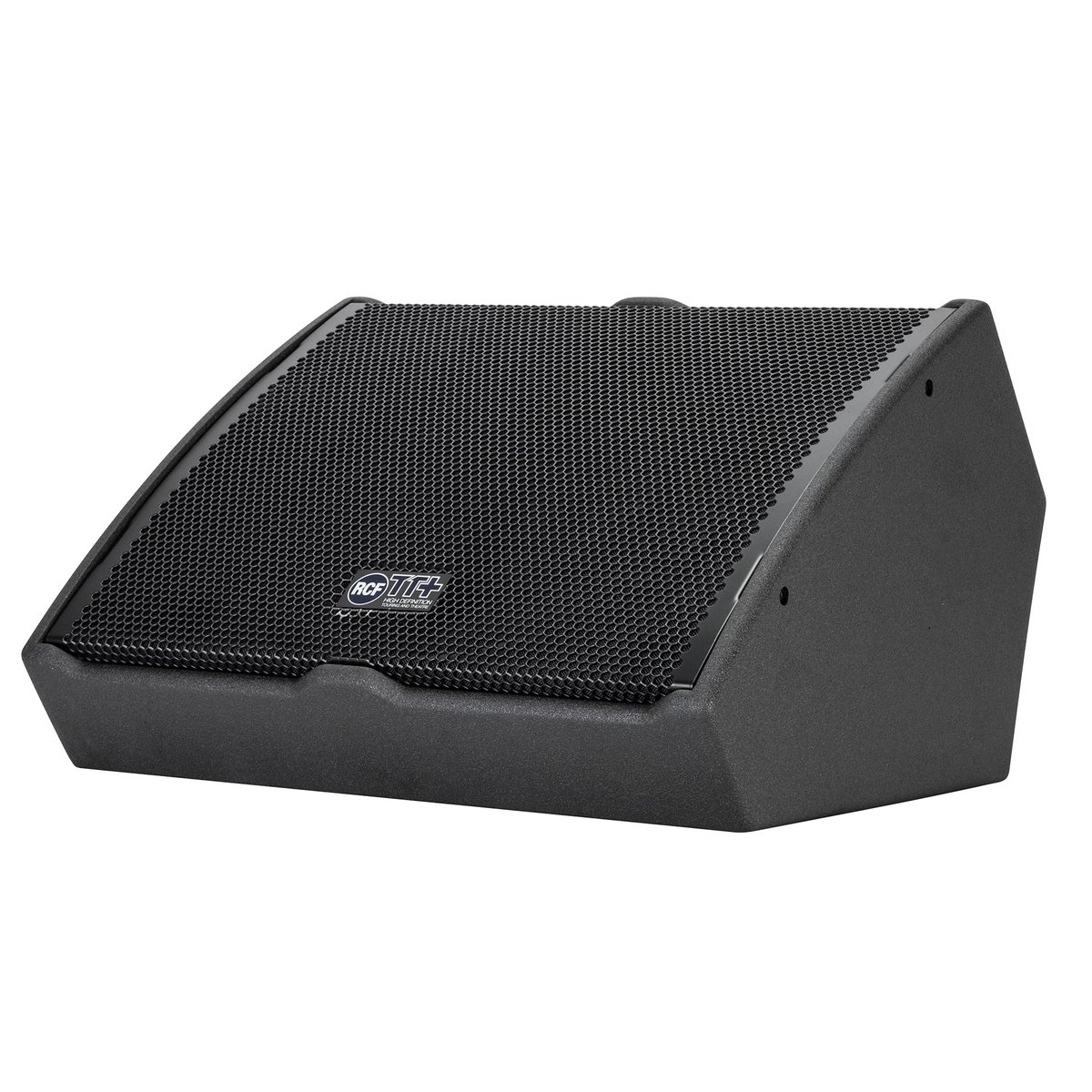

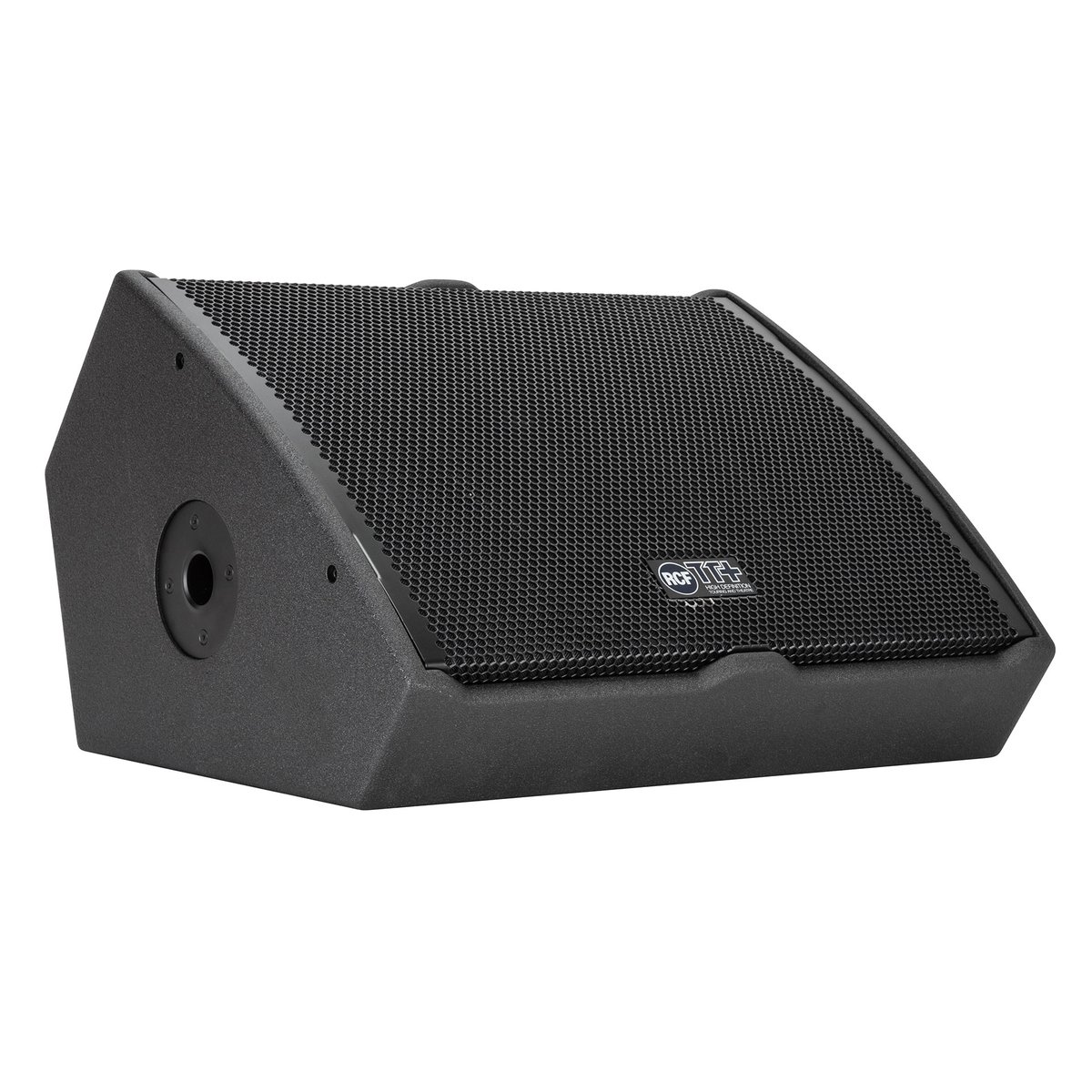

RCF TT 25-CXA Active Coaxial Stage Monitor

The TT 25-CXA is a coaxial monitor, which means the high frequencies leave from the acoustic center of the 15-inch woofer rather than beside it. That single point source is why the response stays linear as a performer moves across the wedge, and why the 60 by 60 degree pattern gives usable gain before feedback in a crowded stage plot. A 2200 W peak amplifier drives it to 133 dB from 50 Hz to 20 kHz.

The voicing is deep in the mids and clean at the top, with the 900 Hz crossover handled by FiRPHASE filtering for flat phase. The cabinet is low-profile Baltic birch at 39.68 lbs, so it disappears on camera, and RDNet over Ethercon covers EQ, delay, and monitoring for the whole monitor world.
