ProX XT-SQ164-3WT 1.64 3-Way 90 Degree Corner Section T-Section for F34 Conical Truss Segments

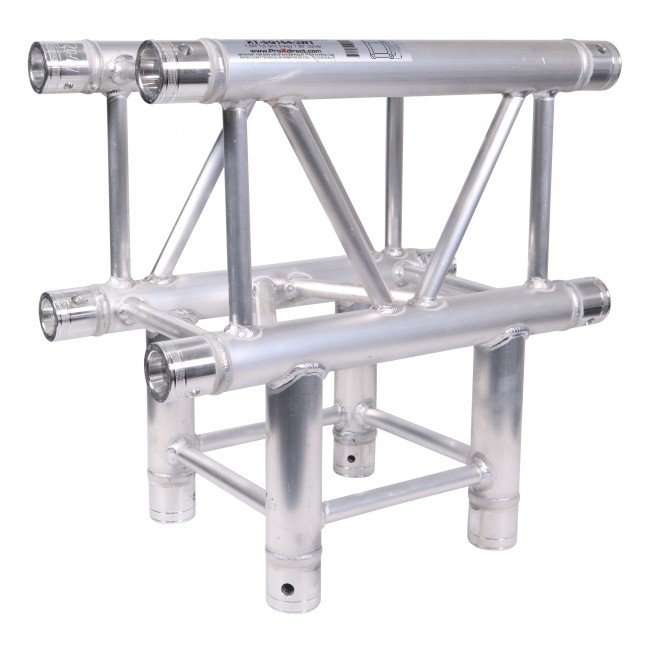

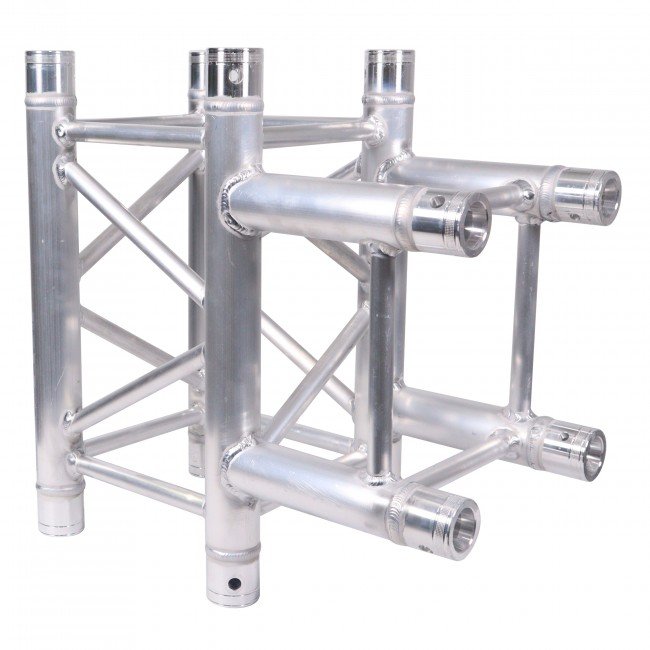

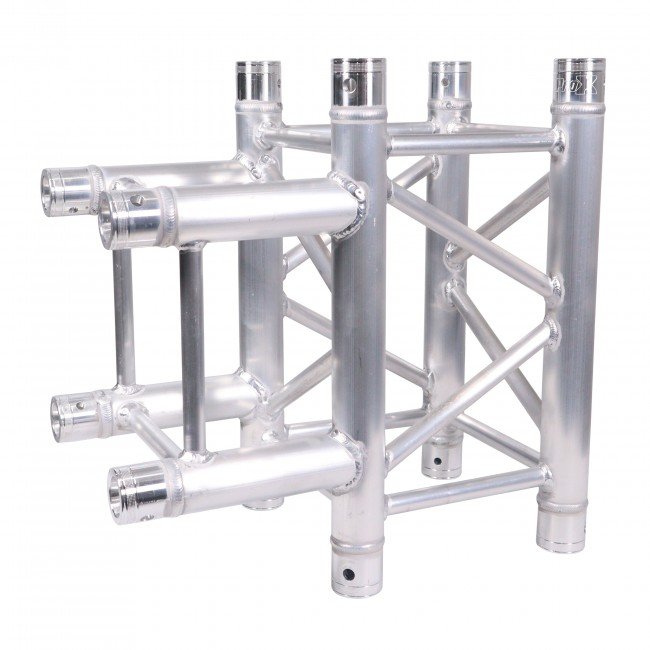

XT-SQ164-3WT is the three-way T-section for ProX F34 conical truss: three outlets, 90 degrees apart, on 1.64 ft (0.5 M) legs. It replaces the older SQ-4126 in the line. Lay it flat and it is the tee that branches a straight run sideways; stand it up and the same part becomes the top or the bottom of a vertical - which is why one of these in the truck does the work of two dedicated corners.

It is machined and welded from 6082-T6 aluminium to the XT-SQ series dimensions - 11.42 in (290 mm) square, 2 in (50 mm) main tube, 2 mm wall, 0.75 in (20 mm) braces - so the chords line up with every other F34 segment in the system and pin with standard conical couplers. As always, know your load weight and consult an engineer before committing to a complex design.
