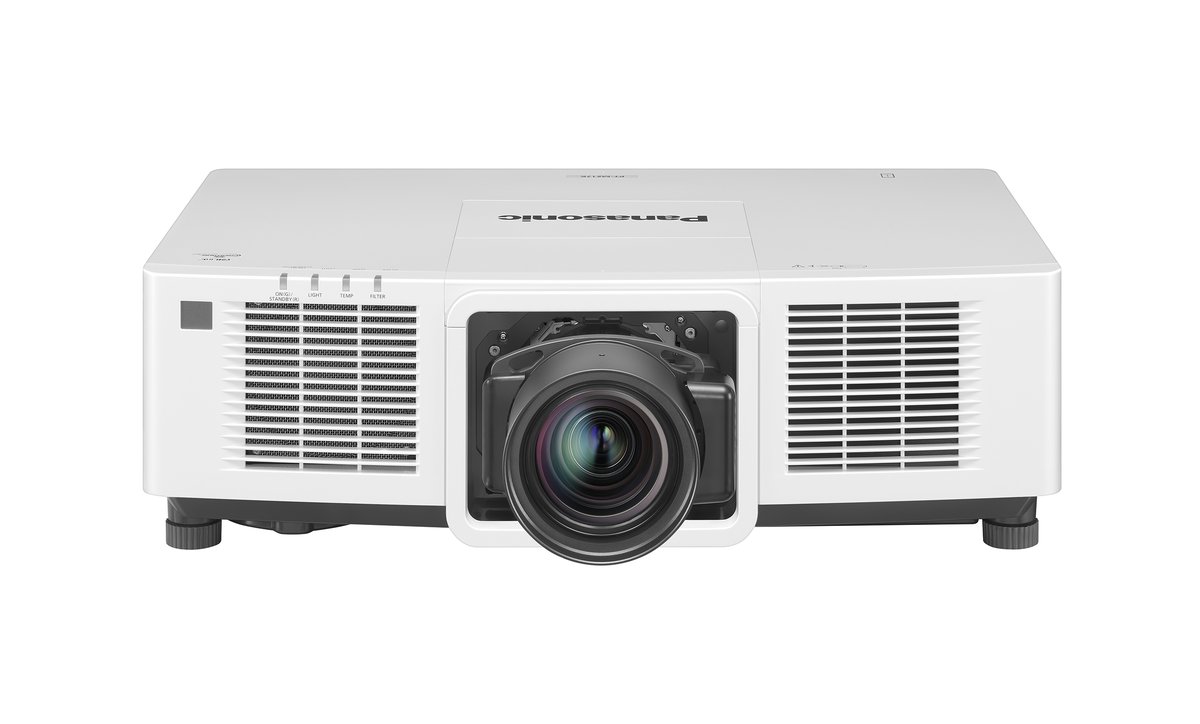

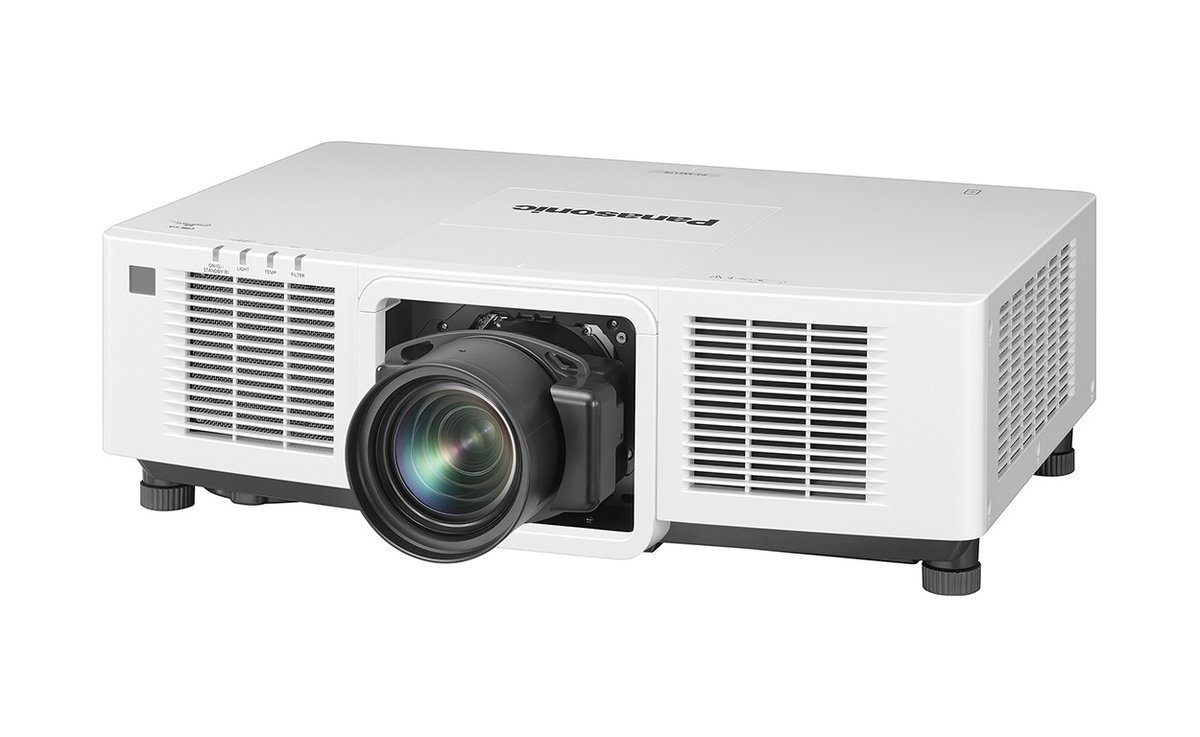

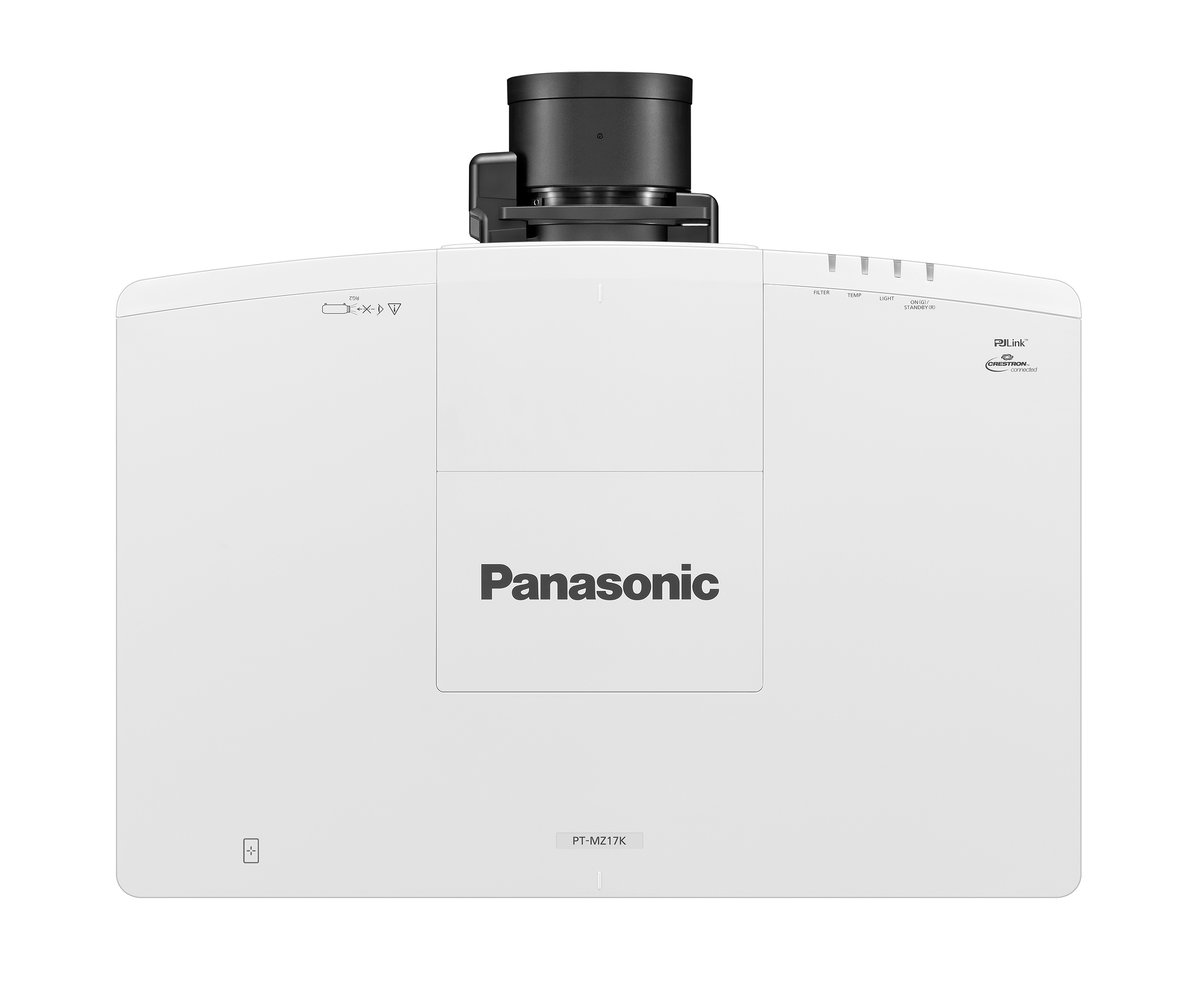

Panasonic PT-MZ17KLWU7 Projector

The Panasonic PT-MZ17KLWU7 is a 3LCD laser projector rated at 16,500 lumens (ISO) with native WUXGA (1,920 x 1,200) resolution and 4K signal input. Three 1.0-inch LCD panels deliver even, full-color light with no color-wheel artifacts, and the 3,000,000:1 dynamic contrast ratio keeps blacks deep in demanding rooms such as auditoriums, houses of worship, and rental and staging setups. The filterless laser engine is rated for roughly 20,000 hours before brightness falls to half, with no scheduled lamp or filter service.

This is the lens-less (KL) model; an ET-series interchangeable lens is selected and ordered separately for the intended throw. Signal I/O includes two HDMI 2.1 inputs with HDCP 2.3, HD-SDI on BNC, DIGITAL LINK, and RJ-45 for network control. This is the white (WU7) chassis; Normal-mode audible noise is 38 dB.

Display3LCD, 1.0-inch panels
ResolutionWUXGA (1,920 x 1,200), 4K signal input
Brightness16,500 lm (ISO)
Contrast Ratio3,000,000:1 (dynamic)
Light SourceLaser, 20,000 h
InputsHDMI 2.1 x2 (HDCP 2.3), HD-SDI (BNC), DIGITAL LINK, RJ-45
LensNot included, interchangeable ET-series (sold separately)
Power Consumption950 W
Weight22.5 kg (49.6 lbs)
Noise Level32 dB (Quiet) / 38 dB (Normal)
