Panasonic AW-UE150AW 4K PTZ Camera
The AW-UE150A is a 4K/60p PTZ camera built on a large 1.0-type MOS sensor whose light-gathering area is roughly four times that of a 1/2.3-type chip, which keeps noise low in dim venues. Its 20x optical zoom and 75.1-degree wide angle of view suit stadiums, lecture halls, houses of worship and other large rooms. The A revision adds built-in auto-tracking, so the camera can follow a presenter without a dedicated operator.

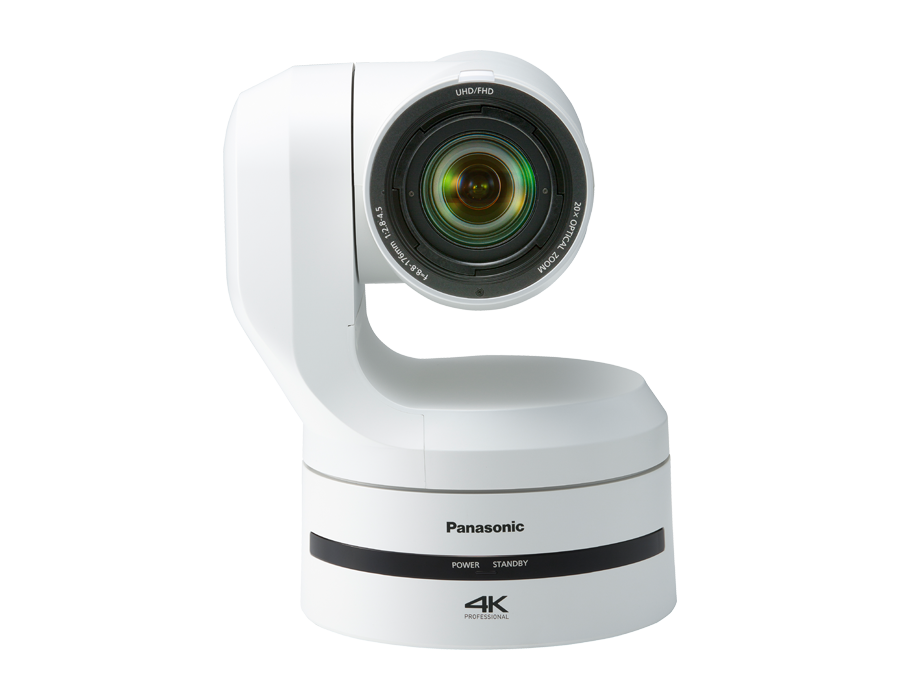

The camera shoots UHD 3840 x 2160 at 59.94p/50p and can output 4K and HD at the same time. Connections include 12G-SDI, 3G-SDI, HDMI, IP and optical fiber, with NDI available over the network. This is the white model.
| Image Sensor | 1.0-type MOS |
|---|---|
| Optical Zoom | 20x |
| Horizontal Angle of View | 75.1 degrees (wide) |
| Output Format | 4K 3840 x 2160 59.94p/50p |
| Video Output | 12G-SDI, 3G-SDI, HDMI, IP, Optical Fiber |
| IP Protocol | NDI |
| Simultaneous Output | 4K and HD |
| Auto-Tracking | Built-in (A model) |
