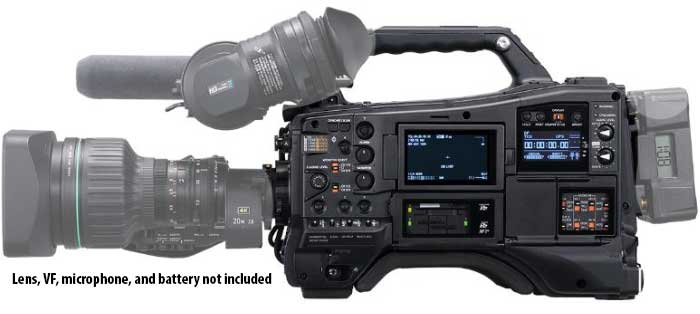

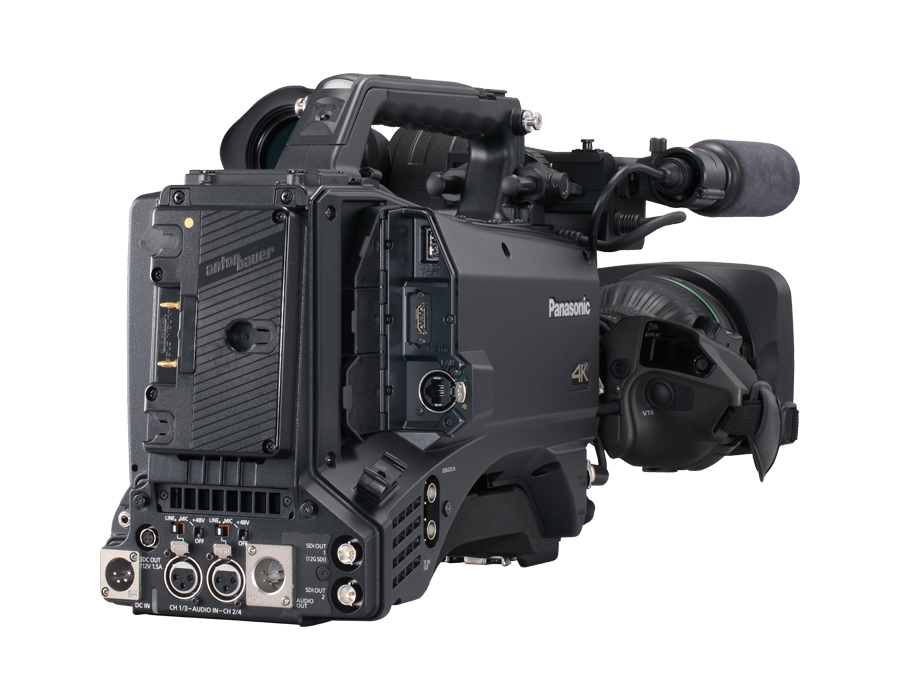

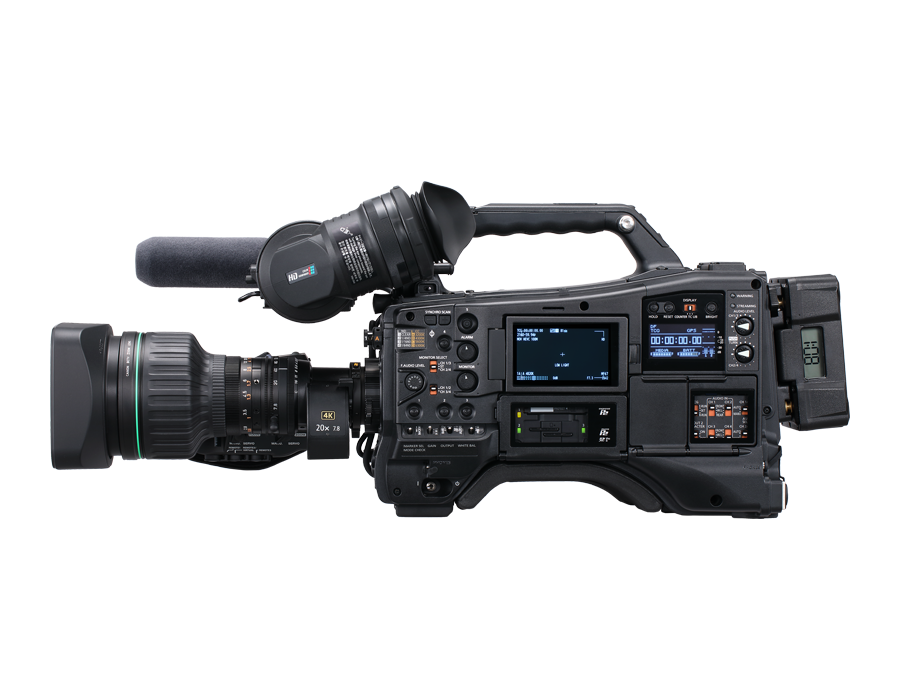

Panasonic AJ-CX4000 4K Camera

The AJ-CX4000 is a B4 lens mount, interchangeable lens camera recorder that is typical for broadcast use. It is equipped with a large-sized 11MP image sensor and enables high quality 4K (UHD) image recording with a horizontal resolution of 2000 TV lines.

• 4K UHD recording with HDR (compliant with BT.2100 & BT.2020)
• UHD 60p 10-bit 4:2:2 output via 12G-SDI
• Interchangeable B4 lens mount
• Direct livestreaming compatible with RTSP, RTMP and RTMPS
• Ergonomically designed shoulder mount optimized for news, documentary and sports coverage
• Depth of field secured with the B4 lens mount and 2/3" image circle
• Two filter wheels (ND and CC)
• Includes a newly developed large 4.4K image sensor. Sampling exceeding 4K is used to achieve a resolution of 2000 TV lines
• F10 (60 Hz)/F11 (50 Hz) sensitivity in High Sens. mode
• Supports HDR (High Dynamic Range) *1 image acquisition and outputs SDR *2 while acquiring HDR
• Multi-formats: MOV (4K/HD) and P2 MXF *3 (HD only)
• New HEVC Codec 100 Mbps mode for ENG (4K 60p 4:2:0 10-bit)
• 4:2:2 10-bit recording: 4K up to 30p/25p and HD up to 60p/50p (H.264/AVC, AVC-Intra and AVC-LongG)
• Four-channel 24-bit LPCM audio recording
• The express P2 card offers ultra high speed offloading
• Lower running cost media: microP2 card/SDXC memory card
• Light weight: 7.5 lbs./3.4kg (body only) and excellent weight balance
• Offers the Direct Streaming function compatible with RTSP, RTMP and RTMPS *4
• 4K 60p/50p 4:2:2 10-bit output via 12G-SDI out and HDMI out
• Newly developed built-in LCD monitor of HD720p resolution with touch panel function
• Newly developed High-contrast monochrome OLED display for the timecode and audio level indicator
• Includes various network connections: Gigabit Ethernet with locking connector, wireless LAN (option) and USB 3.0 connector
• NDI|HX compatibility (requires license purchase) *5
• Wireless remote from an ROP App (iOS/Android) *6

*1: The HLG specification was developed jointly by Japanese broadcaster NHK and the BBC in the UK. It is defined in ARIB STD-B67 and ITU Rec. 2100.
*2: SDR image is output with monitor gamma.
*3: To be supported.
*4: P2 Network Setting Software is required for using the RTMP and RTMPS functions. See the "Connectivity-verified live video services" section for live video streaming services with confirmed compatibility.
*5: 4K image output not supported in NDI | HX mode. To use this function, an activation keycode from NewTek is required.
*6: iPad: iOS 9 or later is supported. Android devices: Android 5.0 or later is supported. Wireless module (sold separately; AJ-WM50/WM50G or recommended third-party Wi-Fi dongle) is required.

AJ-CX4000 Info
