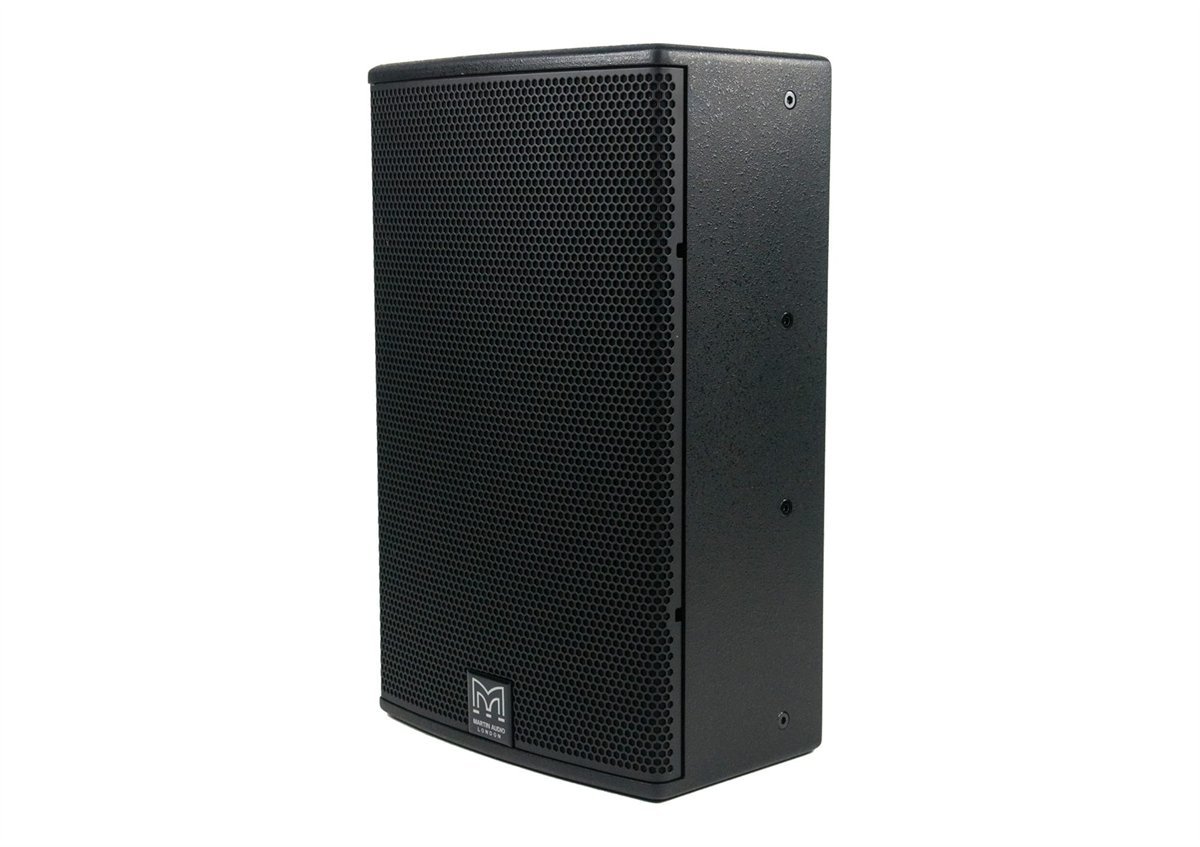

Martin Audio Blackline X10 10" Passive Loudspeaker

The Blackline X10 is a compact two-way passive loudspeaker built around a 10" (250mm) low-frequency driver and a 1" exit compression driver on a rotatable horn. It is the small end of Martin Audio's portable Blackline X range, sized for clubs, events and AV work where a full 12- or 15-inch box would be more than the room needs but real output is still required.

It handles 250W AES (1000W peak) at 8 ohms, reaches 124dB peak and covers 65Hz-20kHz, with an 90-degree by 50-degree pattern that can be rotated for use on a pole, a stand or flown. The birch/poplar plywood cabinet has two NL4 connectors for through-wiring and pairs naturally with the Blackline X subwoofers when more low end is needed.

LF Driver10" (250mm), 2.5" (63.5mm) voice coil
HF Driver1" (25mm) exit, 1.4" (35mm) polyimide dome compression driver
Frequency Response65Hz-20kHz +/- 3dB
Dispersion90 deg x 50 deg, user-rotatable
Power Handling250W AES, 1000W peak
Nominal Impedance8 ohms
Max SPL118dB continuous, 124dB peak
Dimensions324 x 522 x 289 mm (W x H x D), 14 kg
