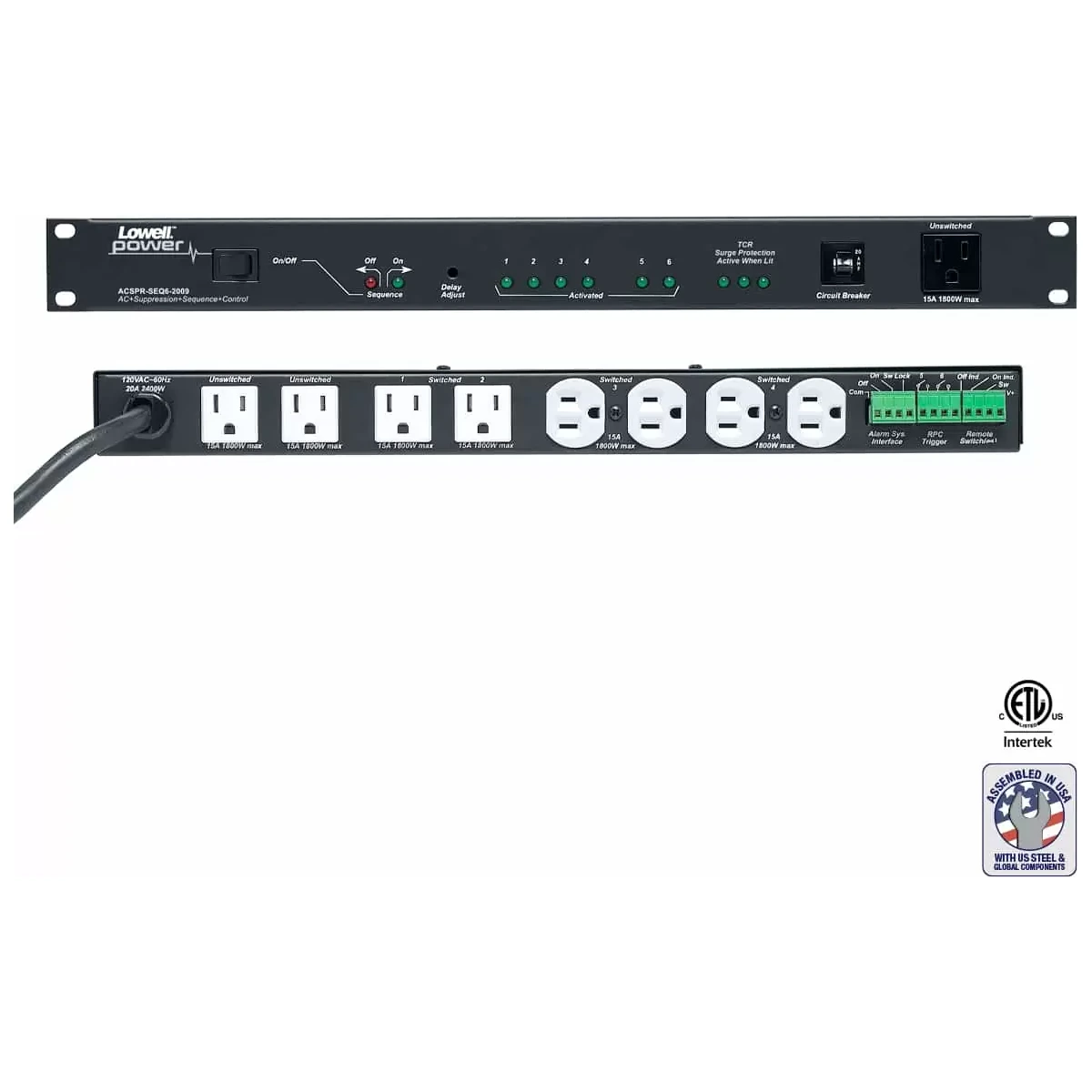

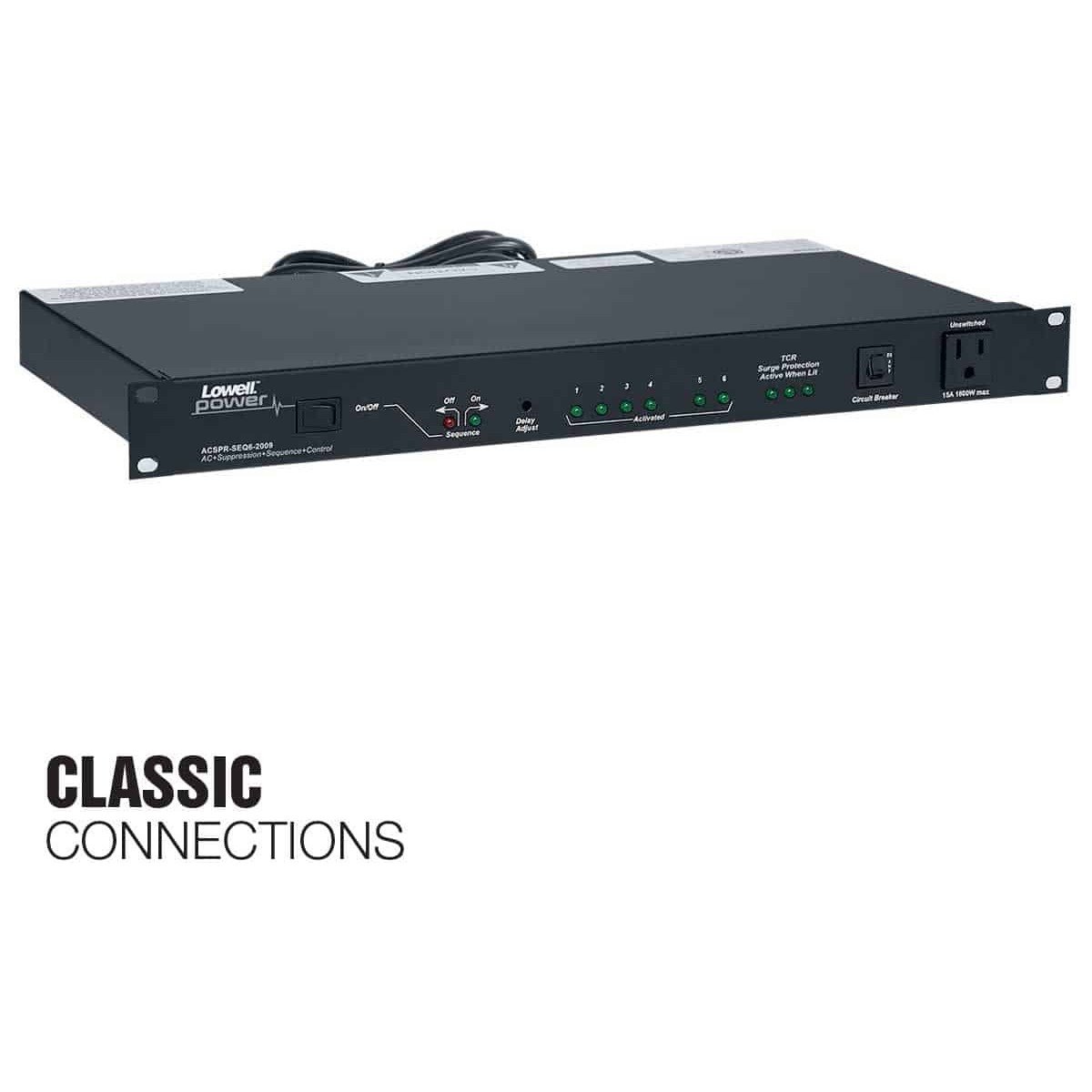

Lowell ACSPR-SEQ6-2009 Rackmount SEQ Power Panel

The Lowell ACSPR-SEQ6-2009 is a sequential AC rackmount power panel. Lowell specifies two dry contact closures (steps 5 and 6) trigger remote power control units (order separately), color coded LED status indicators and advanced surge protection to 72,000A.

Ordered as Lowell part number ACSPR-SEQ6-2009. Lowell rates it TAA compliant, BAA compliant, EIA/TIA compliant, ETL Listed in US/Canada (UL60065). Assembled in the USA with global components. Specifications as published by Lowell Manufacturing.

Chassis	19 in. x 9 in. x 1.75 in. (1U)
Power Rating	120VAC 60Hz, 20A
Outlets	9 (15A) outlets-1 front (un-switched), 2 rear (un-switched), 6 rear (switched)
Termination	9 ft. attached cord with NEMA 5-20P plug
Compliance	TAA compliant, BAA compliant, EIA/TIA compliant, ETL Listed in US/Canada (UL60065)
Country of Origin	Assembled in the USA with global components
Alarm Interface	Lock on, lock off and switch lock functions for alarm system or master control panel applications
