Kramer WP-580T(D) 4K60 4:2:0 HDMI Wall-Plate Transmitter with HDBaseT (2-Gang Decora Frame)

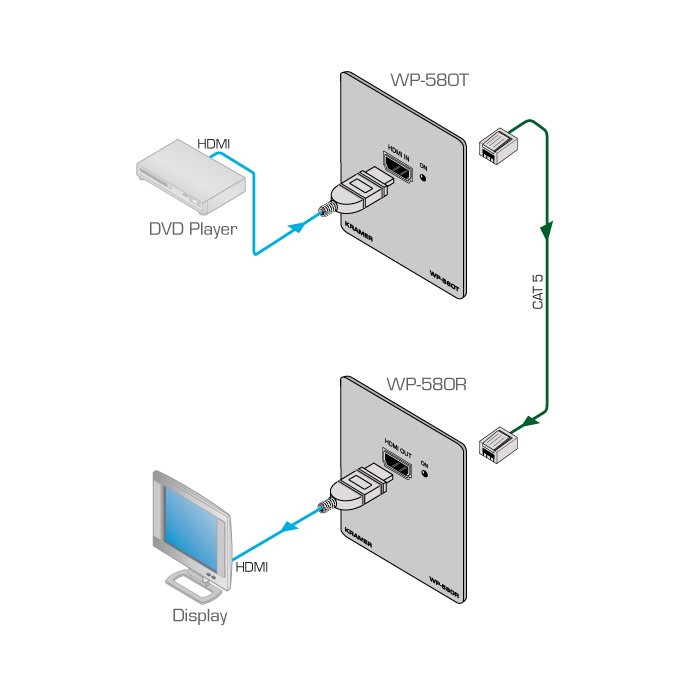

The WP-580T(D) takes an HDMI input at the wall and converts it to an HDBaseT twisted-pair signal for a matching WP-580R receiver at the display end, with the Midway Size 2-gang Decora frame included so it drops straight into a standard US wall box alongside other Decora-style switches and plates. HDCP 2.2 compliance carries Deep Color, x.v.Color, lip sync, uncompressed HDMI audio, Dolby TrueHD, DTS-HD and CEC through at up to 4K@60Hz (4:2:0), and EDID passes through automatically between source and display.

Max data rate runs 10.2Gbps (3.4Gbps per graphics channel), and the extension reaches up to 70m over Kramer's BC-HDKat6a cable - third-party Cat 6 may not reach the same distance. Status LEDs for input, output, link and power make on-site diagnosis straightforward. Kramer notes supply on this model is limited and it will be discontinued when global inventory is depleted; it's superseded by the WP-789T for new installs.
