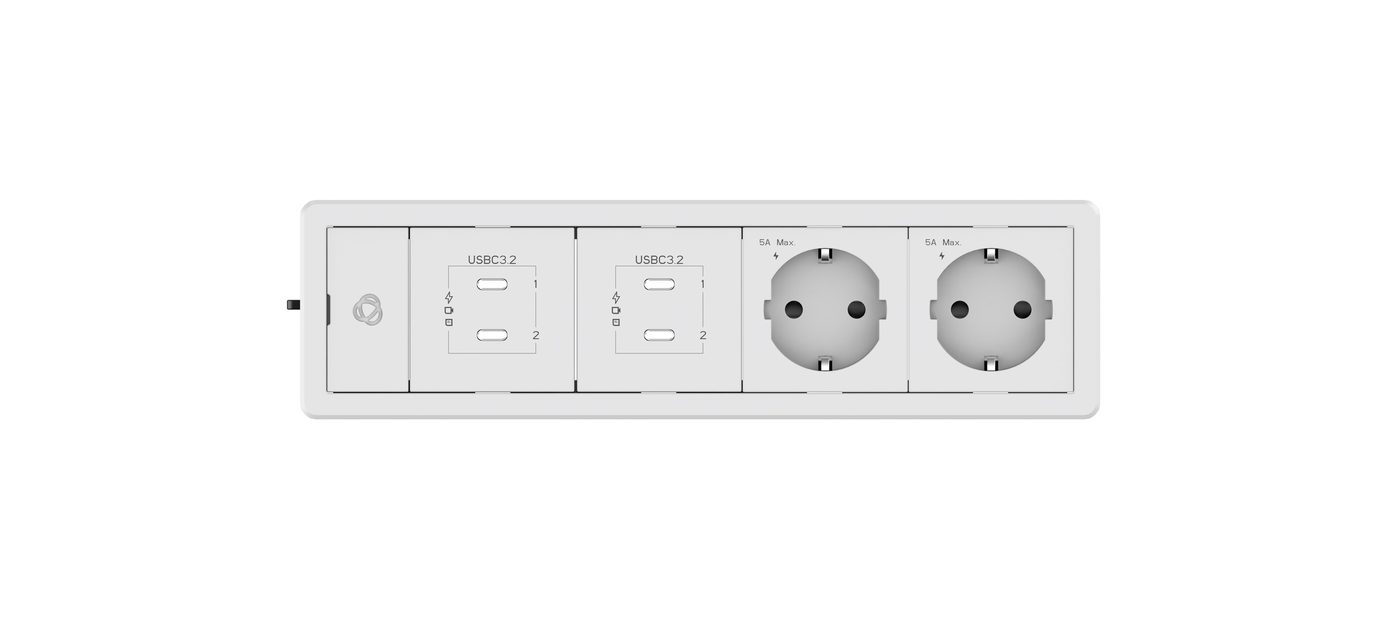

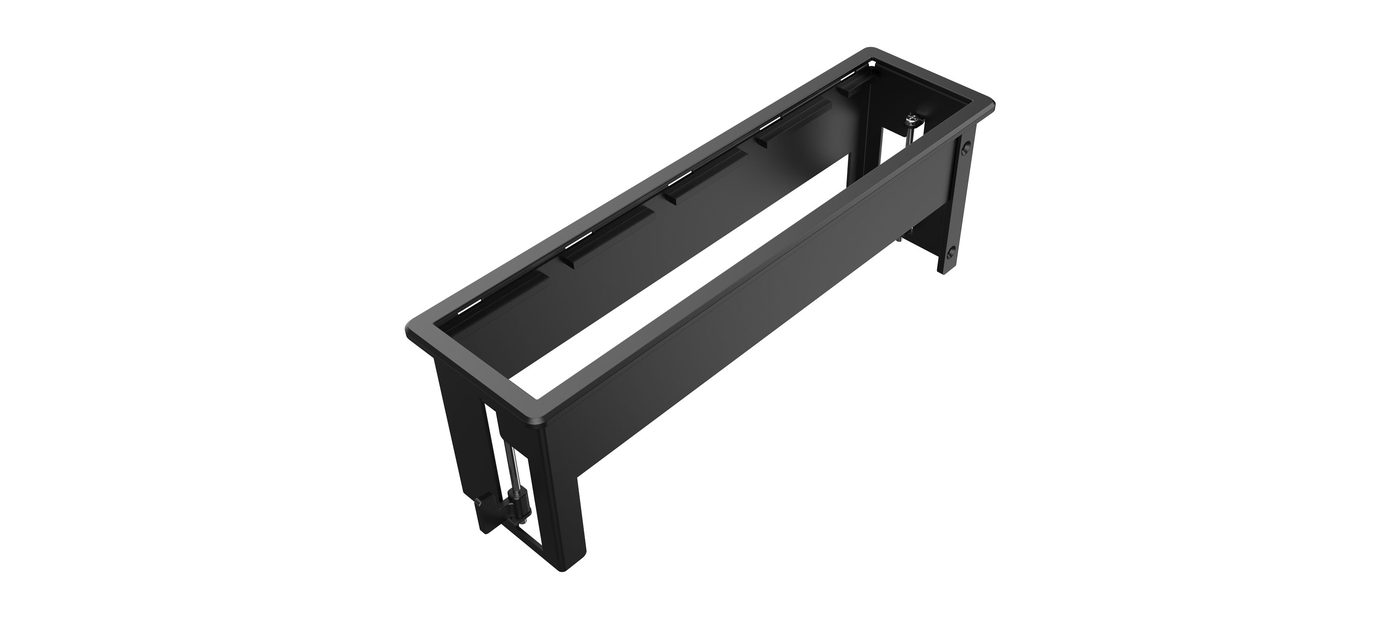

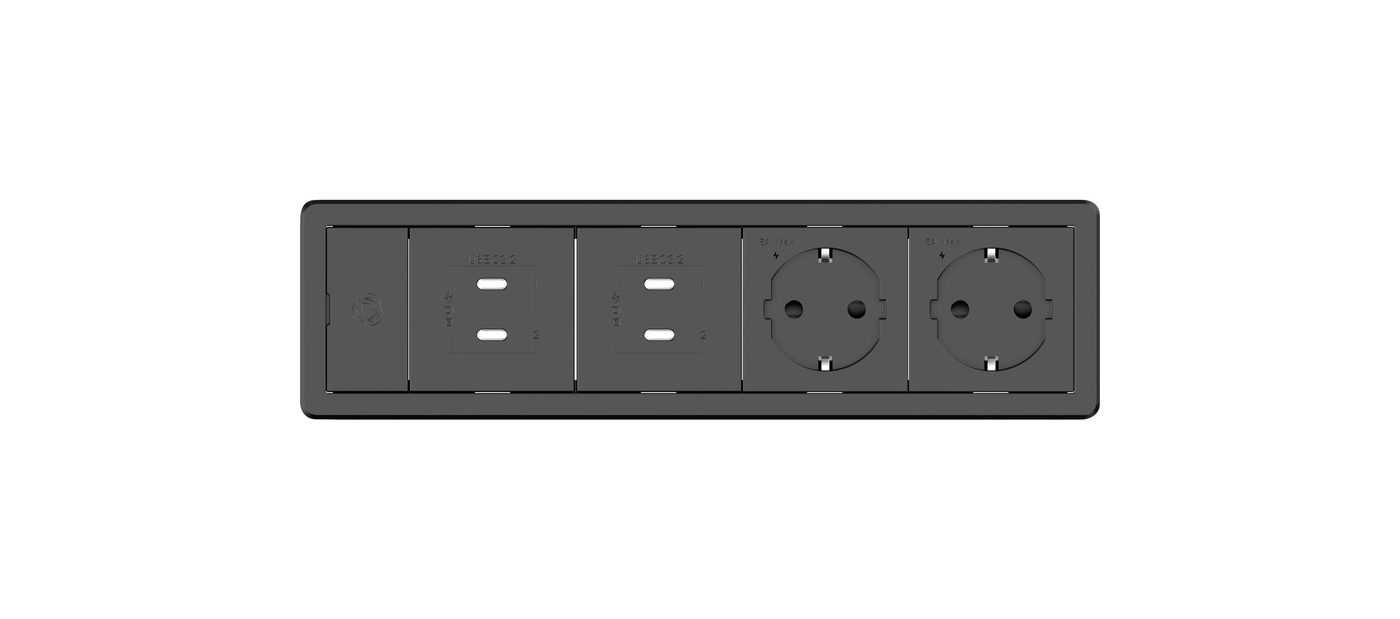

Kramer T-IN4-REC1 Baseline In-Table Tabletop Connectivity Housing, 4 Modules
The T-IN4-REC1 is the 4-module member of Kramer's Baseline in-table connectivity range, holding twice the TBUS modules of the T-IN2-REC1 in a longer 231 x 58mm cutout. It carries over the same slide-and-lock install: modules go in and come out from above the table, with no screws and no crawling underneath to service a position.
The outer housing runs 242 x 66 x 83mm and comes in black (RAL 9011), white (RAL 9002), or natural aluminum. It targets boardrooms, conference rooms, classrooms, training facilities, lab tables, and lecterns that need a wider mix of power, data, and AV modules at one seat than a 2-module box provides.
| Modules | Holds 4 TBUS modules |
|---|---|
| Table Cutout Dimensions | 231 x 58mm (9.09" x 2.28") |
| Outer Dimensions (L, W, H) | 242 x 66 x 83mm (9.53" x 2.6" x 3.26") |
| Weight | 0.6 kg (1.3 lbs) |
| Color | Black RAL 9011, White RAL 9002, Aluminum Natural |
| Installation | Modules slide and lock from above the table, no screws |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Storage Temperature | -40 to 70 C (-40 to 158 F) |
