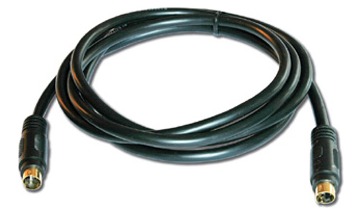

Kramer C-SM/SM s-Video Cable

Kramer's C-SM/SM is a high performance s-Video (Y/C) cable with molded 4-pin mini DIN connectors at each end. Luminance and chrominance signals are carried on separate internal coaxes for superior quality over composite video.

Carried here as C-SM/SM-15; C-SM/SM-35. Full specifications are listed under the Specs tab.

Coax Center Conductor	26 AWG 7/34 tinned copper
Dielectric	Foam polyethylene
Shield	(A) 90% spiral 38 AWG tinned copper
Drain Wire	24 AWG 7/32 tinned copper
Coax Jacket Colors	Yellow, white
Outer Jacket	PVC
Outer Jacket Color	Dark gray with white lettering
Center Conductor	0.474mm (0.018in)
