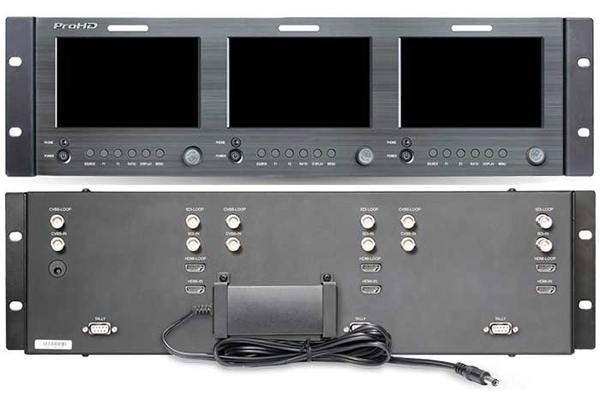

JVC DT-X51HX3 Triple Rackmount LCD Monitor

The DT-X51HX3 packs three independent 5-inch LCD panels into one 3RU frame, giving a small studio, flypack, or edit bay three affordable confidence monitors in the space of a single rack unit. Each panel runs at 800 x 480 with a 16:9 aspect ratio that adjusts to 4:3, a 500:1 contrast ratio, and 350 cd/m2 brightness, with wide 140-degree horizontal and 120-degree vertical viewing so the picture stays readable off-axis.

Every display is fed independently and carries the essential connectivity of a broadcast monitor: loop-through 3G/HD/SD-SDI, loop-through HDMI, and loop-through composite, plus a front-panel 3.5mm earphone jack per screen. The chassis fits a standard 19-inch EIA rack and tilts up 30 degrees for comfortable viewing from below.
