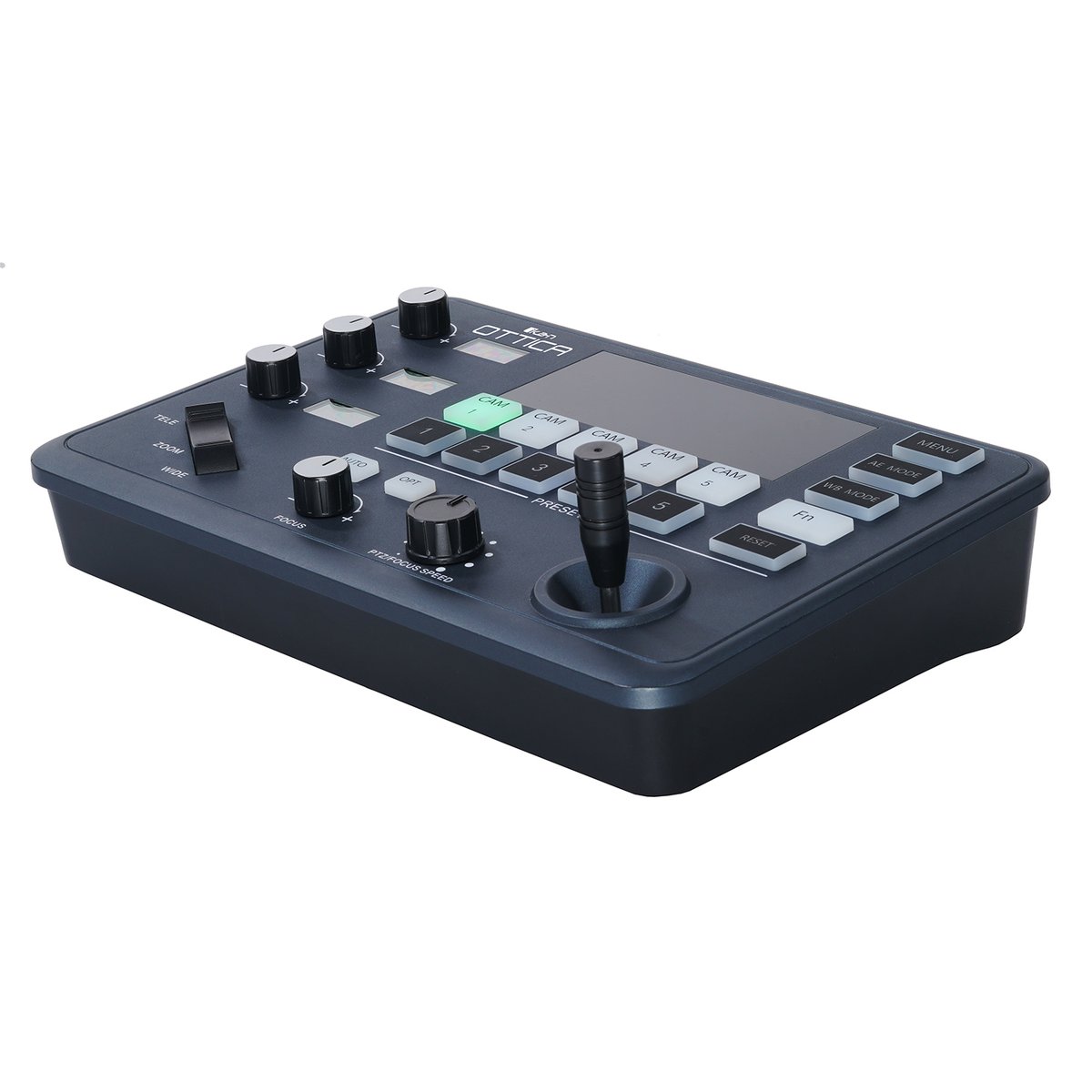

Ikan OTTICA IP PTZ Camera Controller, Supports IP VISCA, Serial Port VISCA, Pelco-D/P
The Ikan OTT-CONTROLLER-V2 is the OTTICA IP PTZ Camera Controller, Supports IP VISCA, Serial Port VISCA, Pelco-D/P. Ikan's own feature list covers RJ45, RS422, RS232, RS485 Control Interfaces, Control up to 10 Cameras, and 3 Knobs Control Camera Parameters Displayed on Designated LED Screens.
Published figures include controllable cameras of 10; communication protocol of VISCA, PELCO P/D, UDP; number of led displays of 4 Color LED Display Screens; number of camera channels of 5. Ikan also lists Streamlined Camera Preset Configuration. In the box: 1 x PTZ Controller, 1 x Phoenix Contact 4 pin 3.81mm Terminal, 1 x Power Adapter, 1 x User Manual.
| Controllable Cameras | 10 |
|---|---|
| Communication Protocol | VISCA, PELCO P/D, UDP |
| Number of LED Displays | 4 Color LED Display Screens |
| Number of Camera Channels | 5 |
| Variable Knobs | 4 |
| Joystick | 2-Axis |
| Zoom Mode | Tele-Wide Bridge Keys |
| Included | 1 x PTZ Controller, 1 x Phoenix Contact 4 pin 3.81mm Terminal, 1 x Power Adapter, 1 x User Manual |
| Model | OTT-CONTROLLER-V2 |
