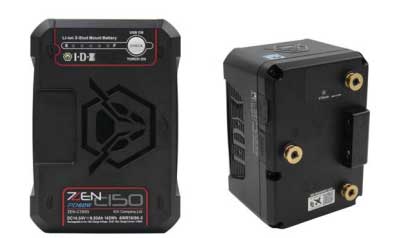

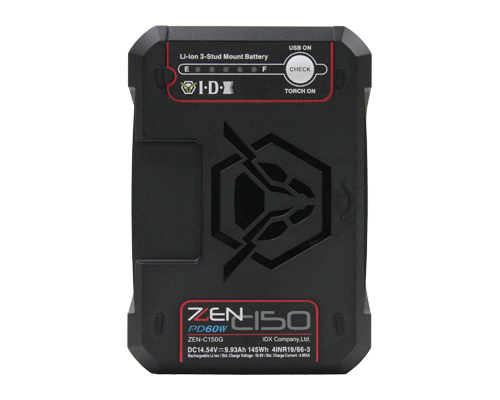

IDX ZEN-C150G Gold Mount Battery

The IDX ZEN-C150G is a 145Wh gold-mount (three-stud) Lithium-Ion battery built for power-hungry cinema rigs. At 14.5V and 9.9Ah it carries a high load, delivering up to 15.2A to run camera-plus-accessory setups that would stall a lighter pack, and it fits the three-stud chargers most crews already own.

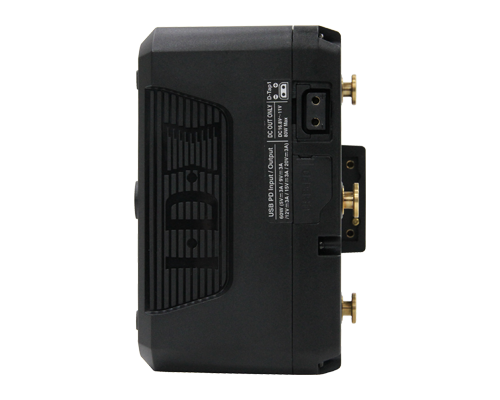

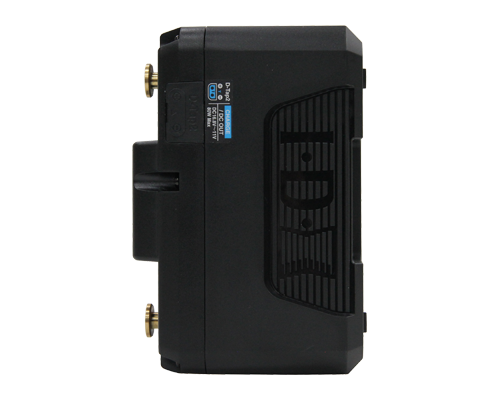

Two built-in D-Tap outputs each handle up to 80W for monitors, lights, and wireless gear, while a USB-C Power Delivery port moves power in both directions, charging the battery or feeding a USB-C device up to 60W. Full protection against over-charge, over-discharge, over-current, and over-temperature is built in, and the pack weighs about two pounds.

ChemistryLithium-Ion
Capacity145Wh (14.5V / 9.9Ah)

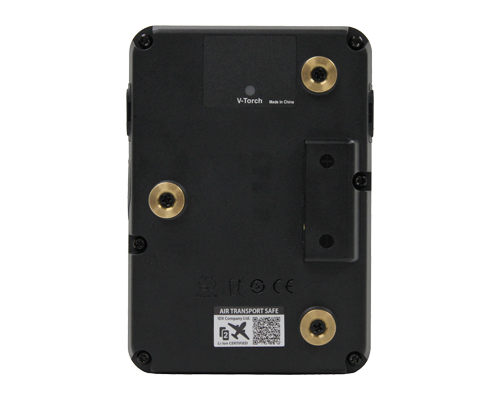

MountGold / 3-stud
Max Discharge15.2A (168W load)
D-Tap Outputs1x standard, 1x D-Tap Advanced (up to 80W each)
USB-C PDTwo-way, up to 60W
Weight2.05 lbs approx.
Charger CompatibilityMost late-model third-party three-stud chargers
