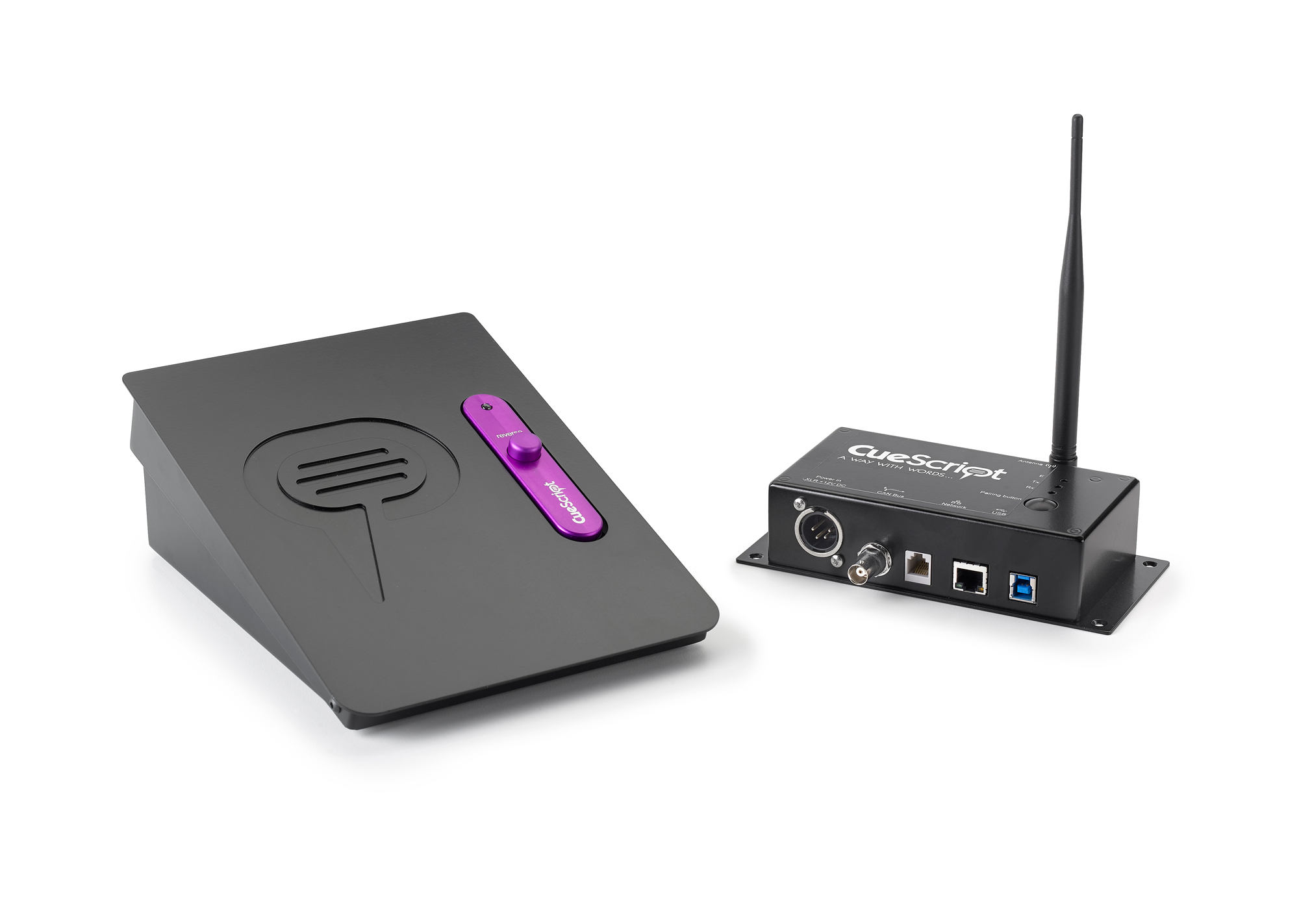

CueScript CSFSCW Wireless Foot Scroll Control

The CSFSCW is the cable-free version of CueScript's foot control. It behaves like an accelerator: press further, scroll faster, with the pedal resistance and travel tuned so the operator can hold a steady read standing or seated. A dedicated reverse button gives immediate backward movement rather than a switch that has to be thrown and thrown back.

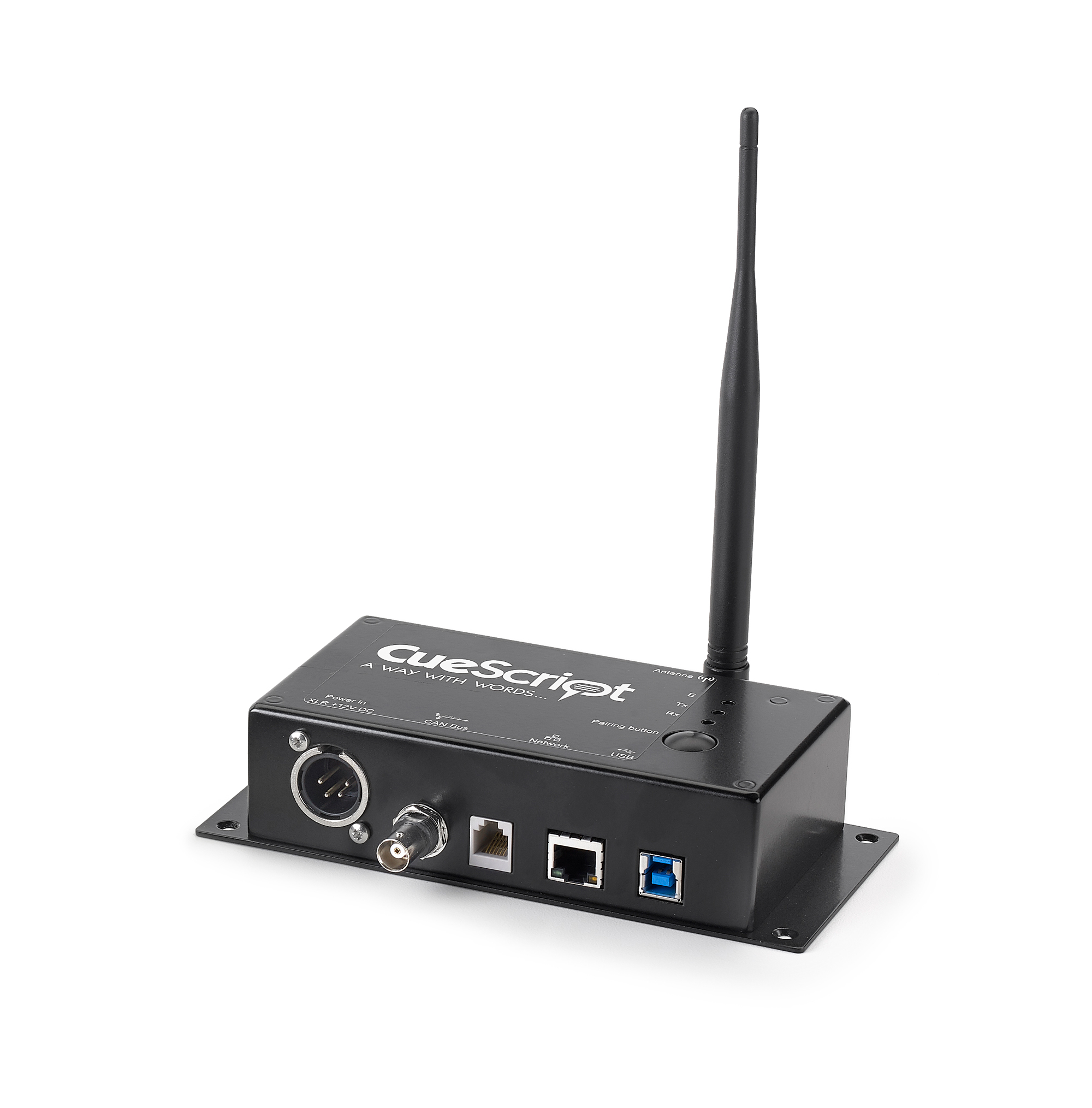

The receiver connects to CueiT over USB or Ethernet with PoE, matching the rest of the CueScript control range. Note that the pedal itself needs an external 12V supply, which is not included in the box; the control can also run from a 12V DC mains source where one is available at the operating position.

Type	Wireless foot pedal scroll control, transmitter and receiver
Frequency	915 MHz (US) / 868 MHz (rest of world)
Operating Distance	Up to 300 m at 868 MHz, up to 100 m at 915 MHz
Receiver Connectivity	USB or Ethernet (PoE) to CueiT
Pedal Action	Progressive travel sets scroll speed; dedicated reverse button
Pedal Power	External 12V source required, not included
Multi-System Use	Protocol allows multiple transmitter/receiver pairs on one frequency without interference
