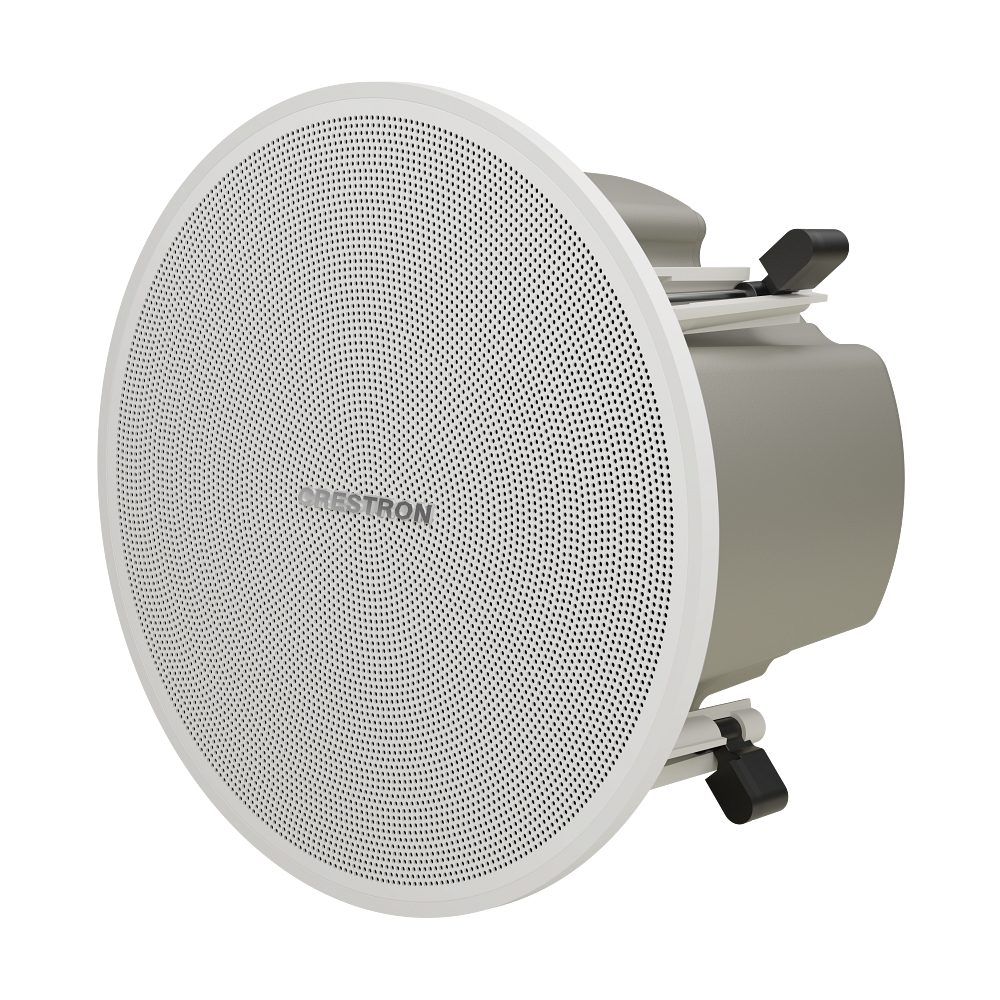

Crestron Saros IC4P-W 3 in. Passive Full-Range In-Ceiling Speaker, White Textured

The Saros IC4P-W is a 3 in. full-range passive in-ceiling speaker, the wired counterpart to the active DM NAX IC4A. In a distributed system the active unit takes the drop and the passive units extend coverage off an amplifier channel, which keeps the network port count down in large open plans.

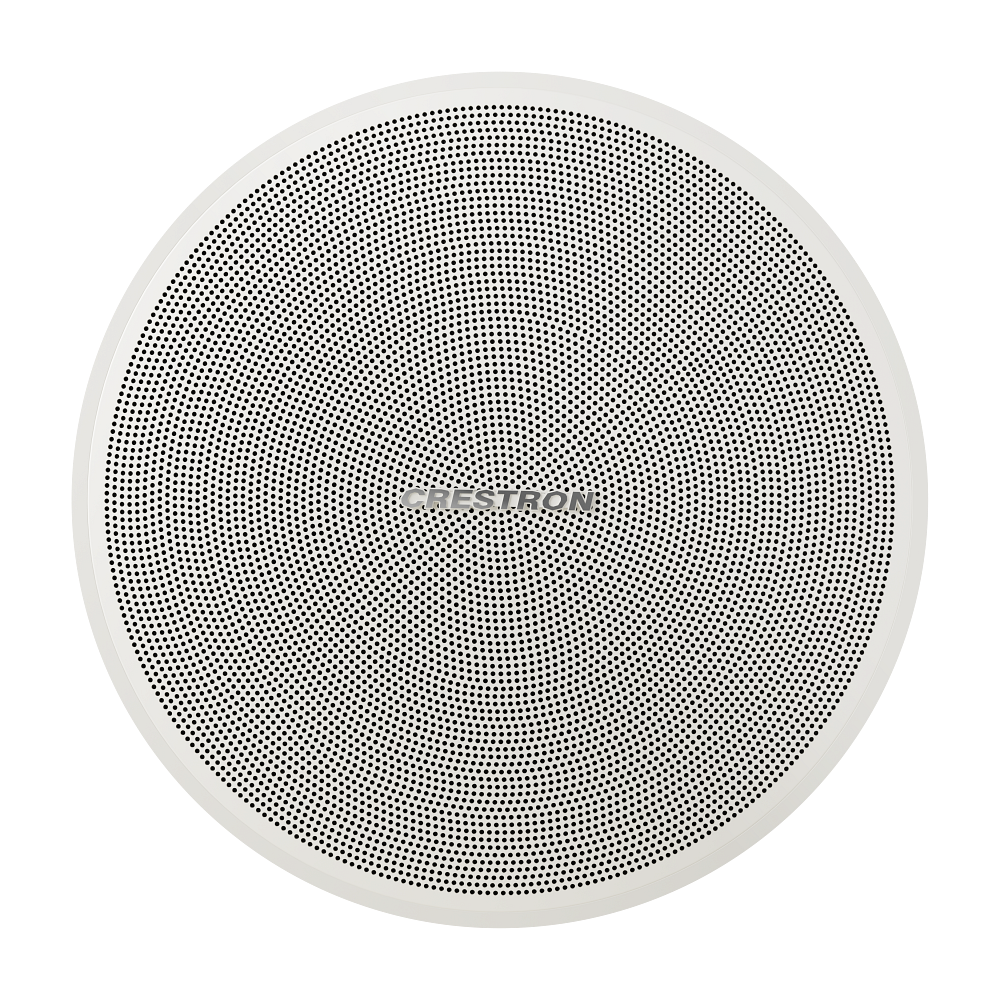

It shares the small ceiling aperture and the white textured finish of the active model, and takes the same SPKA-GRILLE-SAROS DM-NAX-IC4A/P-W grilles, sold separately.

Features & Performance - Frequency Response90 Hz to 30 kHz (+/-3 dB)
Features & Performance - BMR Power Handling25 W
Features & Performance - Sensitivity86 dB @ 1 W/1 m

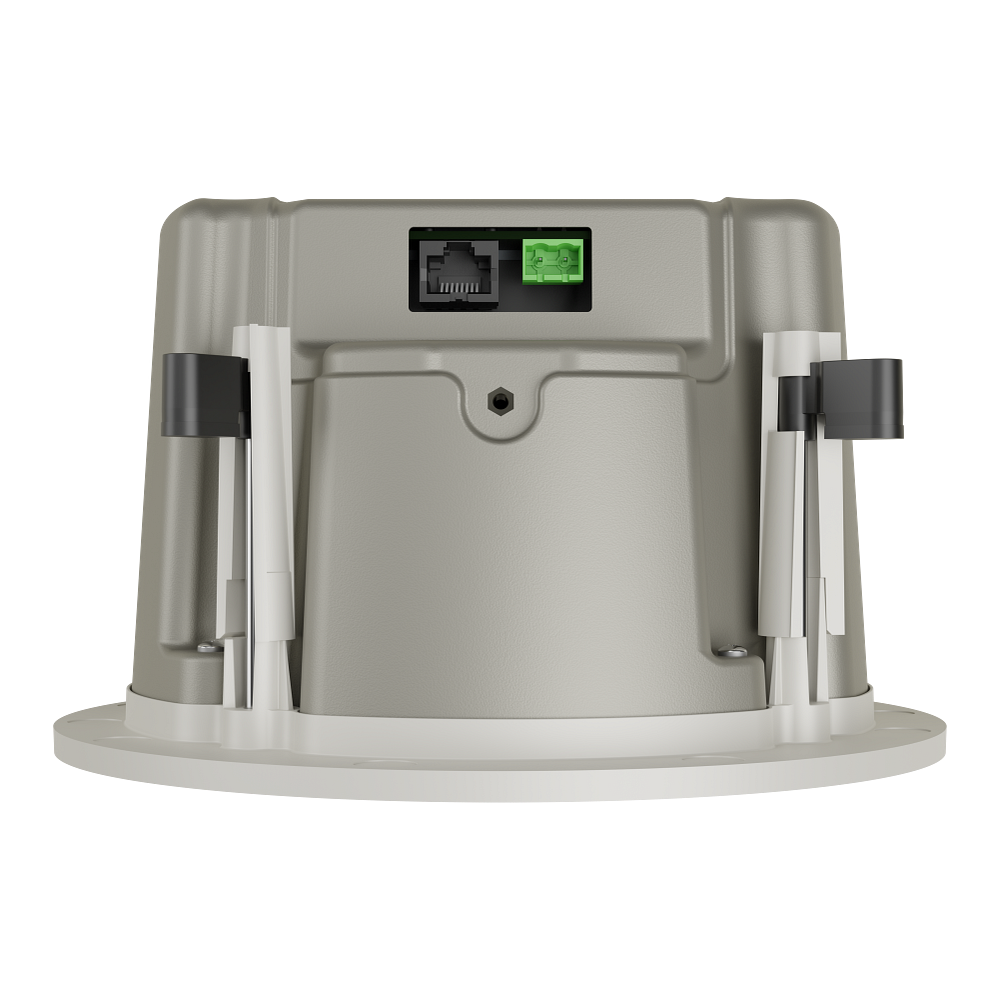

Connectors - 2-Pin Audio Input(1) 2-pin 5 mm detachable terminal block; Speaker input (alternate); For use with an external amplifier; Impedance: 8 Ohms (7.4 Ohms nominal); Maximum Wire Size: 12 AWG; Do not connect both inputs simultaneously
Dimensions - Baffle Diameter7.49 in. (191 mm) not including mounting clamps
Weight2.35 lb (1.06 kg)

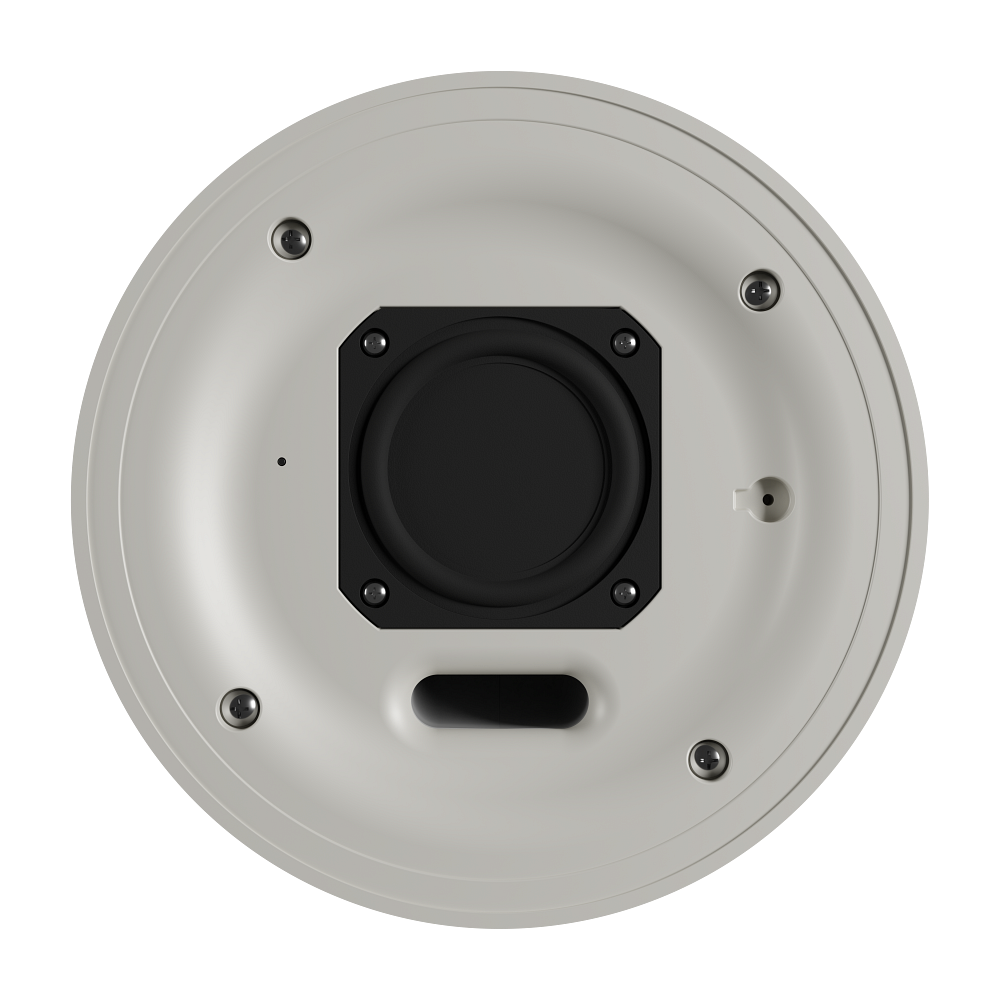

Features & Performance - Transducer2.83 in. (72 mm) Balanced Mode Radiator (BMR)
Features & Performance - Coverage170 conical (speech, up to 4 kHz); 140 conical (music, up to 8 kHz)
