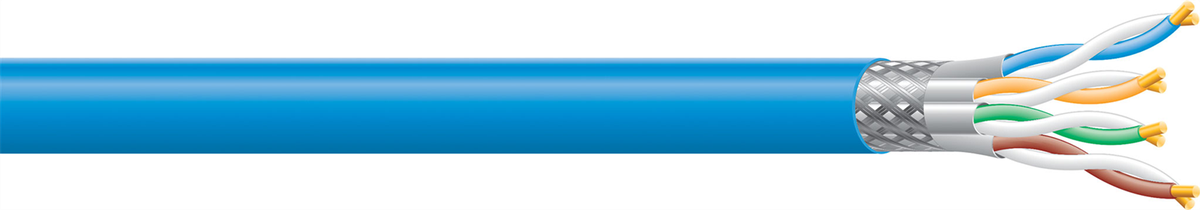

Crestron DM-CBL-ULTRA-P DigitalMedia Ultra Cable, Plenum Type CMP, Spool

The Crestron DM-CBL-ULTRA-P is DigitalMedia Ultra bulk cable on a spool, a Plenum Type CMP, Spool. Pull it for DM 8G+, HDBaseT and 10GBASE-T runs between Crestron endpoints, then terminate it in the field.

Shielding is tinned copper braid (>50% coverage). Conductors are 22 AWG solid bare copper. Characteristic Impedance: 100 Ohms nominal. Terminate it in the field with the DM-CONN-ULTRA connectors and the matching DM-CRIMP-ULTRA tool.

Conductors	22 AWG solid bare copper
Shield	Tinned copper braid (>50% coverage)
Characteristic Impedance	100 Ohms nominal
Insulation	Foam FEP
Material	Low Smoke PVC
Outer Diameter	0.304 inch (7.7 mm) nominal
Minimum Recommended Bend Radius	2.44 inches (62 mm)
Maximum Recommended Pull Tension	25 lbf (111 N)
