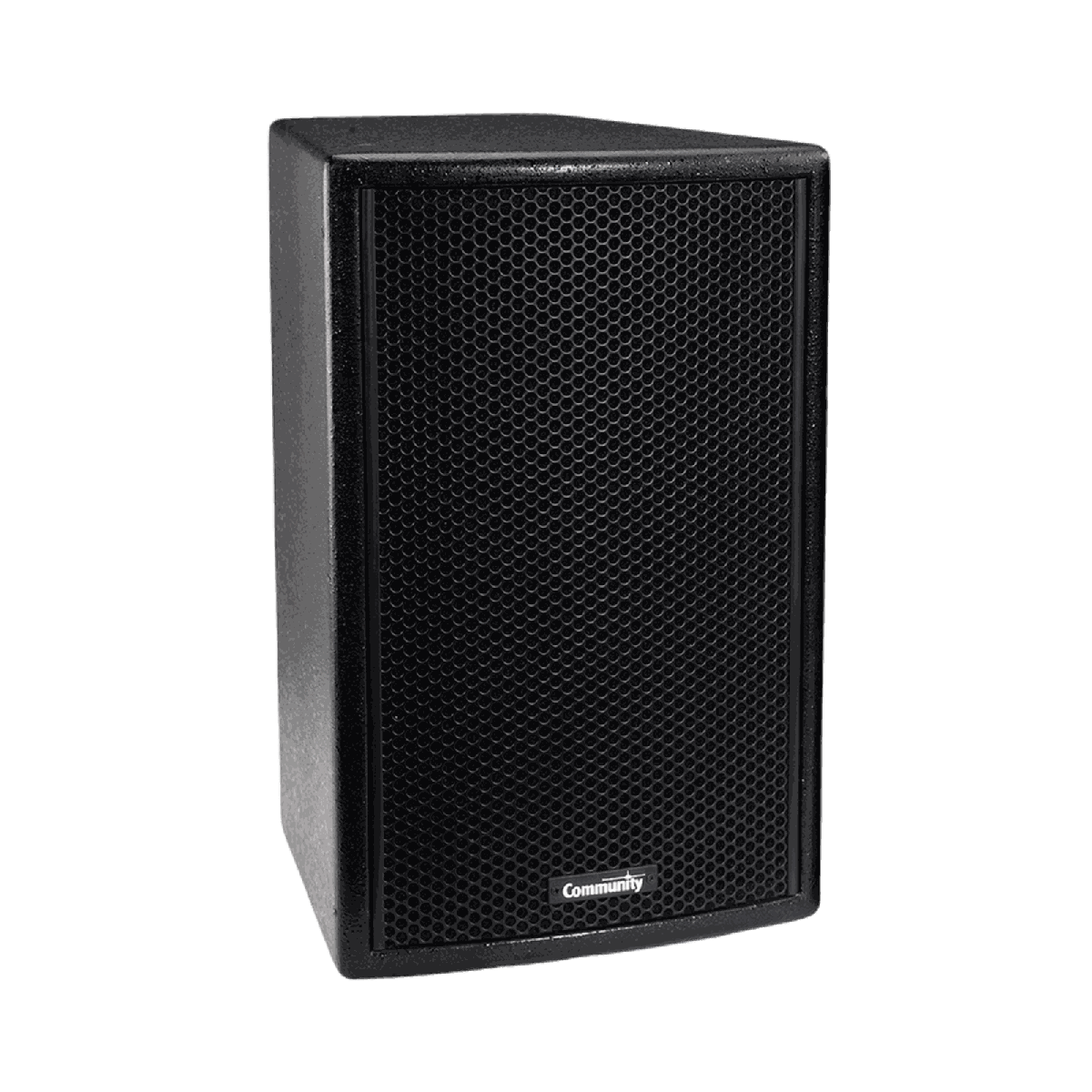

Name: Community Professional Biamp Community V2-8B Loudspeaker
Brand: Community Professional
Price: 736.00 USD
Availability: InStock

The Biamp Community V2-8B is a compact two-way, full-range, trapezoidal, vented bass, user rotatable horn built for business audio and installed sound systems. Drivers are LF: 1 x 8-inch cone; Drivers - HF: 1 x 1-inch; Driver Protection: DYNA-TECH protection circuitry. Its operating range is 70 Hz to 18 kHz (-10 dB). Frequency response is quoted at 100 Hz to 16 kHz (+/-3 dB).

Nominal impedance is 8 ohms; Minimum Impedance: 6.1 ohms @ 180 Hz. Audio: NL4-compatible locking connector with terminal strip in parallel. The enclosure is Trapezoidal (22.5 deg included angle) 18mm, 11-ply cross-laminated birch. Mounting provision: 9 x M6 threaded rigging fittings 4 x M6 threaded fittings for third-party suspension products.

Loudspeaker Type	Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
Drivers	LF: 1 x 8-inch cone; Drivers - HF: 1 x 1-inch; Driver Protection: DYNA-TECH protection circuitry
Operating Range	70 Hz to 18 kHz (-10 dB)
Frequency Response	100 Hz to 16 kHz (+/-3 dB)
Sensitivity	(1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
Impedance	Nominal Impedance: 8 ohms; Minimum Impedance: 6.1 ohms @ 180 Hz
Dimensions (H x W x D)	17 inches (433 mm) x 11.3 inches (287 mm) x 11.7 inches (298 mm)
Beamwidth	Nominal -6dB Beamwidth: 90 deg H x 70 deg V (in vertical position)
