Clear-Com VI-PNLB-24P V-Series IrisX 24-Key 2RU Pushbutton Panel

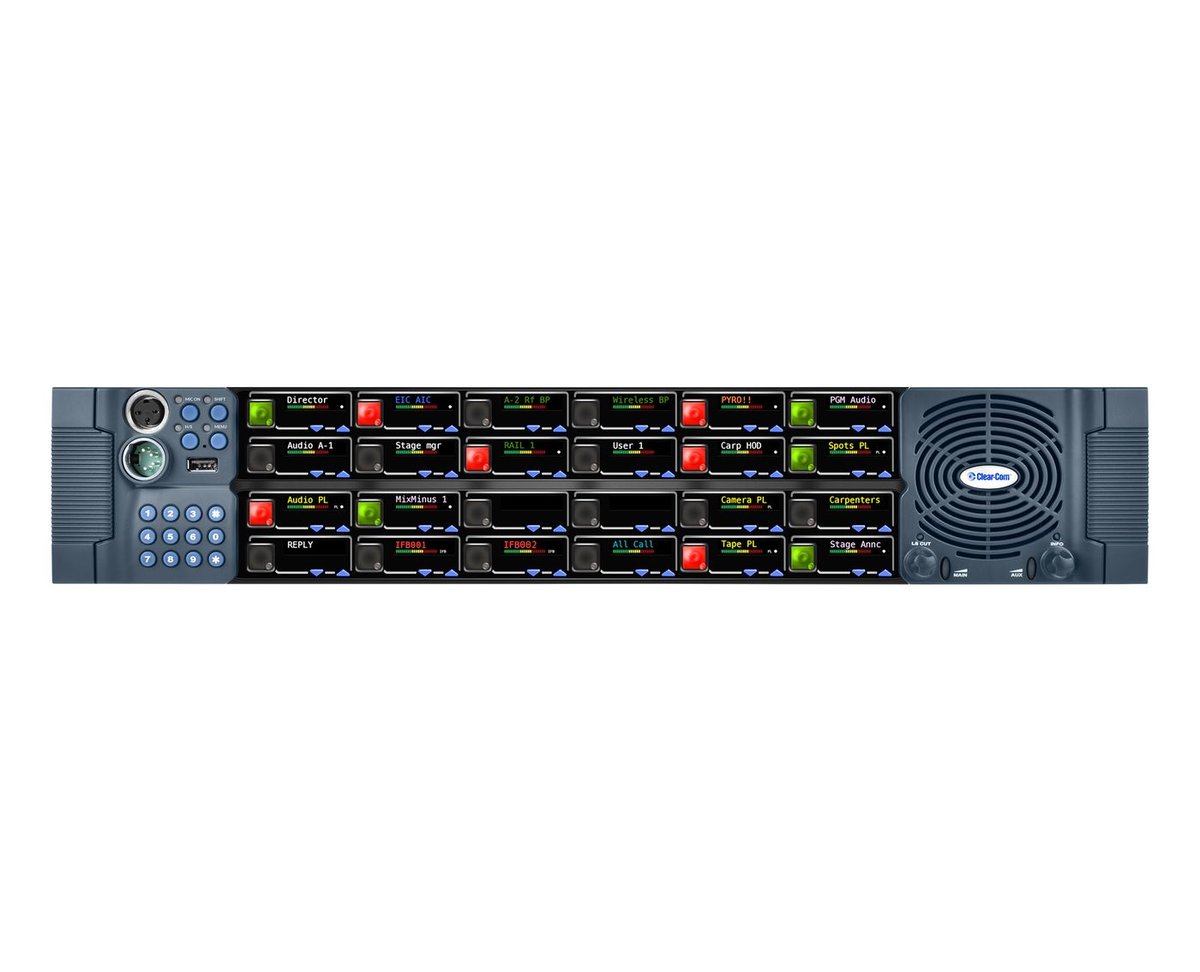

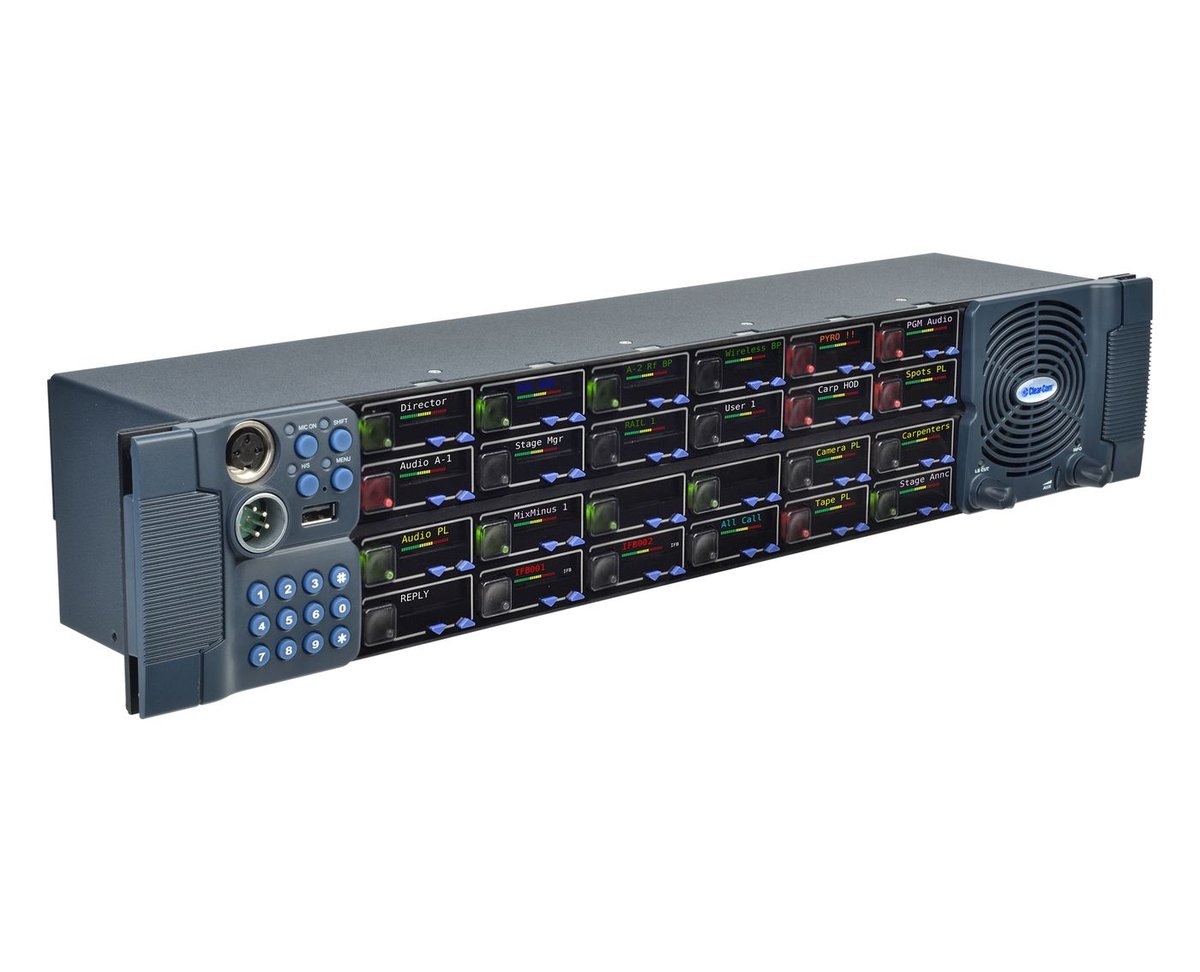

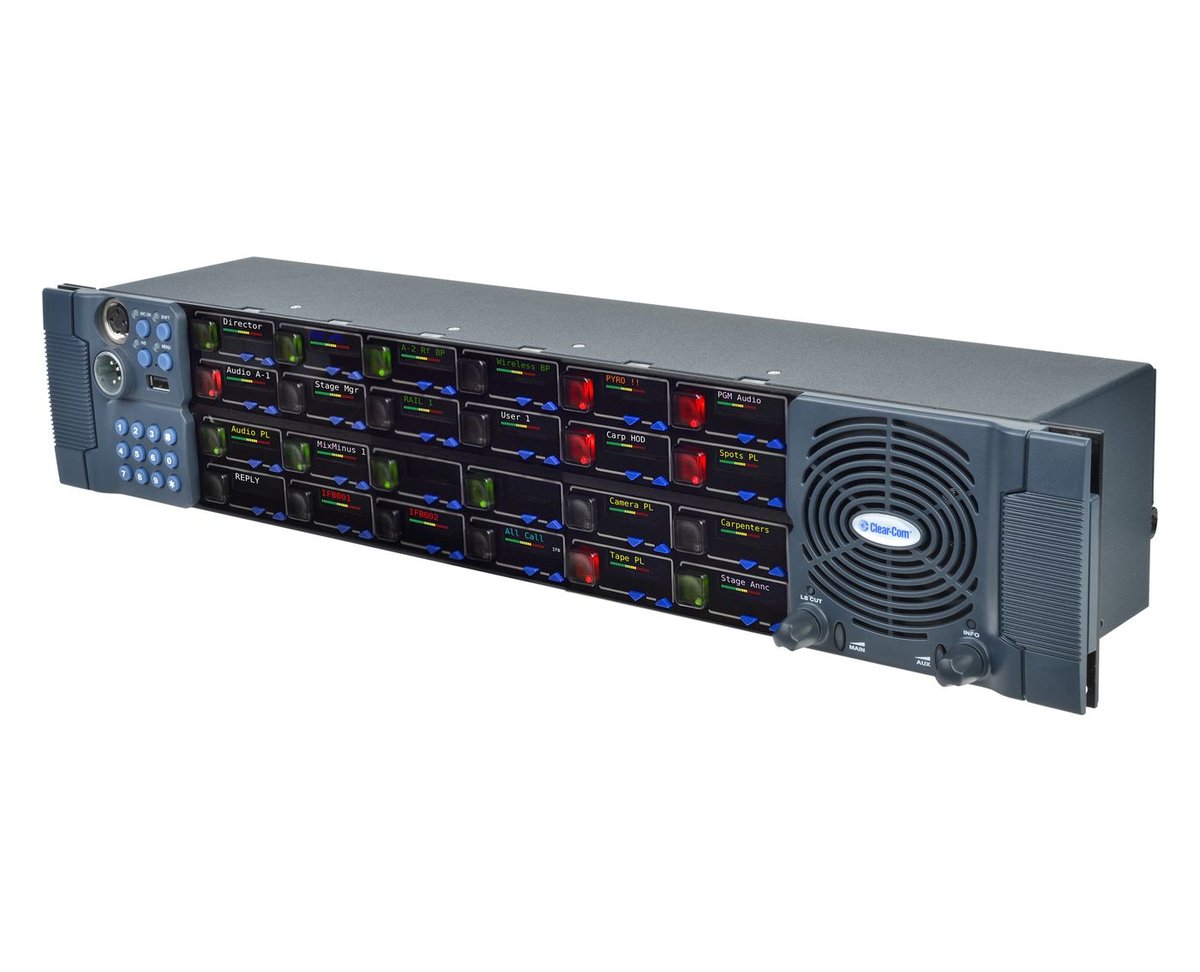

The VI-PNLB-24P is the 2ru rack IrisX panel with 24 assignable keysets. Each keyset carries its own 10-character colour display, a volume bar and a multi-colour tally light, so an operator reads assignment and state off the key itself instead of inferring it. Multi-function pushbutton key with level control buttons per keyset. A numerical keypad is fitted on the 2RU panels, and the 2RU lever build adds four function keys. A shift page button doubles the reachable assignments without adding hardware.

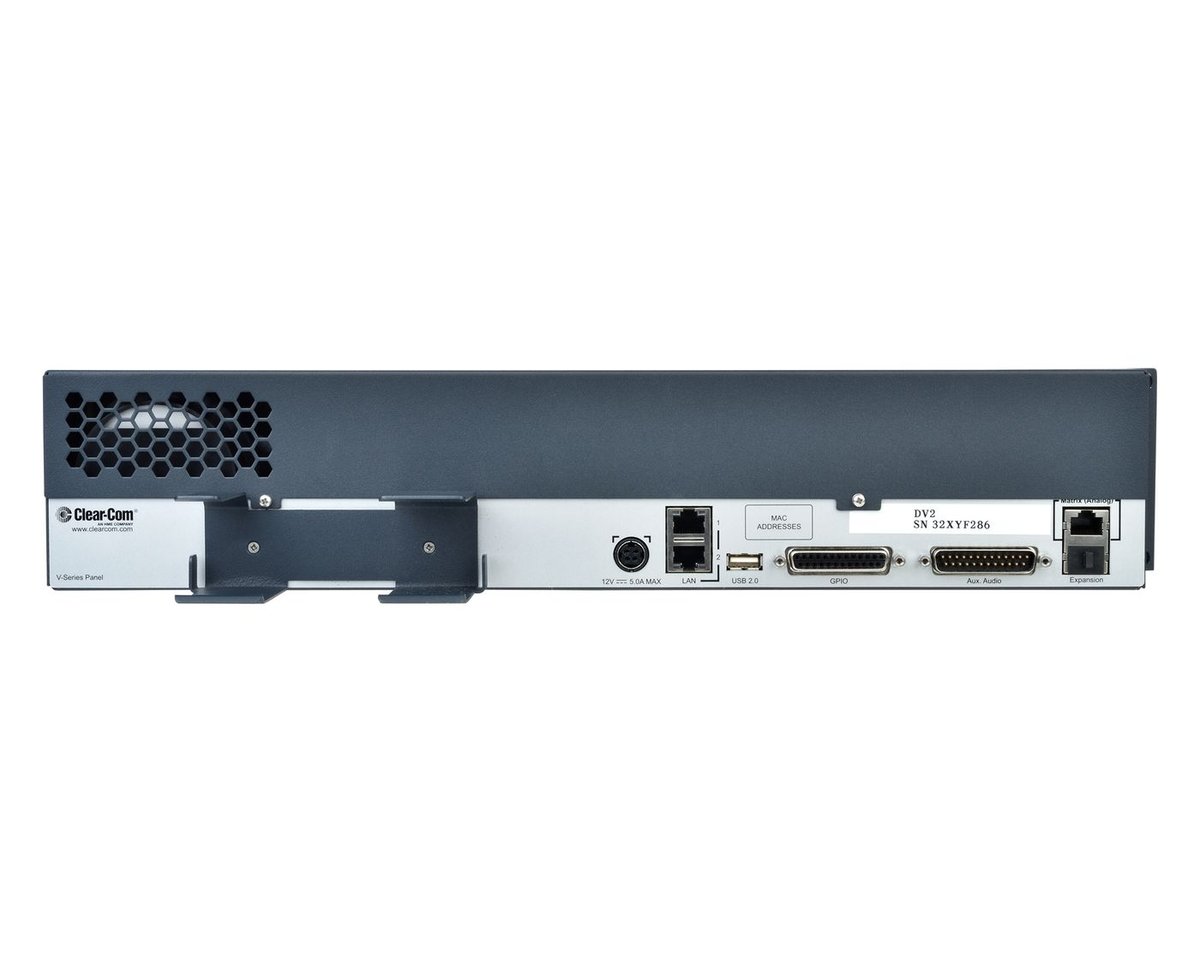

Interfacing is what separates a keypanel from a station. A DB25M auxiliary connector carries a second headset, two external I/O paths, a main output and a hot mic output, and a DB25F provides four GPI and two GPO for tally and machine control. Two RJ45 LAN ports allow a redundant or daisy-chained network path, with a further RJ45 for an expansion panel and one for Eclipse MVX analog. Order -X4, -X5 or -X7 to match the house headset connector.
