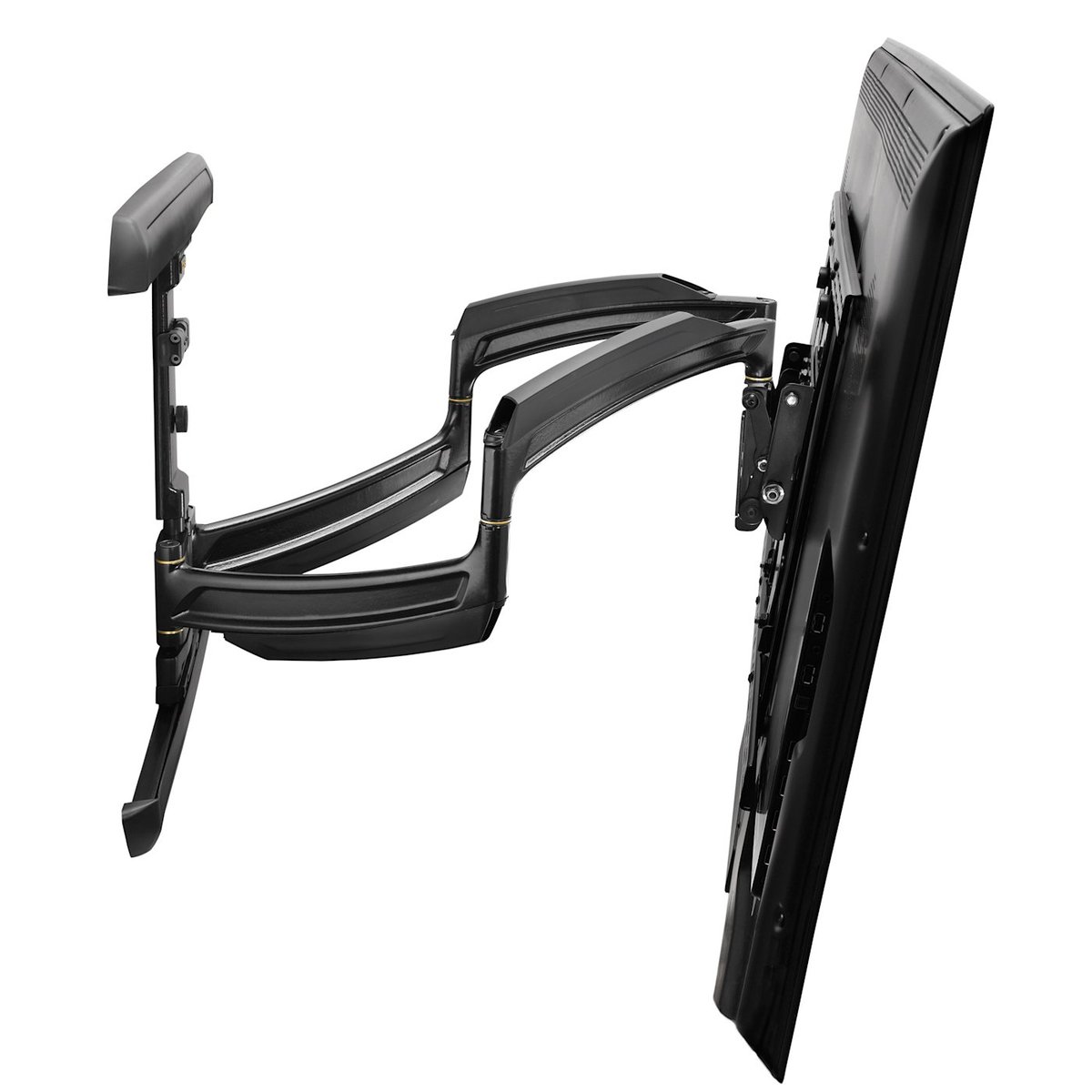

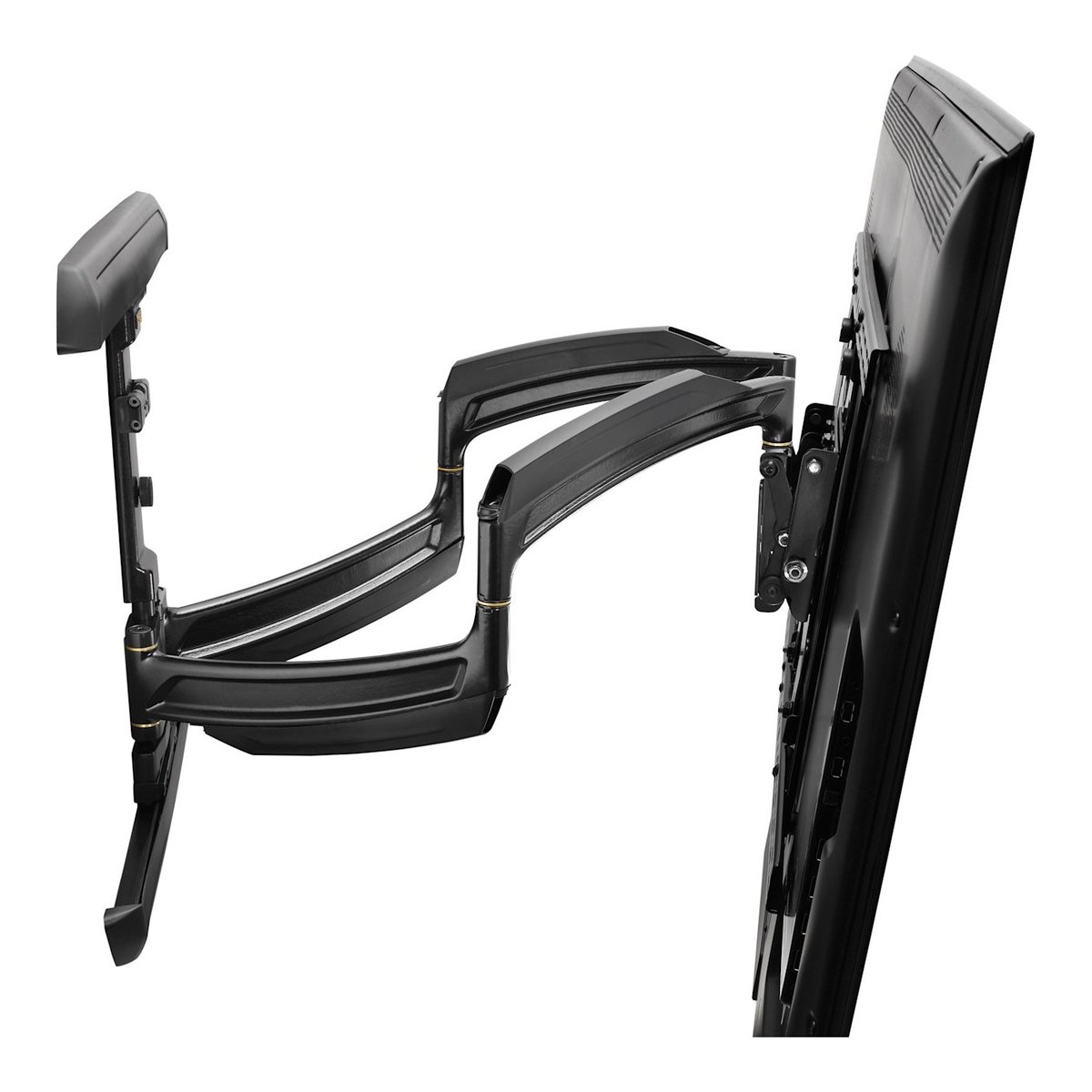

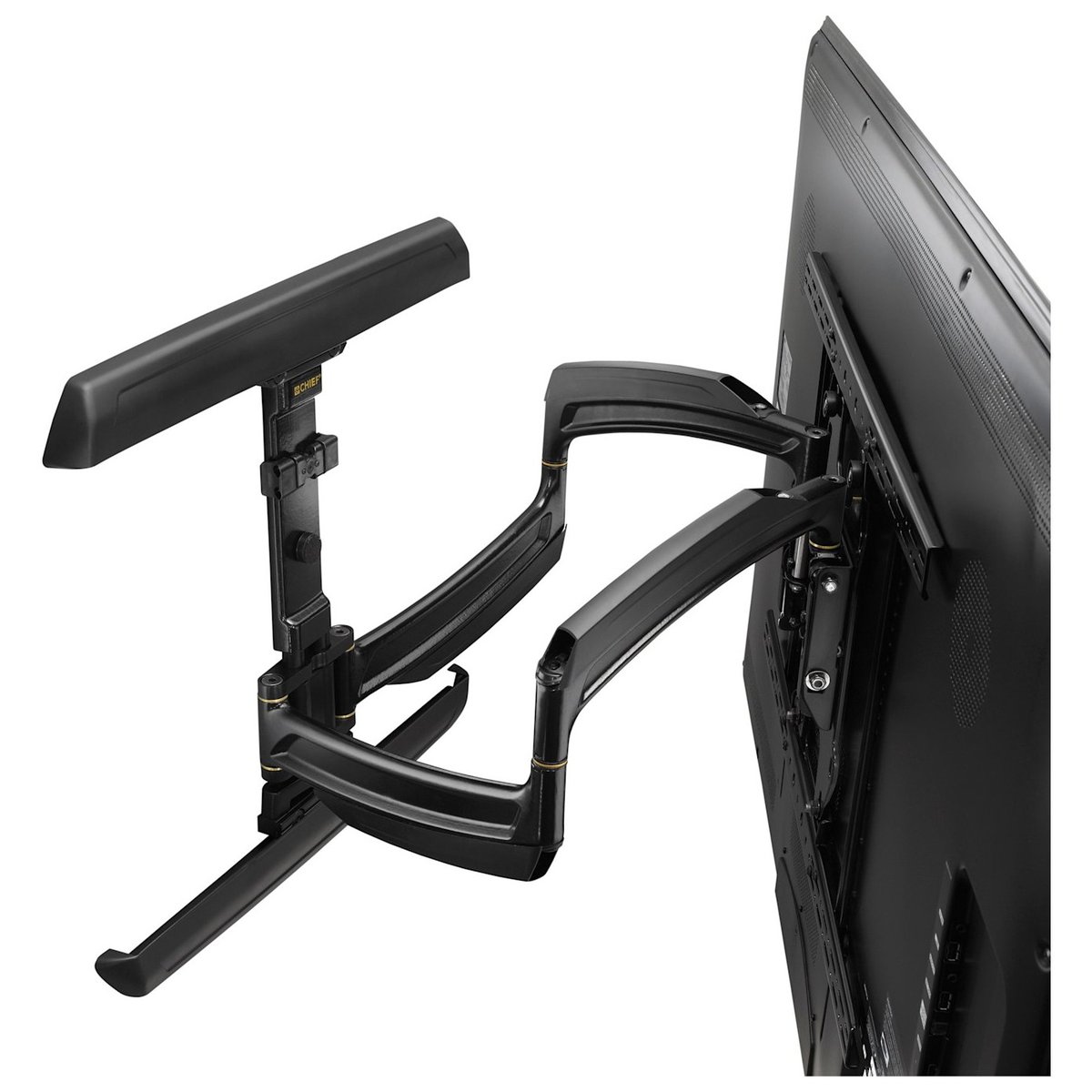

Chief TS525TU Large Thinstall Dual Swing Arm Wall Display Mount, 25 in Extension

Thinstall is Chief's answer to the complaint that full-motion mounts stick out. Folded home, the TS525TU holds the panel 2 inches off the wall - close enough to read as a flat mount - and still pulls out 25 inches when the screen has to turn toward the room.

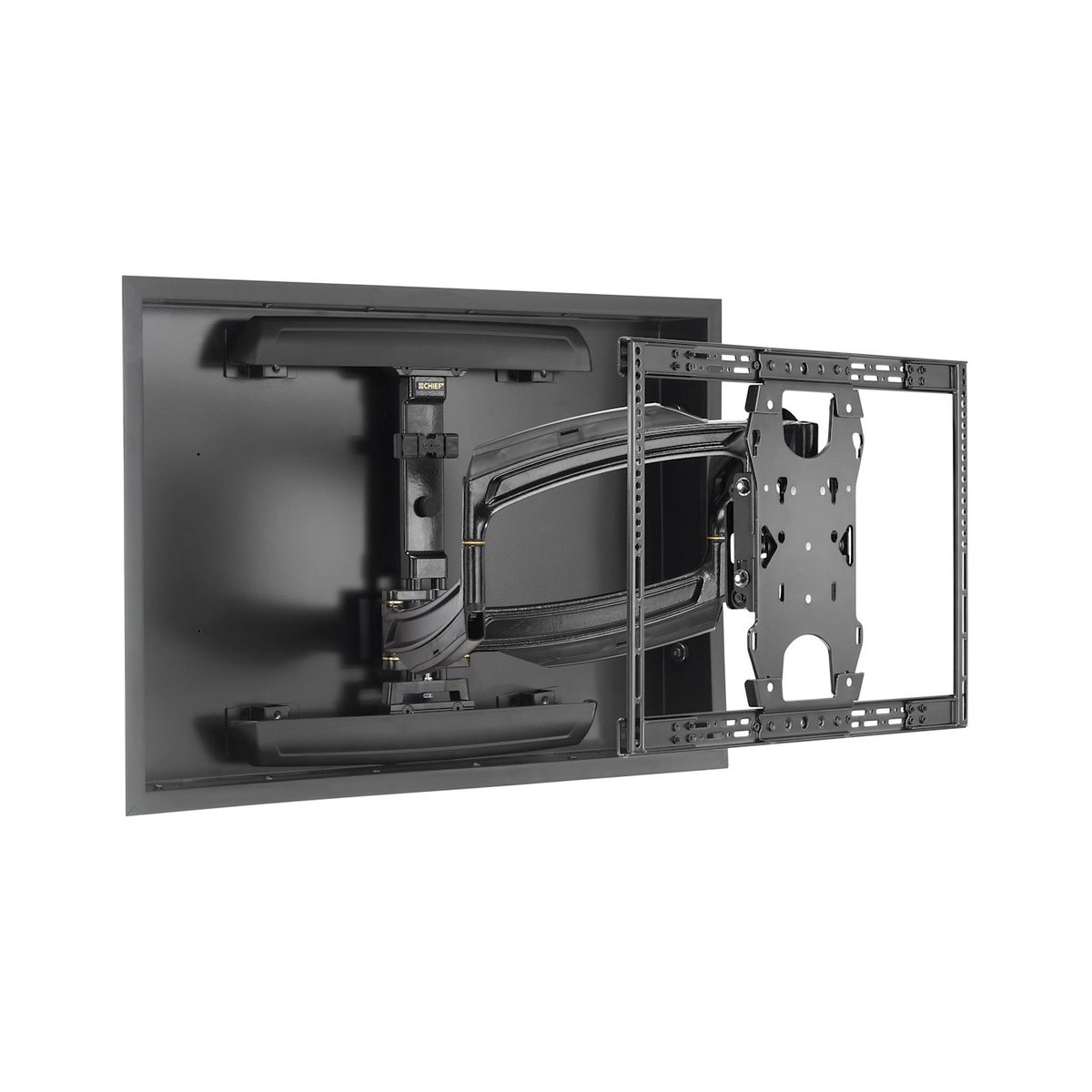

Installation is a one-person job: fix the top rail, then slide the assembly on. Sixteen inches of lateral shift gets the display centred on the room after the rail is up, and post-installation leveling roll squares it. Centris tilt covers 0 to -15 degrees. It takes 42 to 75 inch displays up to 125 lb on dual studs, and accepts panels up to 3 inches thick. In-wall installation is possible when a TA500 is bought with the mount. UL Listed and OSHPD certified.

Display size	42 - 75 in (1067 - 1905 mm)
Weight capacity	125 lb (56.7 kg)
VESA mounting pattern	100 x 100 mm up to 800 x 400 mm
Maximum extension	25 in (63.5 cm); minimum depth 2 in (5.1 cm)
Lateral shift	16 in (40.6 cm)
Tilt	0 / -15 degrees
Wall stud compatibility	Dual stud; maximum screen thickness 3 in (76.2 mm)
Certifications	UL Listed, OSHPD
