Chief LTTU Large Thinstall Tilt Wall Mount

Chief built the Thinstall tilt mounts for televisions that are 2 inches deep or less, and the mount is shaped to match: 0.75 inches minimum depth, so the panel keeps looking as thin on the wall as it did in the showroom. It is only compatible with displays at or under that 2 inch thickness.

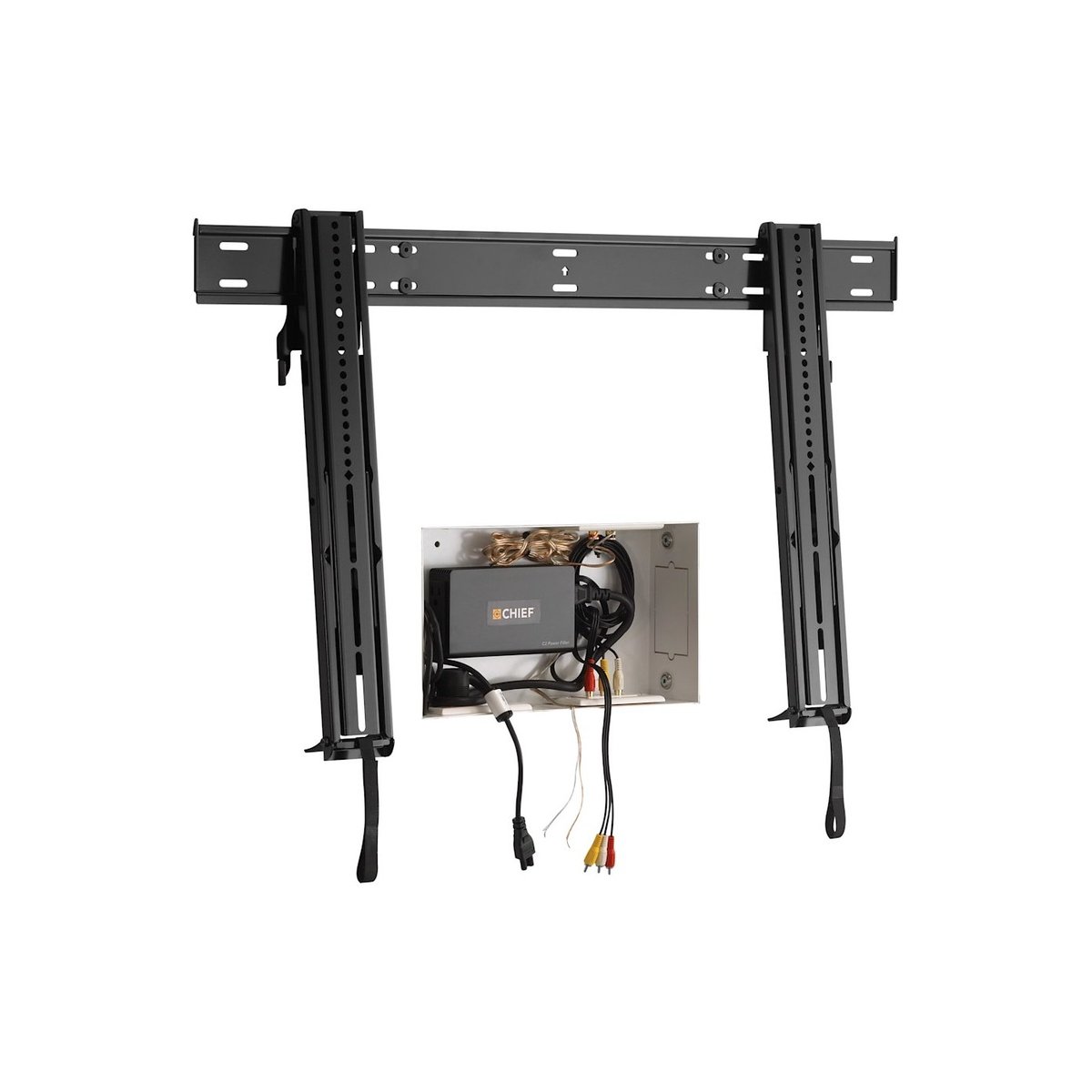

The bracket is a single piece of steel carrying two tilting interfaces, each with a sliding security flag. GlideLock latches without tools, which is what makes a two-person hang quick. Twelve degrees of fingertip tilt handles glare, a cable stand and bottom pullout keep the connections reachable, and lateral shift is available - how much depends on the display's mounting pattern. Landscape only. Because the mount sits so close to the wall, Chief recommends an in-wall accessory box for the outlet.

Display size	32 - 65 in (813 - 1651 mm)
Weight capacity	100 lb (45.4 kg)
VESA mounting pattern	200 x 200 mm - 800 x 500 mm
Maximum screen thickness	2 in (50.8 mm)
Minimum depth	0.75 in (1.9 cm)

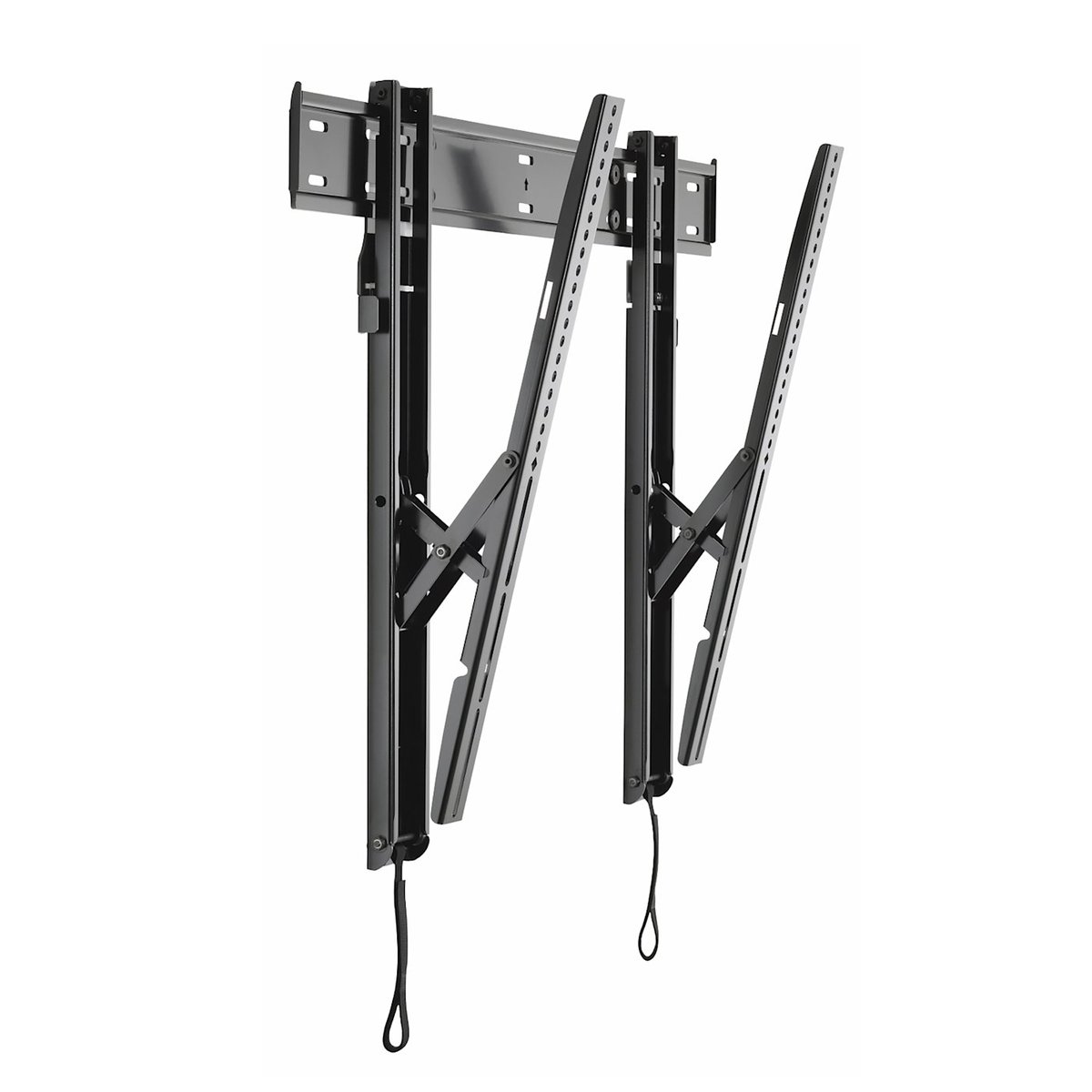

Tilt	0 to -12 degrees
Wall stud compatibility	16 in (406 mm), 20 in (508 mm) or 24 in (610 mm)
Orientation	Landscape only; UL Listed
