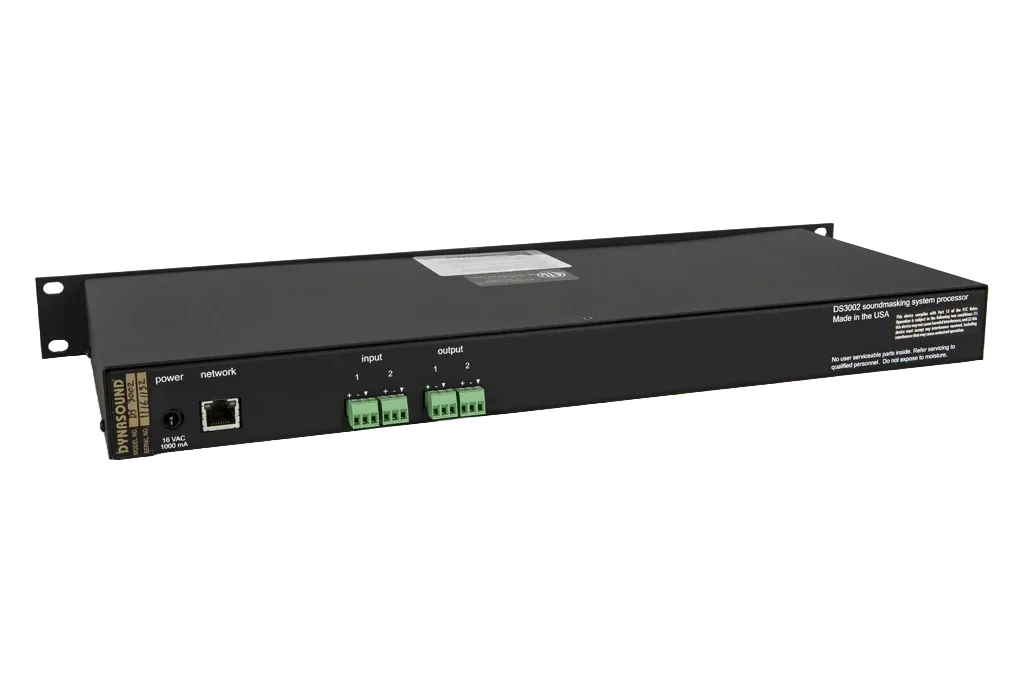

Biamp Cambridge DS3002 Sound Masking Generator

The Biamp Cambridge DS3002 is a sound masking generator built for sound masking and speech privacy systems. Frequency response is quoted at Sound Masking: 100Hz to 10kHz; Music/Paging: 20Hz to 20kHz. Inputs are Captive Screw Terminal.

Rated output power is 16VAC @ 1.0A. Audio: Emergency Mute; Function: Optional via Software; Connector: DS-CP8200. Network connections are RJ-45 with Ethernet cable (Cat 5e and above). Power consumption is Maximum: (16VAC): 22W.

Frequency Response	Sound Masking: 100Hz to 10kHz; Music/Paging: 20Hz to 20kHz
Input Type	Captive Screw Terminal
Audio	Emergency Mute; Function: Optional via Software; Connector: DS-CP8200
Network Connection(s)	RJ-45 with Ethernet cable (Cat 5e and above)
Power Output	16VAC @ 1.0A
Power Consumption	Maximum: (16VAC): 22W
Dimensions (H x W x D)	1.75 inches (44mm) x 19 inches (483mm) x 8 inches (203mm)
Included Accessories	Ethernet Crossover Cable
