BirdDog X1 PTZ Camera

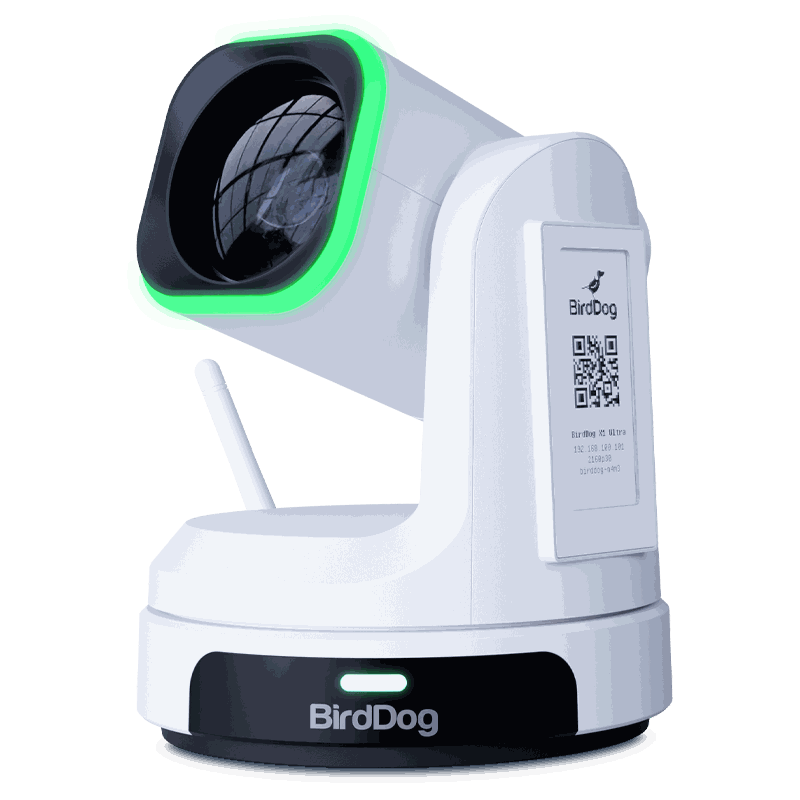

The BirdDog X1 is a compact NDI|HX3 PTZ camera aimed at streaming, worship, and hybrid meeting rooms. A Sony 1/2.8-inch CMOS sensor feeds a 20x optical zoom (5.5 to 110mm) and delivers 1080p at up to 60fps. AI auto-framing keeps a presenter centered without an operator, and a daylight-visible halo tally ring around the lens tells the room and the talent when the camera is live.
Connections cover the bases: an HDMI output, a USB/UVC output with its own resolution that plugs straight into Zoom, Teams, and similar apps, plus a 100M Ethernet port with PoE (802.3af) that carries NDI|HX2/HX3, SRT, RTSP, and RTMP on one cable. Built-in Wi-Fi 5 adds a wireless path, an E-Ink display labels the camera at a glance, and the head pans 175 degrees each way and tilts from -90 to +90 degrees. This white version blends into bright sets and light rooms, runs on PoE or 12V DC, and ships with an IR remote.
| Sensor | Sony 1/2.8-inch CMOS |
|---|---|
| Zoom | 20x optical (f = 5.5 to 110mm) |
| Resolution | 1080p up to 60fps, 720p |
| NDI | NDI|HX2 / HX3, plus SRT, RTSP, RTMP |
| Outputs | HDMI, USB (UVC), NDI over Ethernet |
| Network / Power | 100M Ethernet, PoE 802.3af, or 12V DC |
| Pan / Tilt | 175 degrees each way pan, -90 to +90 degrees tilt |
| Finish | Black or White, depending on the model selected |
