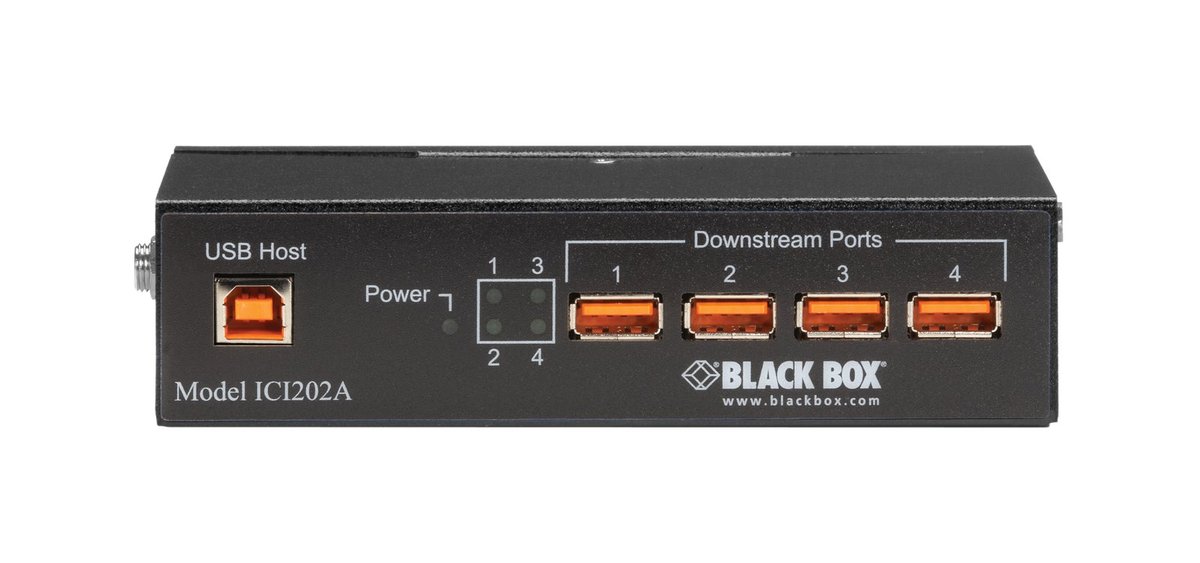

Black Box ICI202A Industrial USB 2.0 Hub with Isolation - 4-Port

The ICI202A fans one port out to several devices: 4-Port. Connectors are Upstream Port: (1) USB Type-B (Female) (high retention with withdrawal of >15 N). Housed in a durable, IP30-rated metal enclosure. UL listed for use in Class 1 Division 2 hazardous areas.

Power: Input: From external 10-30-VDC power supply* (via a terminal block or locking barrel plug input). It measures 1.4-in. H x 5.5-in. W x 3.5-in. D (3.6 x 14 x 8.8-cm) and weighs 1.4-lb. (0.64-kg). Front-panel indication: (6) LEDs: (1) USB Bus Power, (1) External Power, (4) USB Port Ready. In the box: Industrial-Grade USB Hub with Isolation, (1) 1.8m USB Type A/Type B Cable, (2) Panel-mount Adapters with (4) Mounting Screws, DIN Rail Adapter with (3) Mounting Screws, Quick-start Guide.

Connectors	Upstream Port: (1) USB Type-B (Female) (high retention with withdrawal of >15 N); Downstream Ports: (4) USB Type-A (Female) (high retention with withdrawal of >15 N)
Standards	USB 1.1, USB 2.0
Indicators	(6) LEDs: (1) USB Bus Power, (1) External Power, (4) USB Port Ready
Power	Input: From external 10-30-VDC power supply* (via a terminal block or locking barrel plug input); Output: 5 VDC
Dimensions	1.4-in. H x 5.5-in. W x 3.5-in. D (3.6 x 14 x 8.8-cm)
Weight	1.4-lb. (0.64-kg)
MTBF	190,999 hours (MIL 217F parts count reliability calculated)
Country of Origin	United States
