Black Box IC1650A-US Async RS422/485 Repeater - (2) Terminal Block

Serial does not travel far on its own, and the IC1650A-US is Black Box's answer: (2) Terminal Block. Connectors are (2) Terminal Blocks. Isolates one RS-485 device from the rest of an RS-485 system or one local group of RS-485 equipment from another. Connects point-to-point, RS-422 4-wire equipment to an RS-485 2-wire multidrop system.

Power: 120 VAC to 12 VDC wallmount power supply. It measures 1-in. H x 2.4-in. W x 3.8-in. D (2.5 x 6.1 x 9.7-cm).

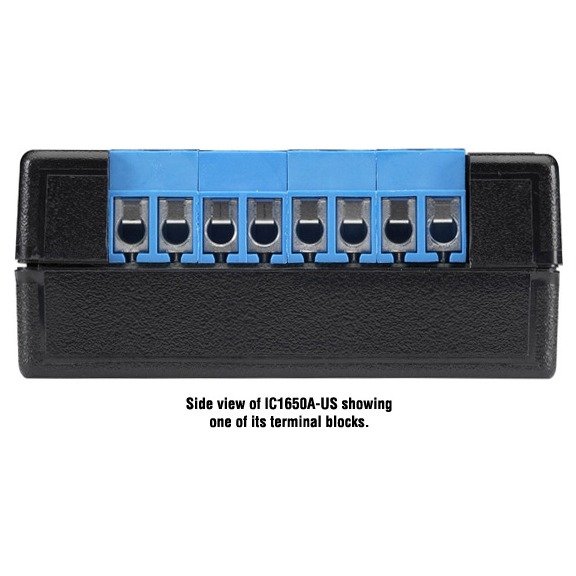

Connectors	(2) Terminal Blocks
Power	120 VAC to 12 VDC wallmount power supply
Dimensions	1-in. H x 2.4-in. W x 3.8-in. D (2.5 x 6.1 x 9.7-cm)
Approvals	CE, RoHS
Country of Origin	United States
Optical Isolation	2000 volts RMS
Supply Voltage	+9-14 VDC at 60 mA (idle state), 170 mA (Full duplex data)
Surge Suppression	Working peak: 6.5 volts, bidirectional over voltage suppressor; Peak power dissipation: 600 watts; Maximum capacitance: 3000 pF
