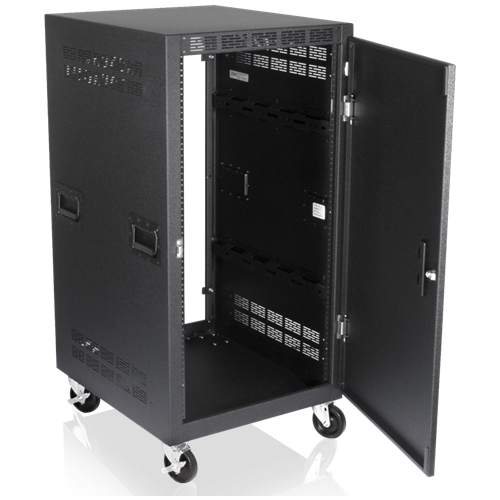

AtlasIED RX21-30SFD 21RU Mobile Equipment Rack, 30" Deep
The RX21-30SFD is a 21-rack-unit mobile equipment cabinet built from 16-gauge cold-rolled steel, sized for touring, event, and install work that needs a full 30" of usable depth on casters instead of a fixed floor rack. Four heavy-duty casters (two locking) carry a 700 lb total weight capacity, with rubber-padded side handles for two-person transport.
Front-mounted vented, locking solid doors protect equipment in transit, and adjustable 11-gauge front-to-rear mounting rails accommodate gear of varying chassis depth. Vented top flanges and three wire-isolation holes round out ventilation and cable routing for a rack that moves as often as it sits still.
| Part Number | RX21-30SFD |
|---|---|
| RU Capacity | 21 RU |
| Depth | 30" (28.5" usable) |
| Weight Capacity | 700 lbs total, 175 lbs per caster |
| Construction | 16-gauge cold-rolled steel, welded frame |
| Mobility | 4 heavy-duty casters, 2 locking |
| Rail Spacing | Standard EIA 5/8" |
| Finish | #962 black epoxy |
