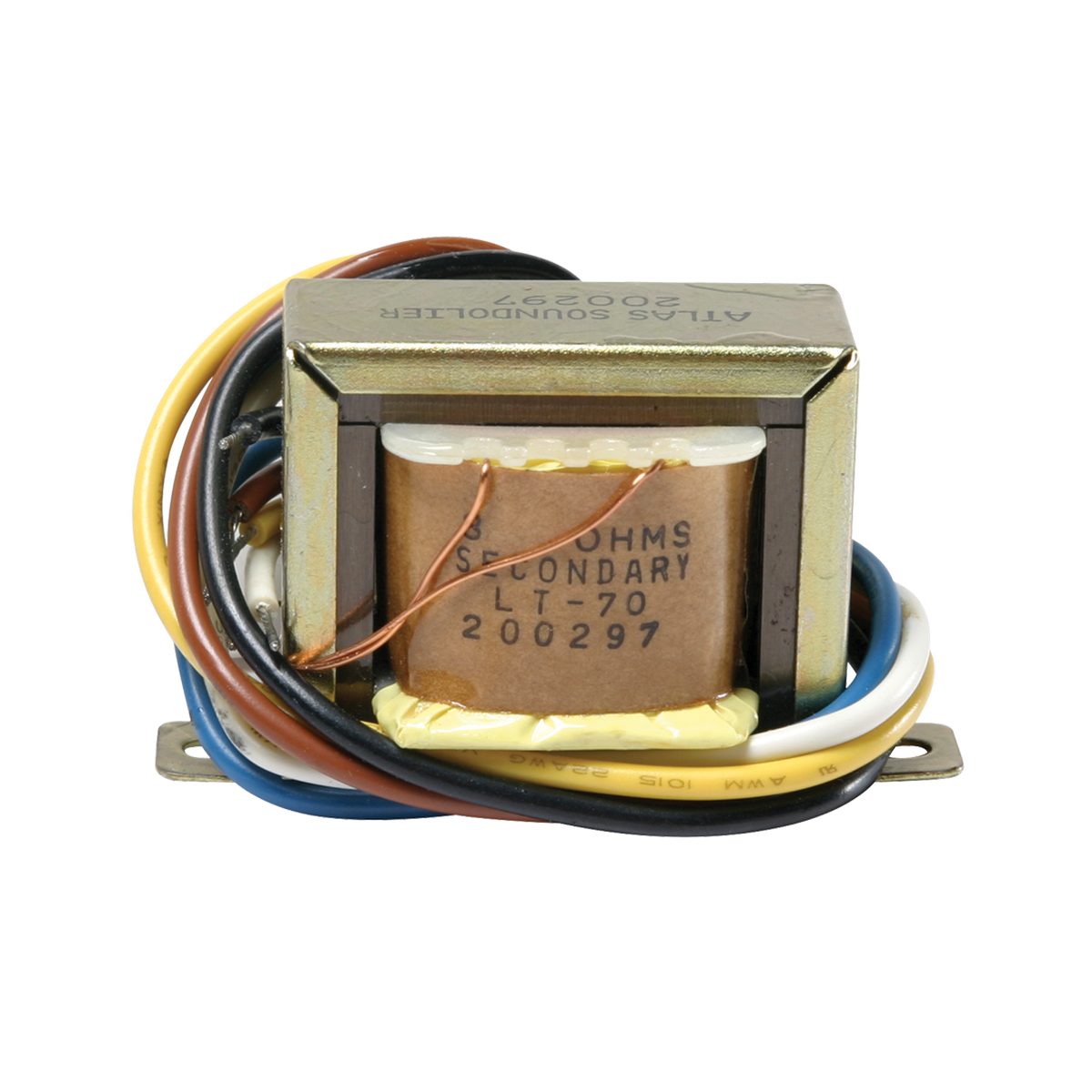

AtlasIED LT70 General Purpose Transformer 70.7V
The AtlasIED LT70 is a general purpose transformer 70.7V. The LT70 General purpose transformer provides economical matching of speakers for most distributed sound applications. The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz. Published frequency response is 100Hz - 10KHz.
AtlasIED lists 70.7V line matching transformer; compact footprint; frequency response 100Hz - 10kHz. It measures 1 3/8" high, 1 3/4" wide, and 3/4" deep. It ships at 0.50 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | LT70 |
|---|---|
| Frequency Response | 100Hz - 10KHz |
| Power Taps | .5, 1, 2 & 5 |
| Power Rating | 5W |
| Primary Voltage | 70.7 |
| Height | 1 3/8" (3.4925 cm) |
| Width | 1 3/4" (4.36626 cm) |
| Depth | 3/4" (1.82626 cm) |
| Shipping Weight | 0.50 lbs (0.23 kgs) |
| Warranty Period | 60 months from date of purchase |
