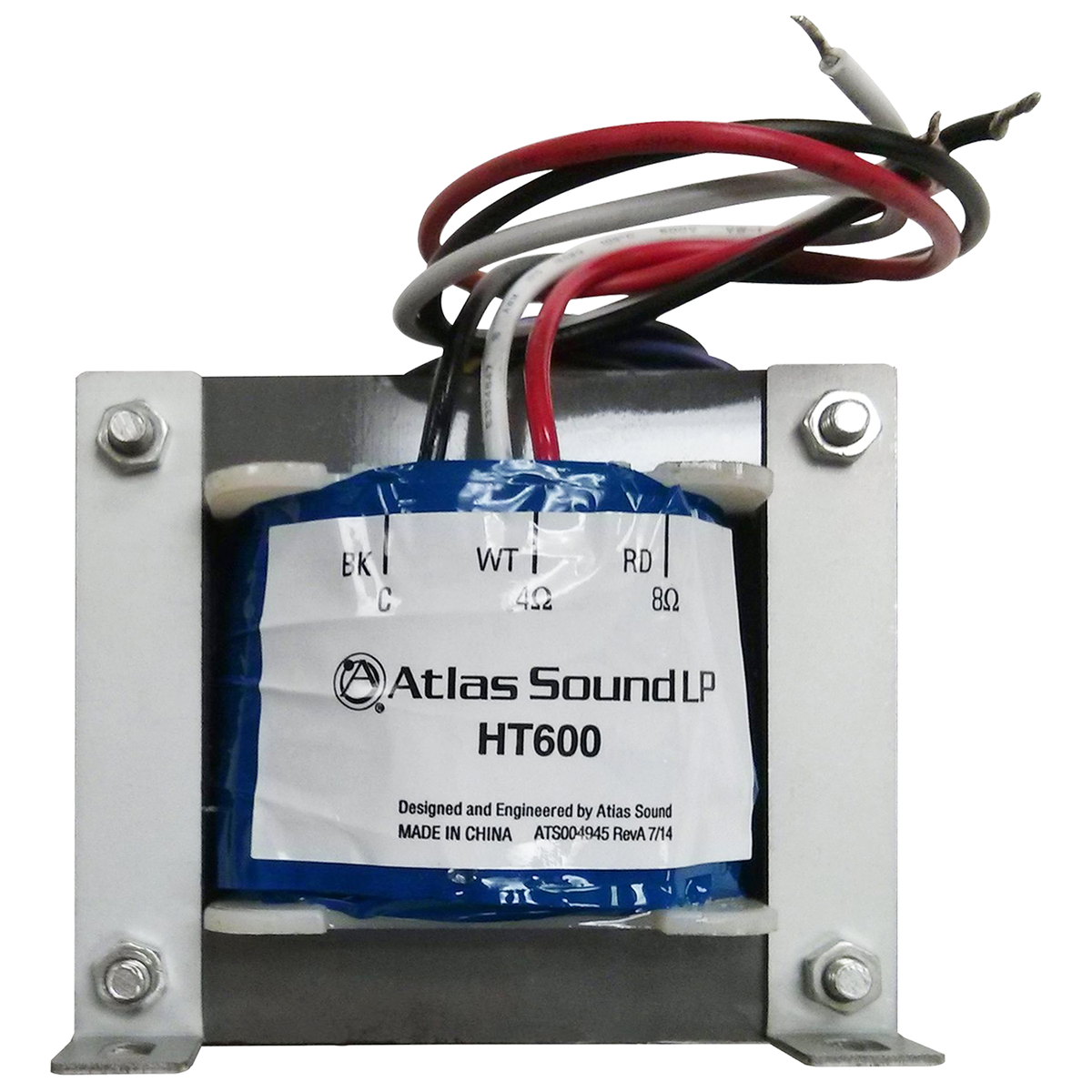

AtlasIED HT600 600-Watt 70.7V Line Transformer

The AtlasIED HT600 is a 600-watt 70.7V line transformer. The HT600 is a high power-handling transformer with minimal insertion loss and wide frequency response that provides quality line matching of speakers in high power sound systems. The unit is constructed using audio grade laminations and offers primary taps at 150, 300, and 600-watts with secondary impedance settings for 4Ω and 8Ω. Published frequency response is 30Hz - 15KHz.

Insertion loss does not exceed 2dB and operates within a frequency range of +1dB from 30Hz - 15kHz. The transformer is designed for external mounting to surfaces other than the speaker. AtlasIED lists constructed using audio grade laminations; frequency response is 30Hz - 15KHz; high power handling; high quality matching transformer with only 2dB insertion loss. It measures 3.08" (7.82cm) high, 3.785" (9.61cm) wide, and 3.49" (8.86cm) deep. It ships at 6.218 lbs (2.83kgs) and carries a manufacturer warranty of 60 months from date of purchase.
