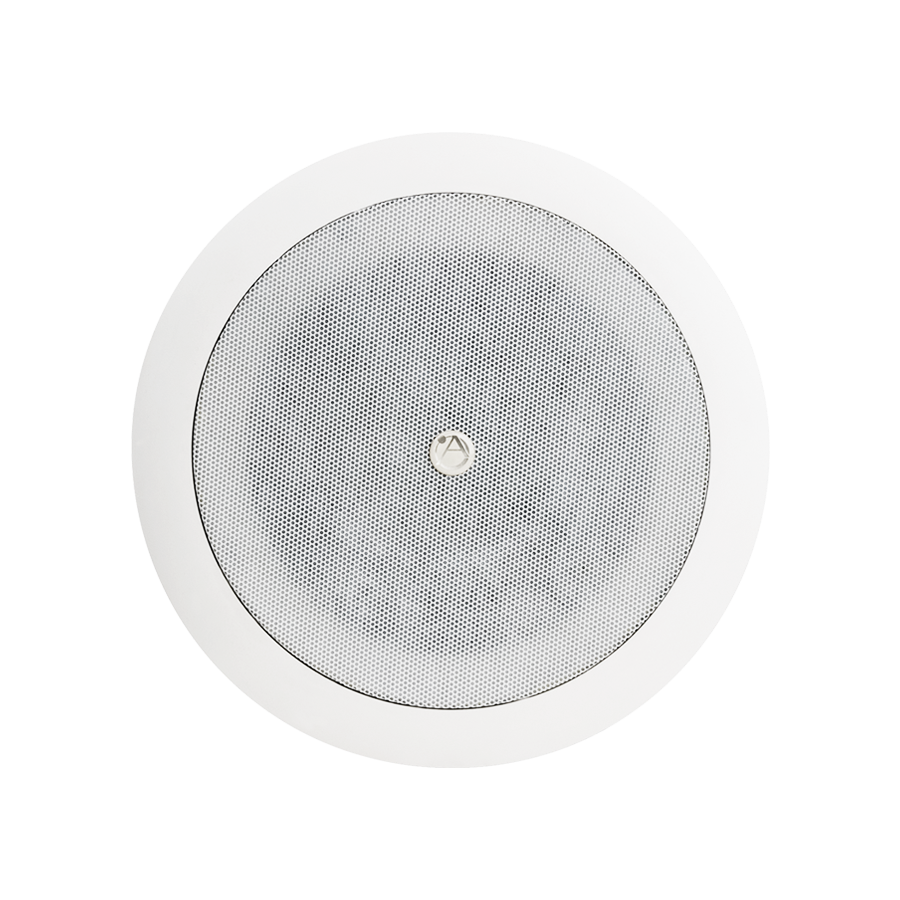

AtlasIED FAP42T-UL2043 4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer, Ported Enclosure, and UL2043

The AtlasIED FAP42T-UL2043 is a 4" coaxial in-ceiling speaker with 16-watt 70/100V transformer, ported enclosure, and UL2043 certification. The FAP42T-UL2043 from AtlasIED meets requirements of UL 2043 for speakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial speaker performance with wide dispersion and easy installation. The driver is a coaxial.

A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. AtlasIED lists easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included); extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure; front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation; perfect companion with the FAPSUB subwoofer system when sub bass is required. It measures 8 7/8" deep. It ships at 12.00 lbs, is certified to UL 1480 & UL 2043, and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberFAP42T-UL2043
Speaker TypeCoaxial
Sensitivity88dB Average
Power Taps1, 2, 4, 8, 16 Watts & 8Ω
Dispersion130°
Depth8 7/8" (22.5425 cm)
Shipping Weight12.00 lbs (5.44 kgs)
Certified to Safety ListingUL 1480 & UL 2043
Warranty Period60 months from date of purchase
