AtlasIED AT10-PA Deluxe Priority, Plate Mounted 70.7V 10W Attenuator w/Priority Relay, 3dB Steps

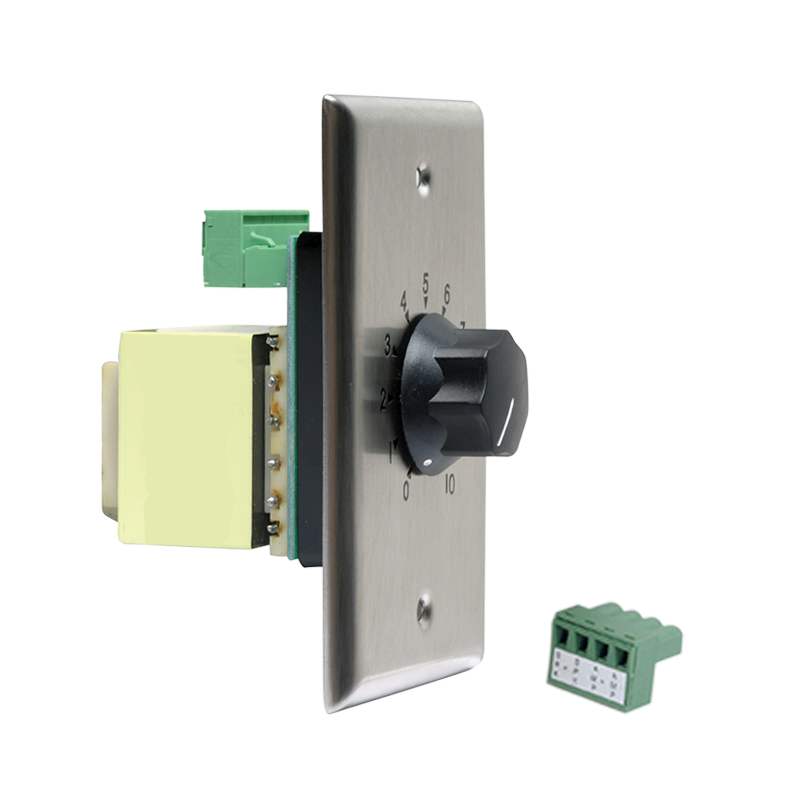

The AtlasIED AT10-PA is a single gang stainless steel, wall mount 10-watt 70V attenuator with priority relay and 3dB steps. Power rating is 10W.

AtlasIED lists mount into most 1-gang E.O. boxes; priority feature compatible with Atlas AA120M amplifiers; priority paging feature by-passes the effect of the attenuator; the SPDT relay is operated with 24 VDC at 10mA. It measures 4 1/2" high, 2 3/4" wide, and 2 1/8" deep. It ships at 1.00 lb, is safety listed to UL 813, 2043, and carries a manufacturer warranty of 60 months from date of purchase.

Part Number	AT10-PA
Plate Size	1 gang
Plate Type	Stainless Steel
Power Rating	10W
Total Attenuation	33 dB
Height	4 1/2" (11.43 cm)
Width	2 3/4" (6.985 cm)
Depth	2 1/8" (5.3975 cm)
Shipping Weight	1.00 lb (0.45 kgs)
Safety Listed	813, 2043
Warranty Period	60 months from date of purchase
