AtlasIED 418-15 Welded and Assembled Desk Top Cabinet, 18 RU

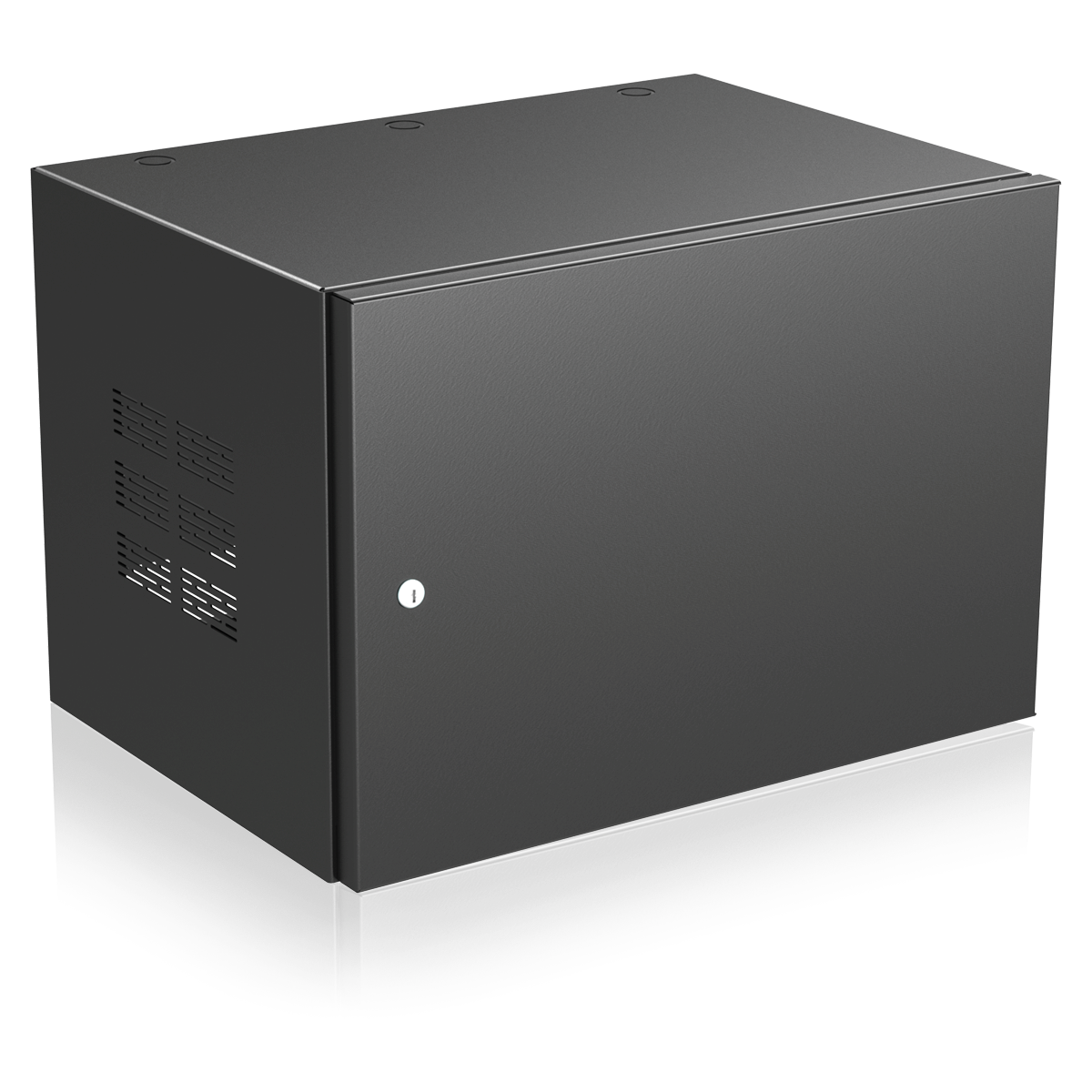

The AtlasIED 418-15 is a welded & assembled desk top cabinet - 18 RU (shown with OPTIONAL front door). This welded assembly provides desk-top access to (19") control and monitor equipment.Model 418-15 is 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel. Model includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD418) with self-tapping screws. It takes up 18RU of rack space.

Inside (usable) dimensions are 17 3/4" W x 14 1/8" D. AtlasIED lists 11-gauge CRS tapped mounting rails; 16-gauge CRS cabinet; 5/8" - 5/8" - 1/2" EIA standard panel mount spacing; 5/8" offset rails for panel mount. It measures 34 3/4" high, 22 5/16" wide, and 15 3/8" deep. It ships at 63.00 lbs and carries a manufacturer warranty of 60 months from date of purchase.
