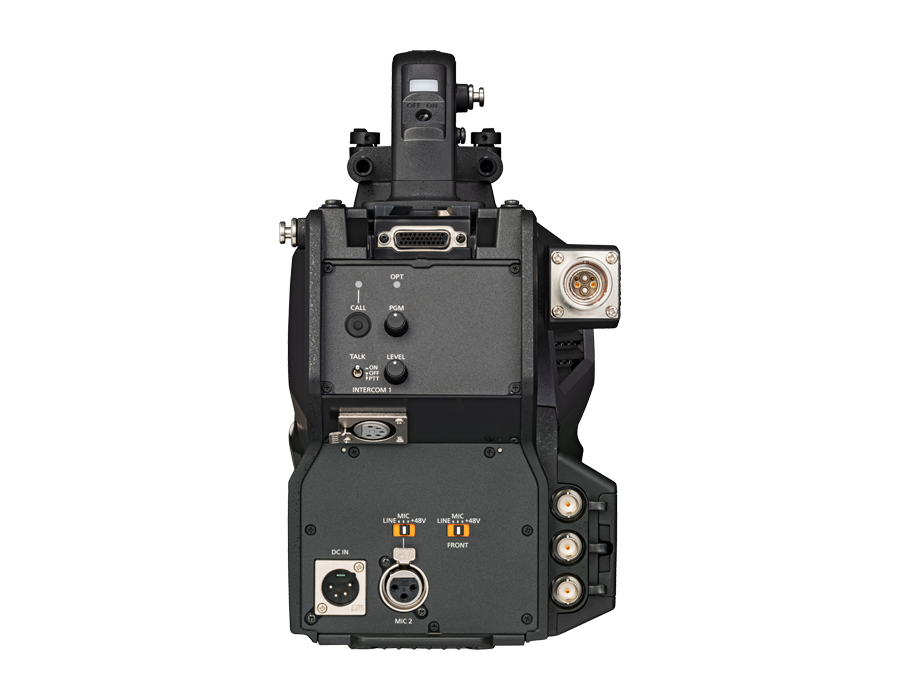

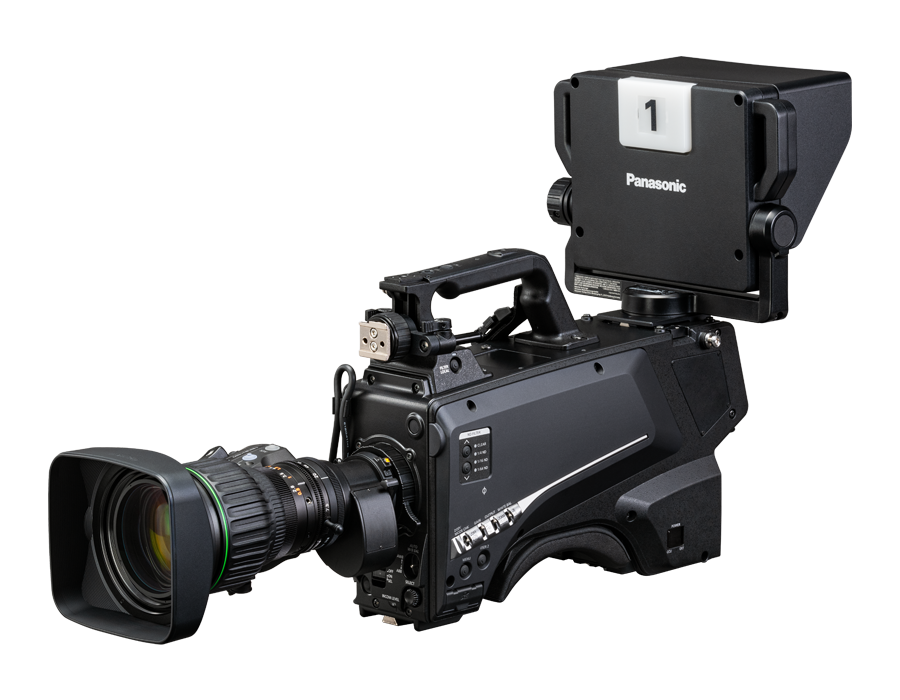

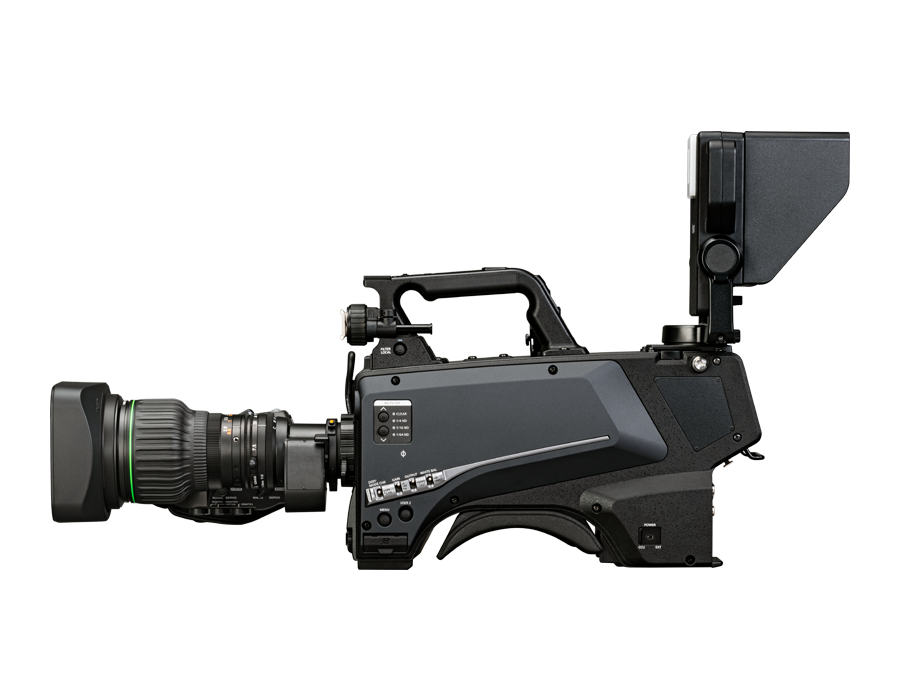

Panasonic AK-HC3900GSJ HD Studio Camera

The AK-HC3900GSJ is Panasonic\'s entry point into its AK studio camera line, built on the same 11.14-megapixel MOS sensor as the flagship AK-UC4000 but priced for houses of worship, corporate AV, and mid-size sports and studio work that do not need native 4K on day one. It ships as an HD camera and stays there until the job calls for more: an AK-SFC391 software key unlocks SMPTE ST 2110 IP operation for CCU-free installs, keeping the initial system cost down without boxing in the upgrade path.

Two HD-SDI outputs plus a switchable trunk/prompter aux terminal cover a standard studio chain, and dual switchable XLR inputs (mic, line, or +48V phantom) handle on-camera audio without an external mixer. At 4.0 kg body-only, it mounts on the same pedestals, pan/tilt heads, and lens systems as the rest of the AK line, so a system integrator can spec HC3900 bodies alongside UC4000 or UCX100 cameras on one CCU platform.

Image Sensor11.14-megapixel MOS
SensitivityF10/F11 High Sensitivity mode, F6/F7 Normal mode (2000 lx, 3200K)
S/N Ratio62 dB or above
Lens Mount2/3-type bayonet
Video Outputs2x HD-SDI (3G/1.5G-SDI, BNC) plus an aux terminal for HD trunk or prompter
Audio / Intercom2x XLR mic/line inputs (switchable, +48V), 5-pin XLR intercom
Dimensions151 x 267 x 369 mm, body only
WeightApprox. 4.0 kg (8.80 lb), body only, excluding accessories
