Panasonic AK-HVF100GJ Color Viewfinder

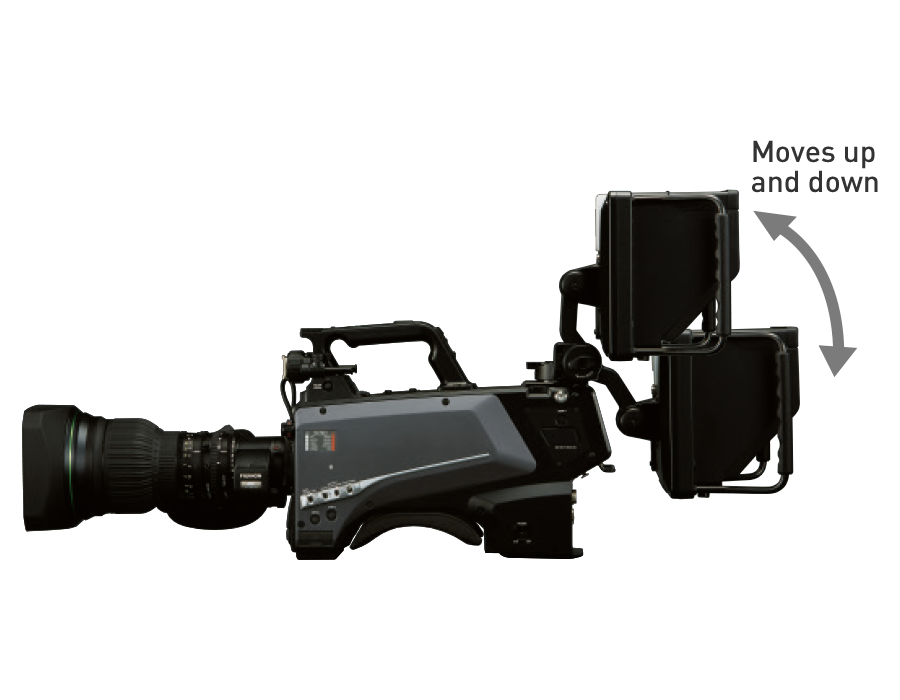

The AK-HVF100GJ is the large-format viewfinder for Panasonic\'s AK studio camera line, running a 22.9 cm full-HD panel with a redesigned tilt mechanism so an operator can angle it for pedestal or shoulder-mounted work. Focus-in-Red and Focus Bar assist functions help pull critical focus on a large sensor, and four assignable function switches put frequently used camera controls at the operator\'s thumb.

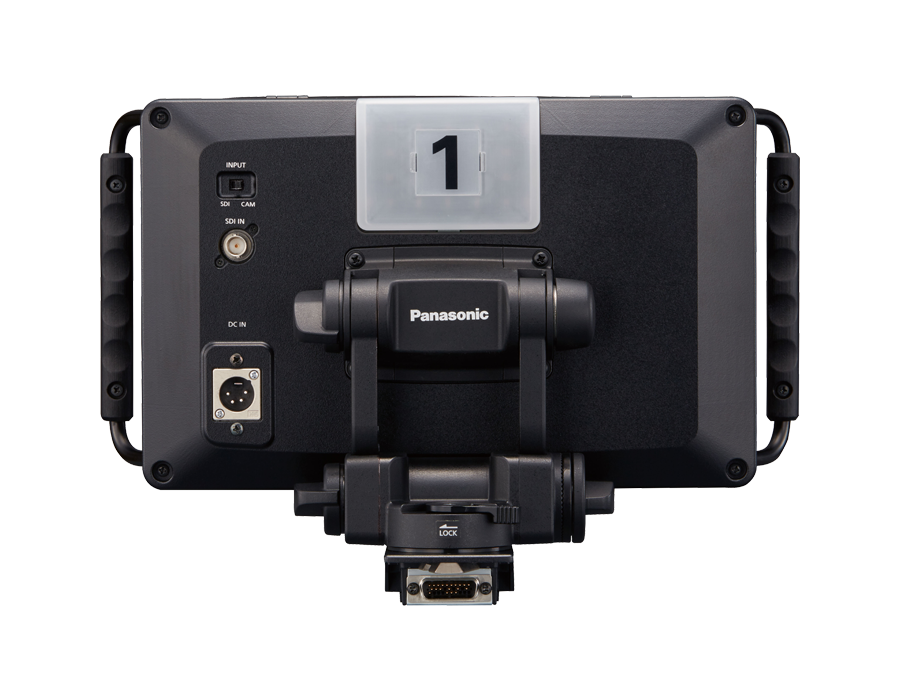

An external HD-SDI input lets the viewfinder double as a return or program monitor when it isn\'t showing camera output, and a DC input allows it to run independent of the camera\'s own power budget. It draws from the camera or an external XLR supply at 12V, and mounts via the same pan/tilt/lift bracket used across the AK-series camera line.
