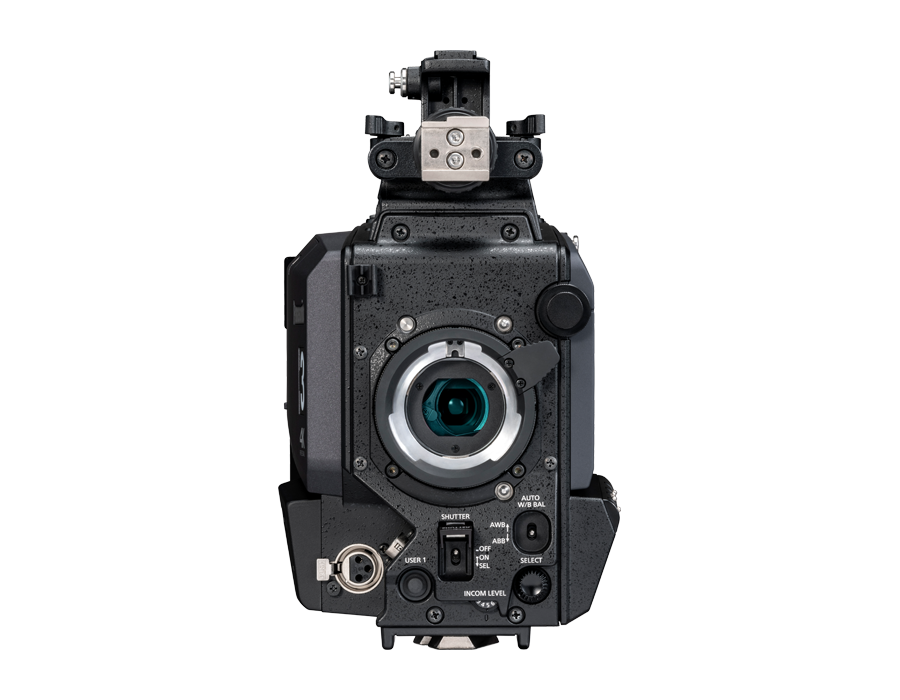

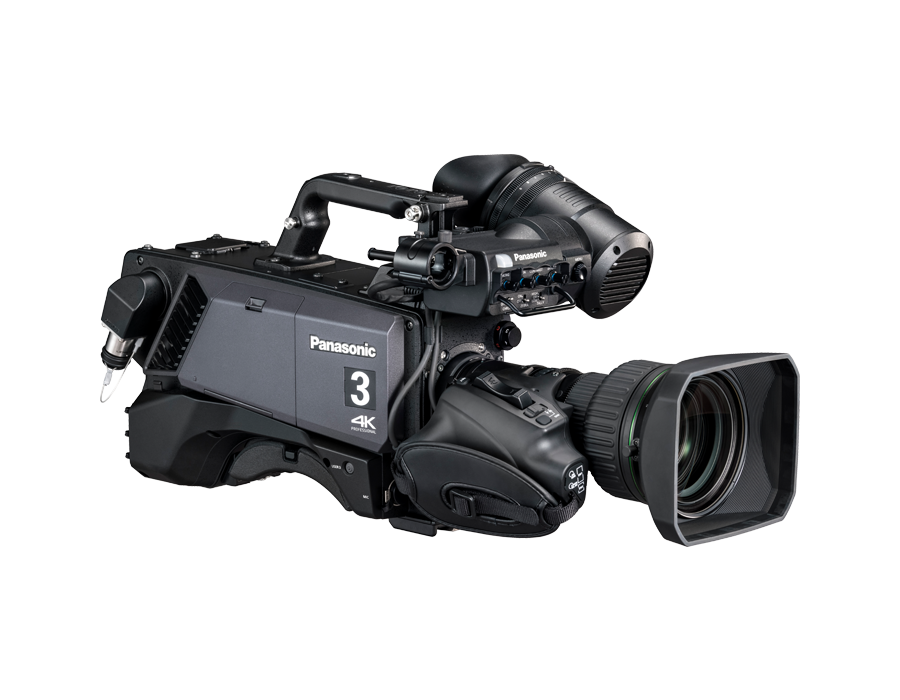

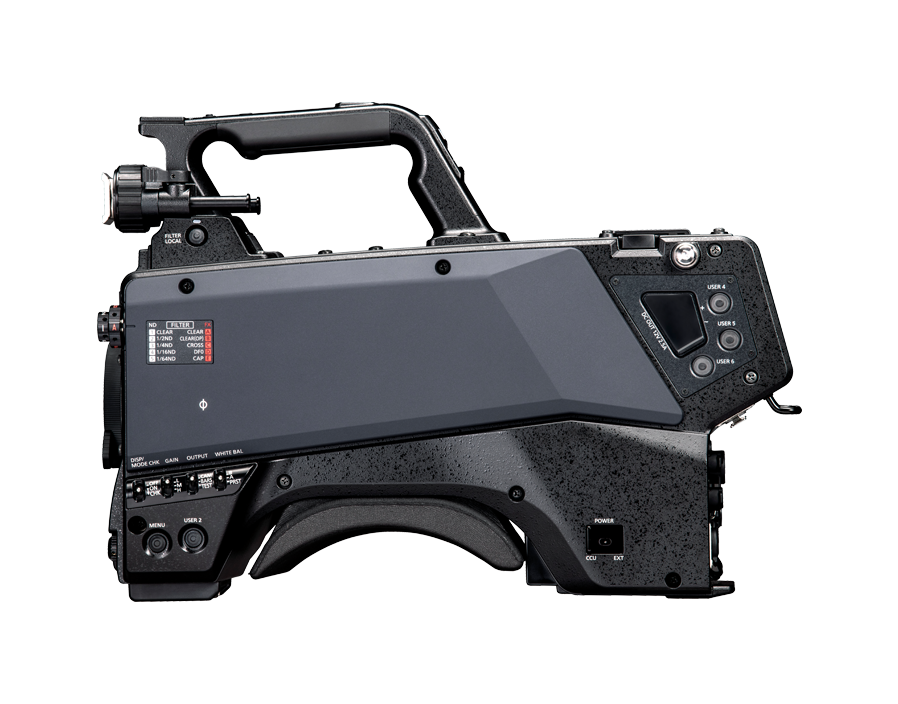

Panasonic AK-UCX100GSJ 4K Studio Camera

The AK-UCX100GSJ is built to run without a separate camera control unit: SMPTE ST 2110, NDI High Bandwidth, and SRT are all native, so it drops straight into an IP studio alongside a switcher and network switch instead of a CCU chain. A 19.29-megapixel sensor drives 2000 TV lines of center resolution in 4K and 1000 in HD, with dual SFP28 ports for redundant fiber and a pair of 12G/6G/3G/1.5G-SDI outputs for houses that still run baseband.

On the audio side, two switchable XLR mic inputs and dual intercom XLR terminals keep talent and crew audio on the camera body, and a 2/3-type bayonet mount takes standard broadcast glass. At 4.55 kg body-only, it is built for the same pedestal and lens ecosystem as the rest of the AK line, so a studio can mix UCX100 bodies with CCU-based UC4000 or HC3900 cameras on one production.
