Panasonic AK-UBX100 4K Multi-Purpose Camera

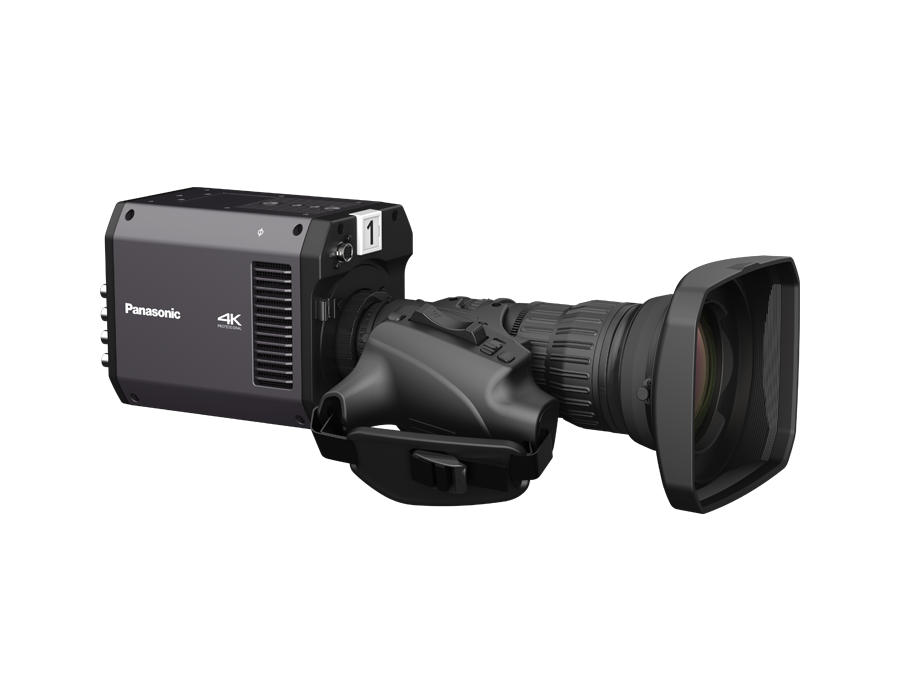

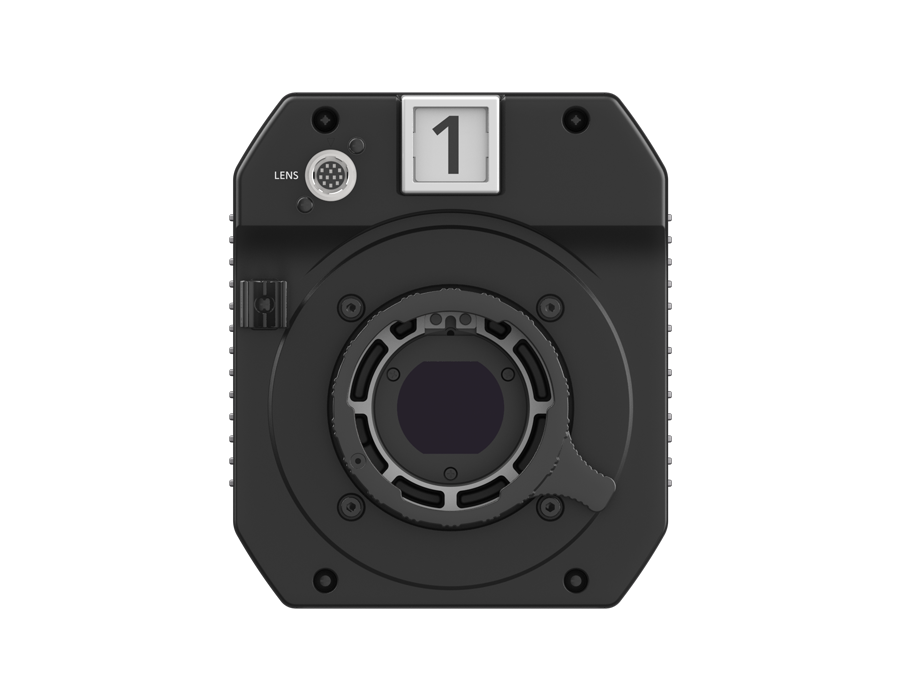

The AK-UBX100 packages the AK-UCX100\'s 19-megapixel 4K sensor into a compact box-camera body instead of a full studio camera chassis, for installs where the camera is fixed in place rather than operated on a pedestal: robotic mounts, stage rigging, or multi-camera arrays behind a studio wall. A 2/3-type bayonet mount takes the same broadcast lenses as Panasonic\'s other AK cameras, so a facility can standardize glass across box and studio positions.

It shares the UCX100\'s 2000 TV line UHD resolution and 62 dB S/N ratio, and runs on 12V DC at as little as 40W, making it practical to power over a run without a full rack of CCU gear nearby. At 1.9 kg and 118 x 140 x 175 mm body-only, it is built to disappear into a rig rather than dominate it.
