Panasonic AK-UCU700PSJ Camera Control Unit

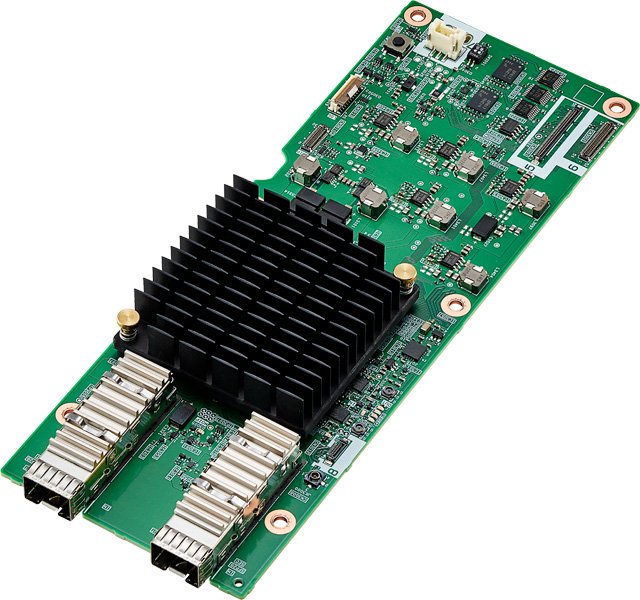

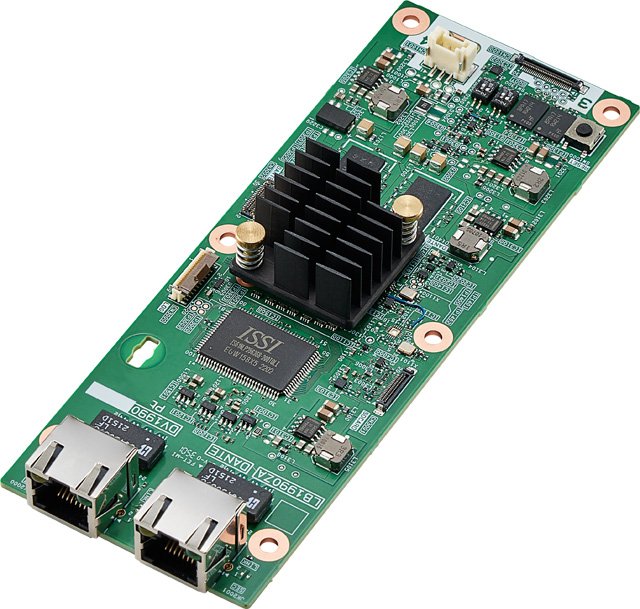

The AK-UCU700PSJ is the entry CCU for Panasonic\'s AK studio camera system, built to run an UC4000, HC3900, or UCX100 camera head over standard optical cable out to roughly 2,000 meters. It ships as an HD/4K SDI unit with simultaneous HDR and SDR output, and the IP side is modular: SMPTE ST 2110, Dante audio, and NDI/SRT streaming each activate with a separate option board rather than a full unit swap, so a facility can add IP capability as budget and workflow demand it.

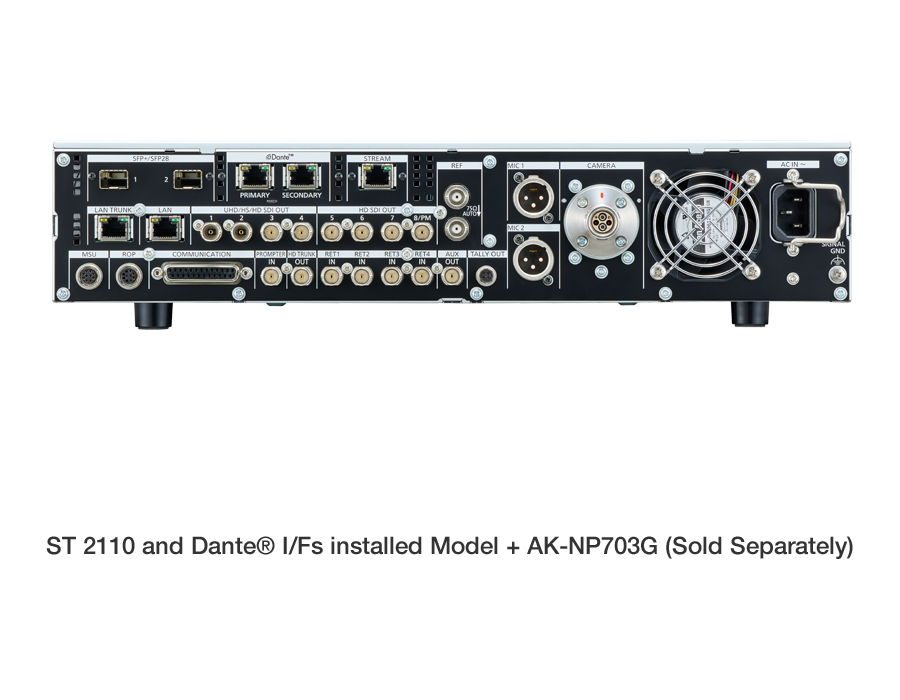

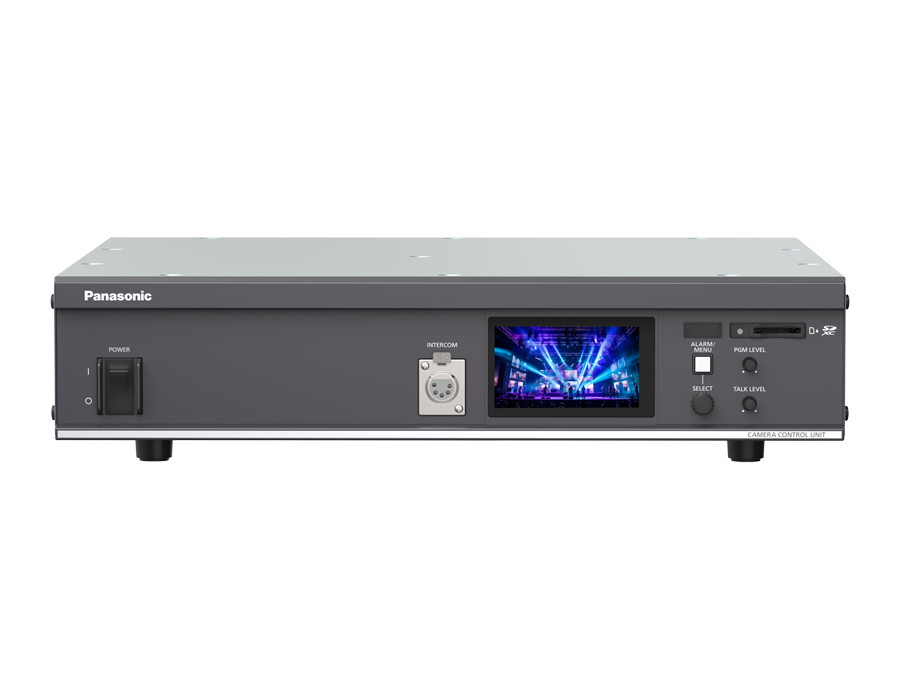

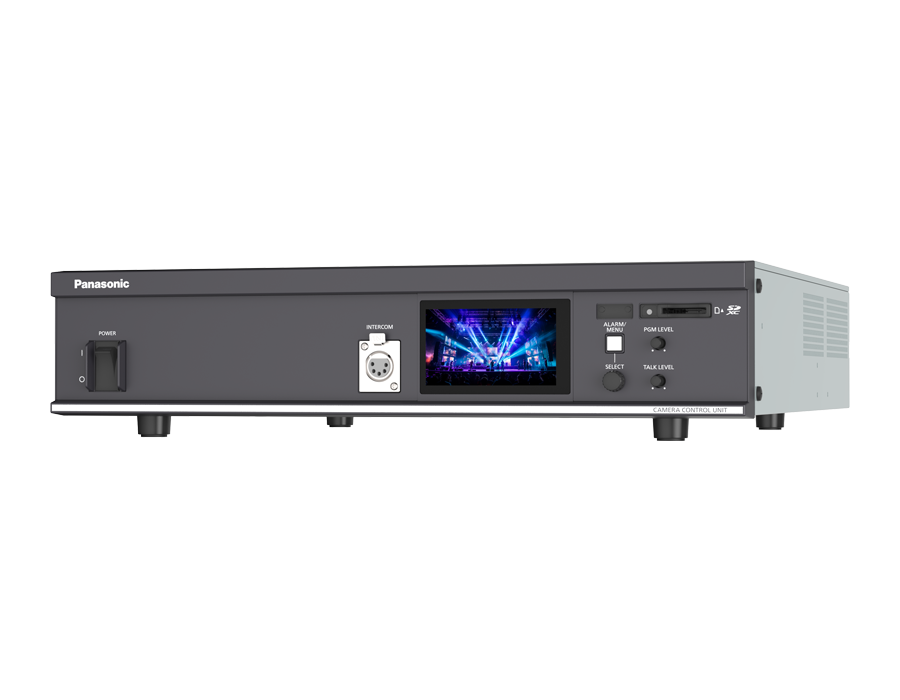

A 3.5-inch color touch panel puts camera setup and monitoring at the CCU rather than requiring a laptop, and eight standard outputs including two 12G-SDI feeds cover a full studio chain out of the box. High-speed shooting reaches 4x in HD and 2x in 4K for slow-motion replay work, and dual SFP28 cages give the unit a path to redundant fiber once the ST 2110 option is installed.
